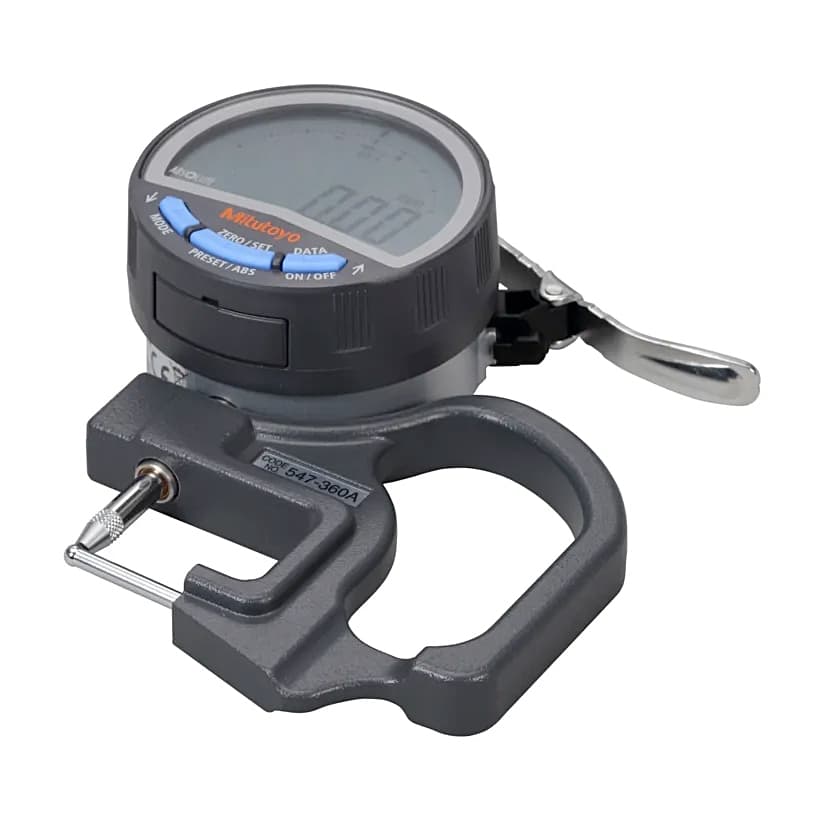

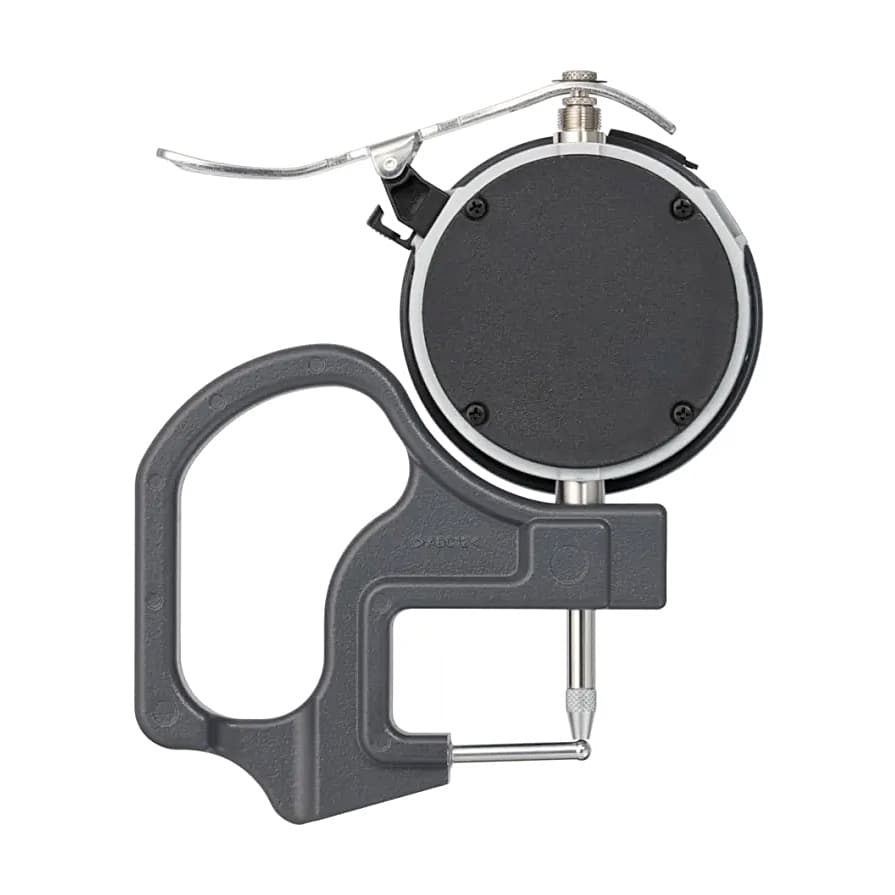

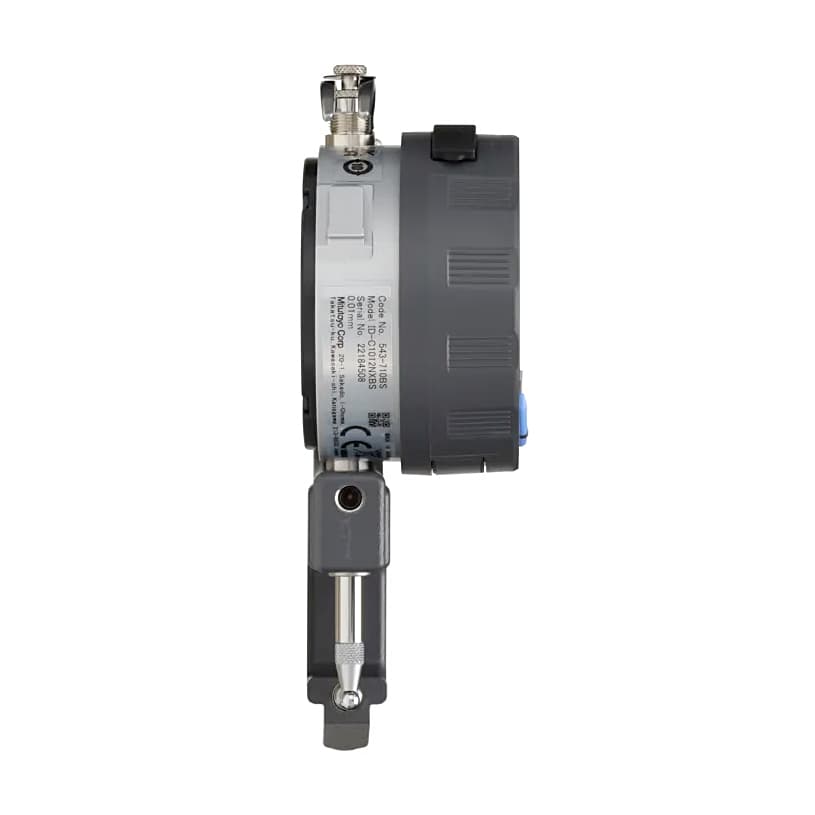

Mitutoyo 0 - 10 mm Absolute Digital Pipe Thickness Gauge, 547-360A
Roll over the image to zoom in
Key Features
- Product Type: Thickness Gauge
- Weight: 230 g
- Range (mm): 0 - 10 mm
- Accuracy: ±20 μm
- Resolution (Digital Step): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹31,081 (Incl. of all taxes)
₹26,340 + ₹4,741 GST (18%)
MRP was MRP ₹35,120
Save 25%
7 Business Days
1
90173029
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
Features:
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- Electrostatic capacitance type absolute linear encoder
- Functions with indicator ID-C No.543.0-710.0BS
Functions:
- ABS / INC (INC ZERO)
- Analog bar resolution selection
- Analog bar resolution switchable
- Auto Power OFF setting
- Calculation function (with formula)
- Calibration warning function
- Counting direction switchable
- Customizing keys
- DATA/HOLD
- Digimatic data output
- Digimatic S1 Bidirectional interface
- Function lock
- GO/±NG judgement
- Inch/Metric switchable
- MAX/MIN/RANGE
- ON/OFF
- Alarm (Low Voltage, Setting Errors, Sensor Error, Display Overflow a.s.o.)
Package Content:
- Digital Thickness Gauge
- CR2023 battery
- Battery lid opener
- Spindle lifting lever 21AZB149
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Digital Thickness Gauge |
|---|---|
| Range (mm) | 0 - 10 mm |
| Accuracy | ±20 μm |
| Resolution (Digital Step) | 0.01 mm |
| Display | LCD, Character Height 11 mm |
| Max. Measuring Depth | 20 mm |
| Measuring Force | <1.5 |
| Protection | IP42 |
| Battery Life | Continuous Use: Approx. 2700h |
| Power Supply | 1x Battery CR2032 (3V) |
