Mitutoyo 0 - 10 mm Special Dial Indicator with Lug Back, 2048A-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 144 g
- Type of Product: Dial Indicator
- Range (mm): 0 - 10 mm
- Graduation (mm): 0.01 mm
- Dial Reading: ±0 - 100
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,629 (Incl. of all taxes)
₹7,313 + ₹1,316 GST (18%)
MRP was MRP ₹9,750
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Continuous Scale, With Coaxial Revolution Counter, Adjustable Hand & Jeweled Bearing
- The hand position can be adjusted independently of the position of the spindle by rotating the top knob.
- No through screw-hole on the frame for high dust resistance.

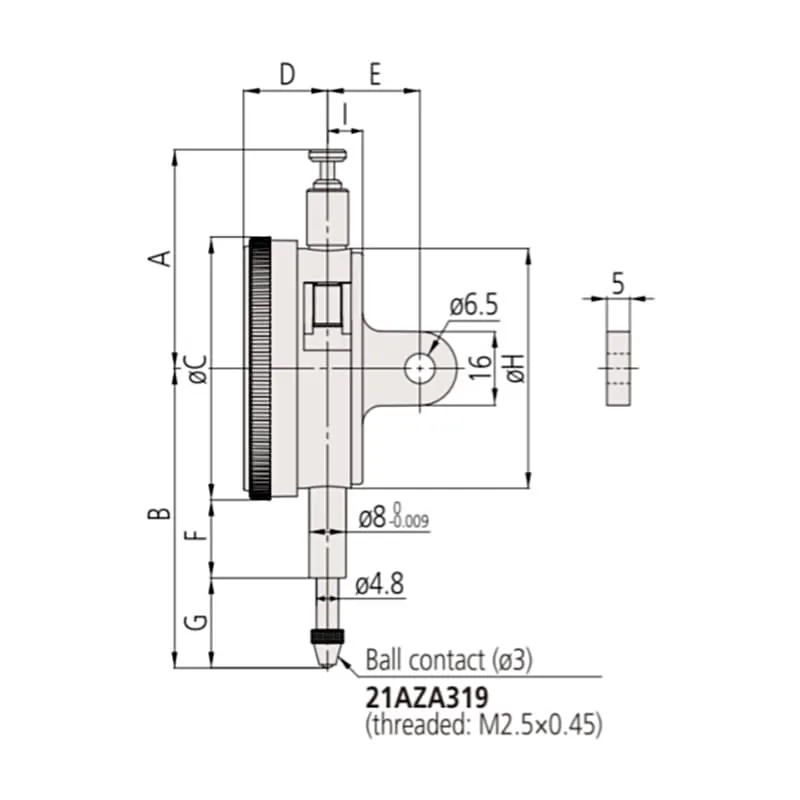

Dimension Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 10 mm |
| Rev (mm) | 1 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indication Error (μm) | 5μm (1/10 Rev) / 9μm (1/2 Rev) / 10μm (1 Rev) / 15μm (Measuring Range) |
| MPE Hysteresis | 3μm |
| MPE Repeatability (μm) | 3μm |
| Dial Reading | ±0 - 100 |
| Measuring Force (N) | 1.4 or less |
