Mitutoyo 0 - 150 mm Hook End Vernier Depth Gauge with Fine Adjustment, 527-411
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,558 (Incl. of all taxes)
₹9,795 + ₹1,763 GST (18%)
MRP was MRP ₹13,060
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights

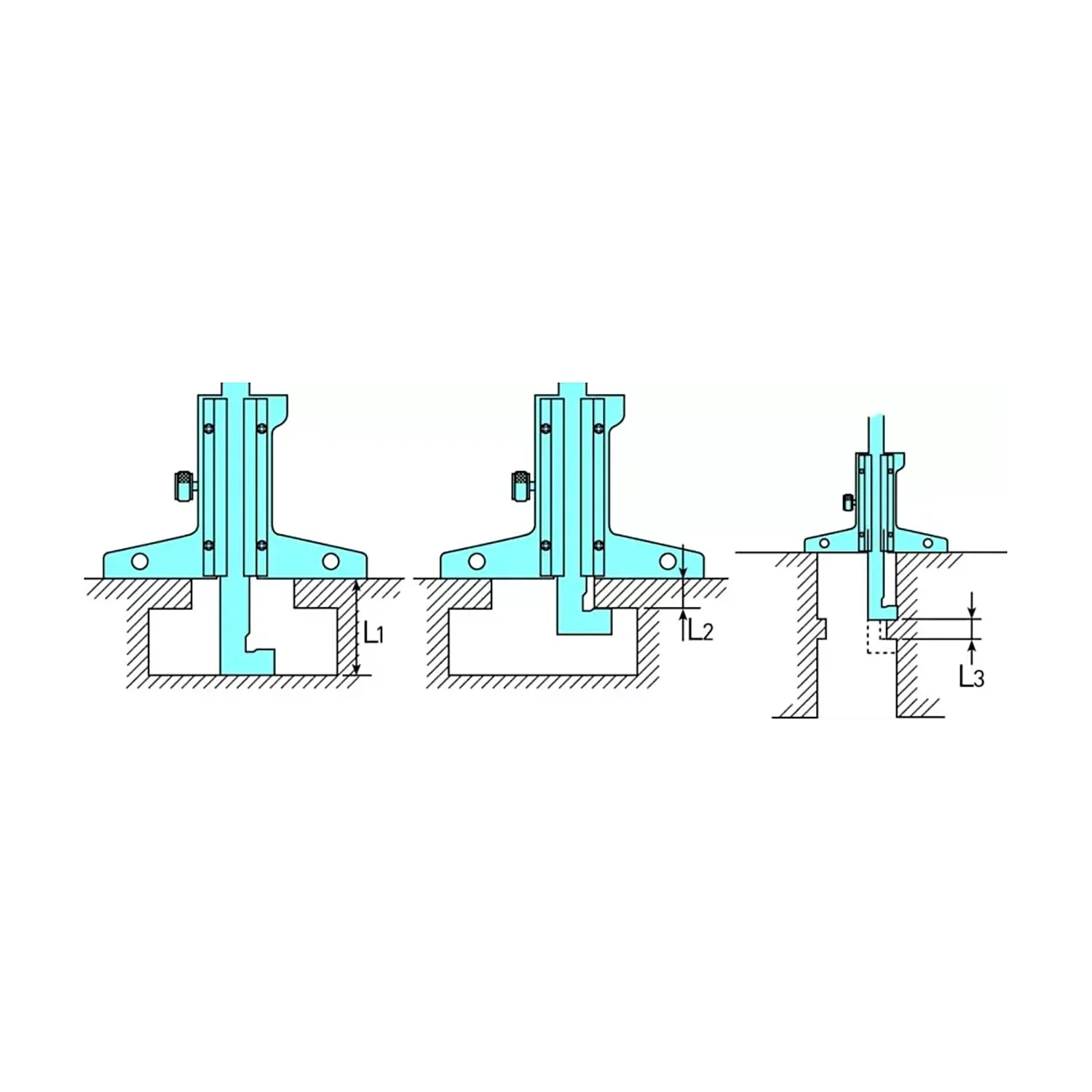

- The end of the beam is hook-shaped so you can take depth and thickness measurements of a projected portion or lip in a hole, as well as standard depth measurements.
- Its base and measuring faces are hardened and micro-lapped for robustness.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Vernier Depth Gauge |
|---|---|
| Range (mm) | 0 - 150 mm |
| Depth Range | 10 - 150 mm |
| Graduation (mm) | 0.02 mm |
| Base (WxT) | 100 x 6.5 mm |
| Max. Permissible Error EMPE (mm) | ±0.03 mm |
