Mitutoyo 0 - 200 mm Hook Type Vernier Caliper with Fine Adjustment, 536-172
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,488 (Incl. of all taxes)
₹28,380 + ₹5,108 GST (18%)
MRP was MRP ₹37,840
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Dimension in inside measurement.
- Inside measuring face is Flat.
- Allows measurement of stepped inside diameter section of cylinders.
- This Vernier Caliper is equipped with a fine-adjustment wheel to enable precise feed and adjustment.
- Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.

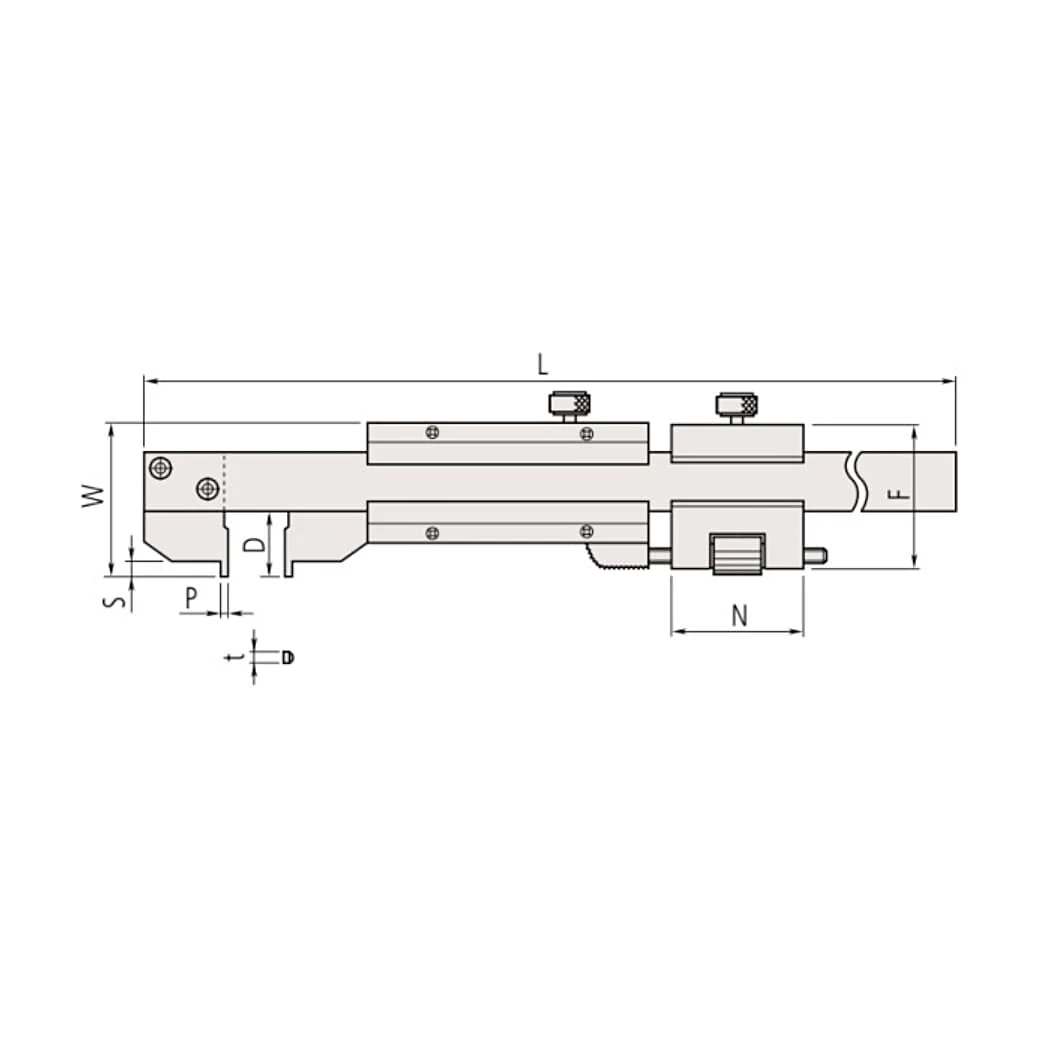

Dimensions Measurement (mm)
 |
| D: 12 mm F: 28.5 mm L: 320 mm N: 20 mm P: 1 mm S: 4 mm t: 3.5 mm W: 28 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 200 mm |
|---|---|
| Max. Permissible Error (mm) | ±0.03 mm (EMPE / SMPE) |
| Graduation (mm) | 0.02 mm |
