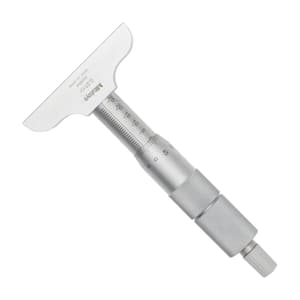

Mitutoyo 0 - 300 mm Depth Micrometer with Interchangeable Rods (63.5 mm Base Width), 129-152
Roll over the image to zoom in
Key Features
- Product Type: Depth Micrometer
- Weight: 600 g
- Range (mm): 0 - 300 mm
- Base (W x T): 63.5 x 16 mm
- Number of Rods: 12 Pcs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,178 (Incl. of all taxes)
₹14,558 + ₹2,620 GST (18%)
MRP was MRP ₹19,410
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This interchangeable rod type micrometer can be used for wide range measurements.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Ø4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
- The ratchet stop provides constant measuring force.
- Measuring rod lock.
Package Content:
- 1x Depth Micrometer
- 2x Spanner (301336, 04GAA274)
- 1x Hex-spanner (202863)
- 12x Interchangeable Rods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 300 mm |
|---|---|
| Base (W x T) | 63.5 x 16 mm |
| Number of Rods | 12 Pcs |
| Flatness Base | 1.3 μm |
| Flatness Rod | 0.3 μm |
| Graduation | 0.01 mm |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Parallelism base/rod | 10 μm |
| Spindle Pitch | 0.5 mm |
| Zero Point Errors of Rods | ±6μm |
| Base | Hardened Tool Steel |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble and Sleeve Satin Chrome Finish, Ø 18 mm |
