Mitutoyo 0 - 300 mm Vernier Caliper with Thump Grip, 531-103
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,664 (Incl. of all taxes)
₹9,885 + ₹1,779 GST (18%)
MRP was MRP ₹13,180
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- The slider moves only when the spring-loaded thumb grip is depressed.
- Allows step measurement.
- Hardened stainless steel construction with satin chrome finish, for protection of caliper.
- Four-way measurement capability for outside dimension, inside dimension, depth and step measurements
- Vernier sliding scale moves only when spring loaded thumb clamp is depressed, for ease of measurement
- Raised sliding surfaces for preventing defacement and wear of scale graduations
- Meets Federal Accuracy Specifications GGG-C-111B

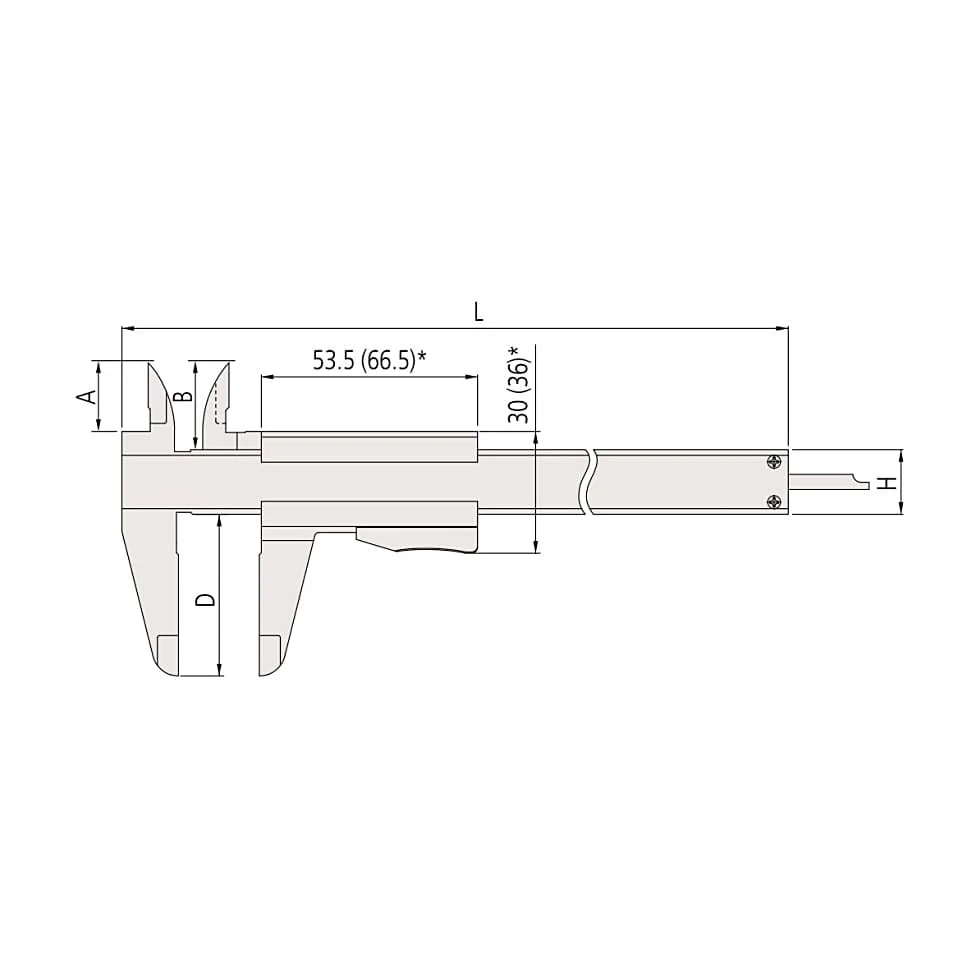

Dimensions Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 300 mm |
|---|---|
| Max. Permissible Error (mm) | ±0.08 mm (EMPE - Outside Measurement / SMPE - Inside Measurement) |
| Graduation (mm) | 0.05 mm |
| Jaw Thickness | 3.8 mm |
| Depth Bar | Blade |
