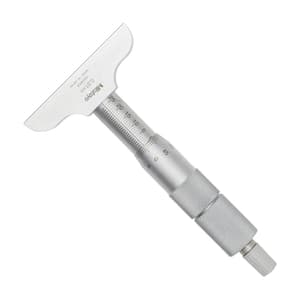

Mitutoyo 0 - 4 inch Depth Micrometer with Interchangeable Rods (2.5 inch Base Width), 129-127
Roll over the image to zoom in
Key Features
- Product Type: Depth Micrometer
- Weight: 310 g
- Range (Inches): 0 - 4 inch
- Base (W x T): 2.5 x 0.63 inch
- Number of Rods: 4 Pcs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,293 (Incl. of all taxes)
₹7,028 + ₹1,265 GST (18%)
MRP was MRP ₹9,370
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This interchangeable rod type micrometer can be used for wide range measurements.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:

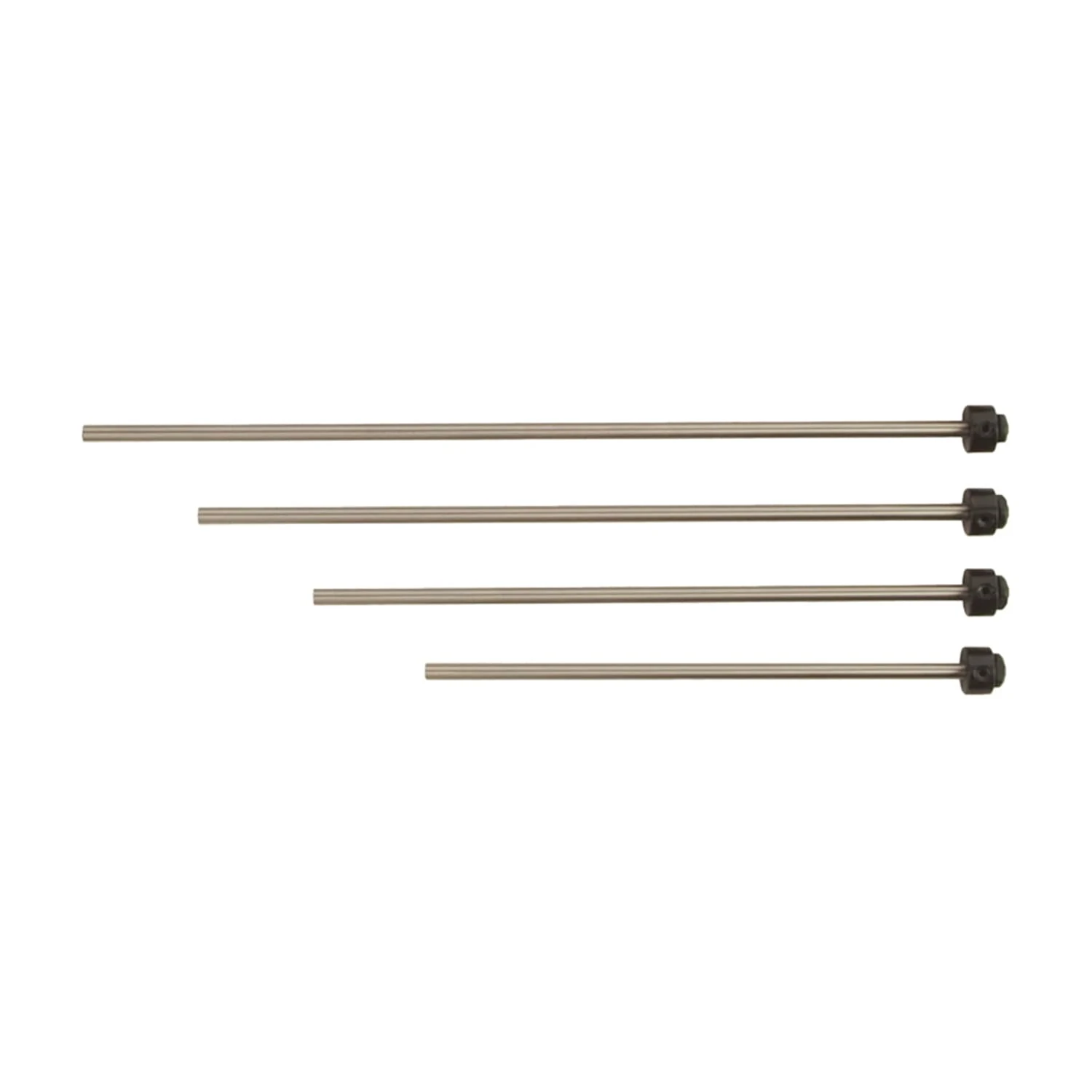

- ∅4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurements.
- The ratchet stop provides a constant measuring force.
- Measuring rod lock.
Package Content:
- 1x Depth Micrometer
- 2x Spanner (301336, 04GAA274)
- 4x Hex-spanner (202863)
- 4x Interchangeable Rods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 4 inch |
|---|---|
| Base (W x T) | 2.5 x 0.63 inch |
| Number of Rods | 4 Pcs |
| Graduation | 0.001 inch |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Spindle Pitch | 0.5 mm |
| Zero Point Errors of Rods | ±4μm (0 - 150 mm) / ±6μm (0 - 300 mm) |
| Parallelism Base/rod | (4+ L/50) μm L=max. measuring length (mm) |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble & Sleeve Satin Chrome Finish Ø18 mm |
| Base Material | Hardened Tool Steel |
