Mitutoyo 0 - 4 mm Dial Indicator with Flat Back, 1003AB

Shop all Mitutoyo

SKU: ME.DI.DI.00344

Model: 1003AB

Roll over the image to zoom in

Visit Mitutoyo Store

Key Features

See all product information

ToolBuy Benefits

₹8,116 (Incl. of all taxes)

₹6,878 + ₹1,238 GST (18%)

MRP was MRP ₹9,170

Save 25%

1 Business Days

1

90318000

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

  • Compact dial indicators with bezel diameters of 31 or 36 mm for restricted-space applications in gaging jigs.

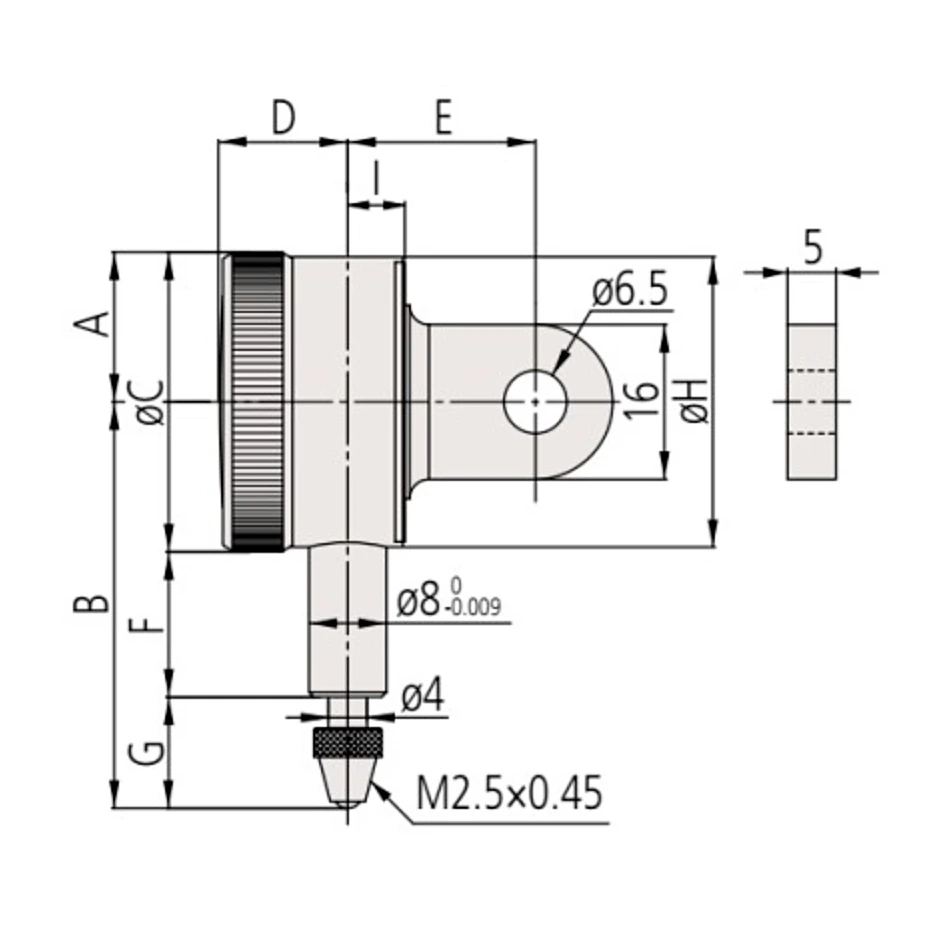

Dimension Measurement (mm):

  • A: 18 mm
  • B: 40.3 mm
  • C: 36 mm
  • D: 13.5 mm
  • E: 15 mm
  • F: 9.5 mm
  • G: 12.8 mm
  • H: 32 mm
  • I: 6 mm


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Mitutoyo 0 - 4 mm Dial Indicator with Flat Back, 1003AB
Type of ProductDial Indicator
Range (mm)0 - 4 mm
MPE Indication Error8μm (1/10 Rev), 10μm (1/2 Rev), 11μm (1 Rev), 13μm (Measuring Range)
MPE Hysteresis4μm
MPE Repeatability3μm
Dial Reading0-50-0
Measuring Force1.4 or less
Graduation (mm)0.01 mm
