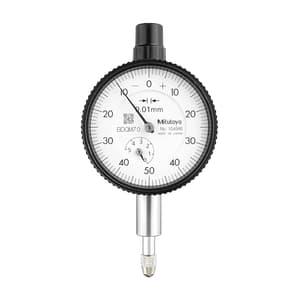

Mitutoyo 0 - 5 mm Dial Indicator with Flat Back, 1045AB
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (mm): 0 - 5 mm
- Graduation (mm): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,602 (Incl. of all taxes)
₹3,900 + ₹702 GST (18%)
MRP was MRP ₹5,200
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Balance scale
- Compact dial indicators ideal for restricted-space applications in gaging jigs.
- Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
- The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.
- Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
Dimension Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 5 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indication Error | 8μm (1/10 Rev) / 10μm (1/2 Rev) / 11μm (1 Rev) / 13μm (Measuring Range) |
| MPE Hysteresis | 4μm |
| MPE Repeatability | 3μm |
| Dial Reading | 0-50-0 |
| Measuring Force (N) | 1.4 or less |
