Mitutoyo 0 - 5 mm Waterproof Dial Indicator with Flat Back, 2044AB-60

Shop all Mitutoyo

SKU: ME.DI.DI.00407

Model: 2044AB-60

Roll over the image to zoom in


Key Features

  • Product Type: Dial Indicator
  • Weight: 138 g
  • Type of Product: Dial Indicator
  • Range (mm): 0 - 5 mm
  • Graduation (mm): 0.01 mm
  • Dial Reading: ±0 - 100
See all product information

ToolBuy Benefits

₹7,151 (Incl. of all taxes)

₹6,060 + ₹1,091 GST (18%)

MRP was MRP ₹8,080

Save 25%



1 Business Days

1

90318000

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

  • Continuous Scale, Waterproof & with a damper at the top rest point.
  • Water-proof type dial indicators having a bezel with an outside diameter of 57 mm.
  • O-rings and rubber bellows are used to prevent water and oil penetration.
  • The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools.
  • The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
  • A carbide contact point is used.
  • Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

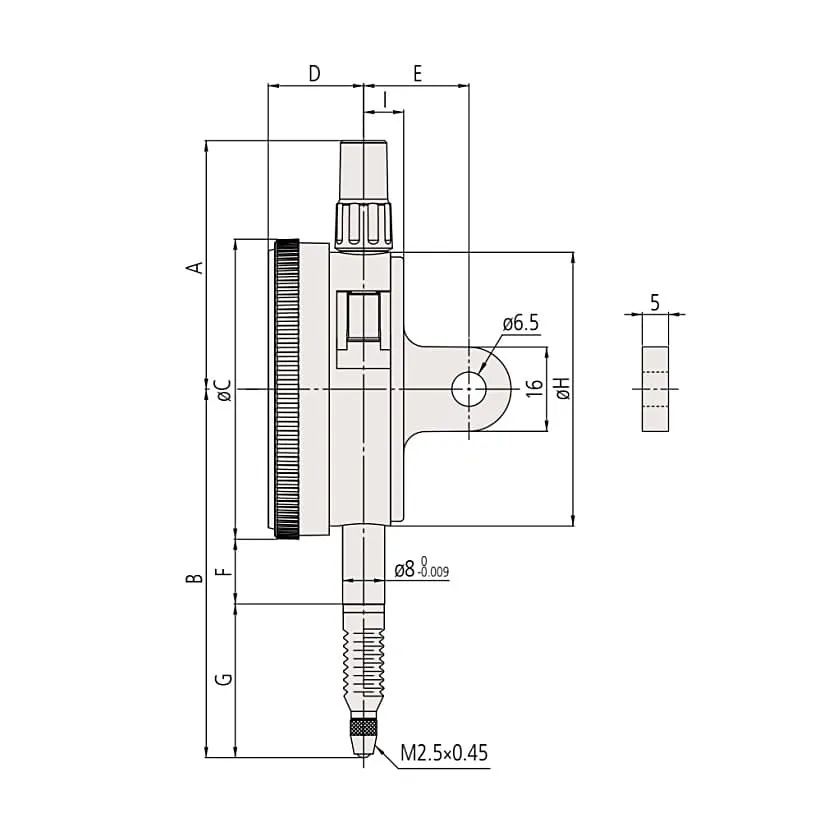

Dimension Measurement (mm):

  • A: 47.2 mm
  • B: 70 mm
  • C: 57 mm
  • D: 18.1 mm
  • E: 20 mm
  • F: 12.3 mm
  • G: 29.2 mm
  • H: 52 mm
  • I: 7.6 mm


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Mitutoyo 0 - 5 mm Waterproof Dial Indicator with Flat Back, 2044AB-60
Type of ProductDial Indicator
Range (mm)0 - 5 mm
Rev (mm)1 mm
Graduation (mm)0.01 mm
MPE Indication Error (μm)5μm (1/10 Rev) / 9μm (1/2 Rev) / 10μm (1 Rev) / 12μm (Measuring Range)
MPE Hysteresis3μm
MPE Repeatability (μm)3μm
Dial Reading±0 - 100
Measuring Force (N)2.5 or less
IP RatingIP64
