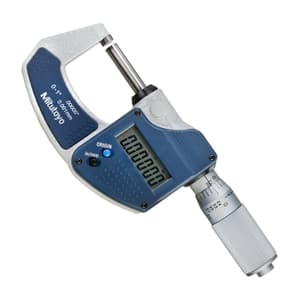

Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Friction Thimble, 293-832-30

Shop all Mitutoyo

SKU: ME.MI.EL.00192

Model: 293-832-30

Roll over the image to zoom in


Key Features

  • Product Type: Electronic Micrometer
  • Weight: 275 g
  • Range (Inches): 0 - 1 inch
  • Range (mm): 0 - 25.4 mm
  • Measuring Force: 5 - 10 N
  • Power Supply: 1 Battery SR-44
See all product information

ToolBuy Benefits

₹12,178 (Incl. of all taxes)

₹10,320 + ₹1,858 GST (18%)

MRP was MRP ₹13,760

Save 25%



7 Business Days

1

90173010

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A friction thimble guarantees repeatable measurement.


Features:

  • Provided only with zero set and in/mm (inch/metric models only) keys.
  • A ratchet stop or friction thimble for a constant measuring force.
  • Measurement readout with large characters on the LCD.
  • No spindle clamp. No data output.
  • Supplied in fitted plastic case.


Functions:

  • Auto Power OFF after 20 min. non use
  • Function lock
  • Low voltage alarm
  • ORIGIN


Package Content:

  • Digital Micrometer
  • Spanner,
  • SR44 battery,
  • Certificate of inspection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Friction Thimble, 293-832-30
Range (Inches)0 - 1 inch
Range (mm)0 - 25.4 mm
Maximum Permissible Error J MPE±0.0001"
Parallelism0.00008"
Flatness0.000012"
Measuring Force5 - 10 N
Digital Step0.00005" / 0.001 mm
DisplayLCD, Character Height 7.5 mm
Power Supply1 Battery SR-44
Battery LifeApprox. 2.4 years
Measuring FaceCarbide-tipped, Micro-lap Finish
Measuring SpindleØ6.35 mm, Spindle Pitch 0.635 mm
ScaleThimble & Sleeve Satin Chrome Finish, Ø18 mm
