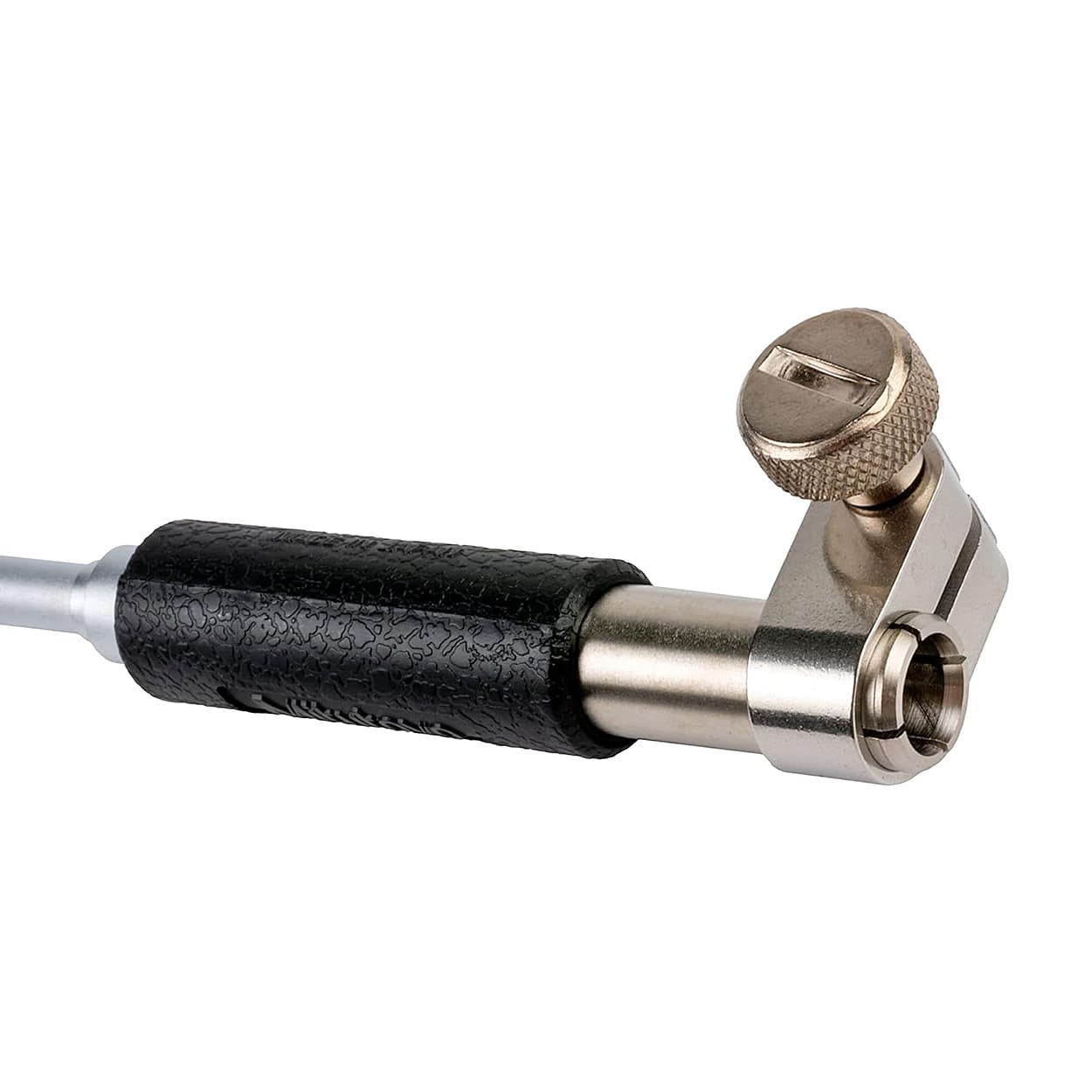

Mitutoyo 10 - 18.5 mm Bore Gauge For Small Holes Without Dial Gauge, 511-201

The Mitutoyo small hole bore gages feature interchangeable anvils to take highly accurate diameter measurements of bore holes. Models are available with or without a Mitutoyo Dial Indicator. The Mitutoyo direct measuring bore gage for small holes is available in two different ranges (metric and inch) to measure inside bore diameters with accuracy to +/-0.005mm.

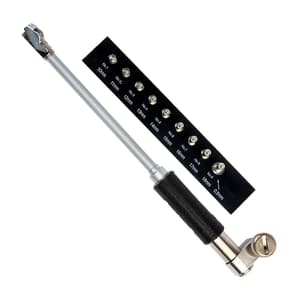

The bore gage comes with nine interchangeable anvils to measure several different bore diameters with the same gage. A two-point contact system detects geometry anomalies such as ovalness and taper.

• Metric models have ranges of 6-10mm and 10-18.5mm
• Inch models have ranges of .24-.4″ and .4-.74″
• Large, newly designed grips are easier to hold and reduces heat transfer from the operator for better accuracy
• Models with dial indicators are fully protected by a rugged cover
• Gage stem diameter is 8mm / .375″

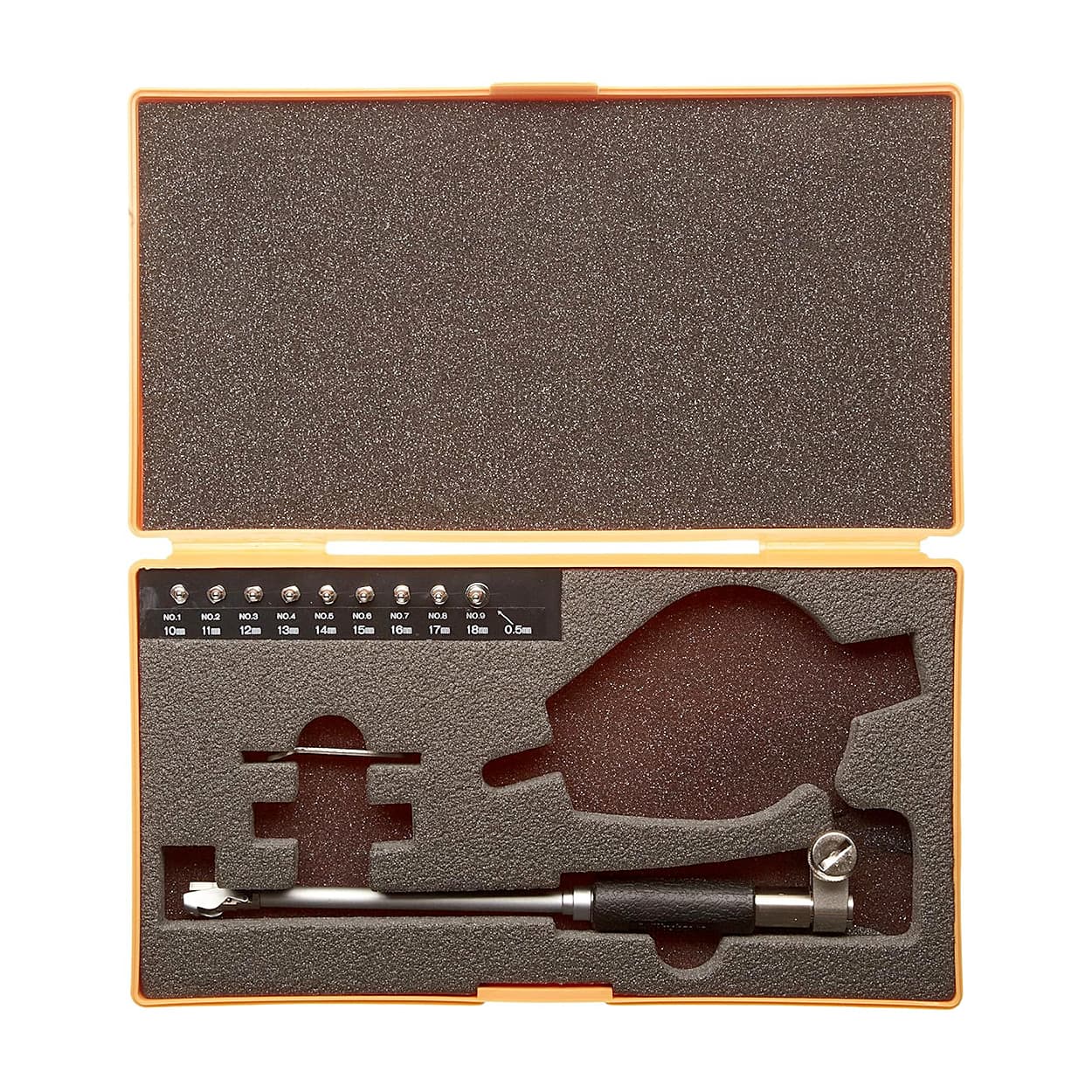

• Includes 9 anvils and 1 spacer
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
