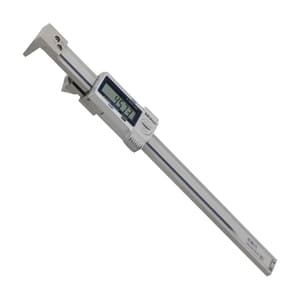

Mitutoyo 10 - 300 mm Digital ABS Back-Jaw Centerline Caliper with Data Output (Edge to Center), 573-719-20
Roll over the image to zoom in
Key Features
- Product Type: Digital Caliper
- Weight: 555 g
- Range (mm): 10 - 300 mm
- Max. Permissible Error (mm): ±0.15 mm (SMPE)
- Type: Edge to Center Distance
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹87,412 (Incl. of all taxes)
₹74,078 + ₹13,334 GST (18%)
MRP was MRP ₹98,770
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Specially designed to allow you to measure hole Edge-to-center distances.
- You can read measurements more easily from above, thanks to the jaws being on the back of the slide.
- Direct reading of pitch measurements is also available due to the offset value setting function.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 10 - 300 mm |
|---|---|
| Max. Permissible Error (mm) | ±0.15 mm (SMPE) |
| Type | Edge to Center Distance |
| Resolution | 0.01 mm |

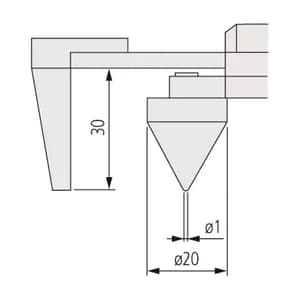

| Applicable Hole Diameter | Ø1.5 - Ø19.5 mm |
| OFFSET | 10 mm |
| Max. Response Speed | Unlimited |
| ABS (Absolute) | Yes |
| Data Output | Yes |
| Low Voltage Alarm | Yes |
| IP Rating | IP67 |
| Power Supply | 1x SR44 Battery |
