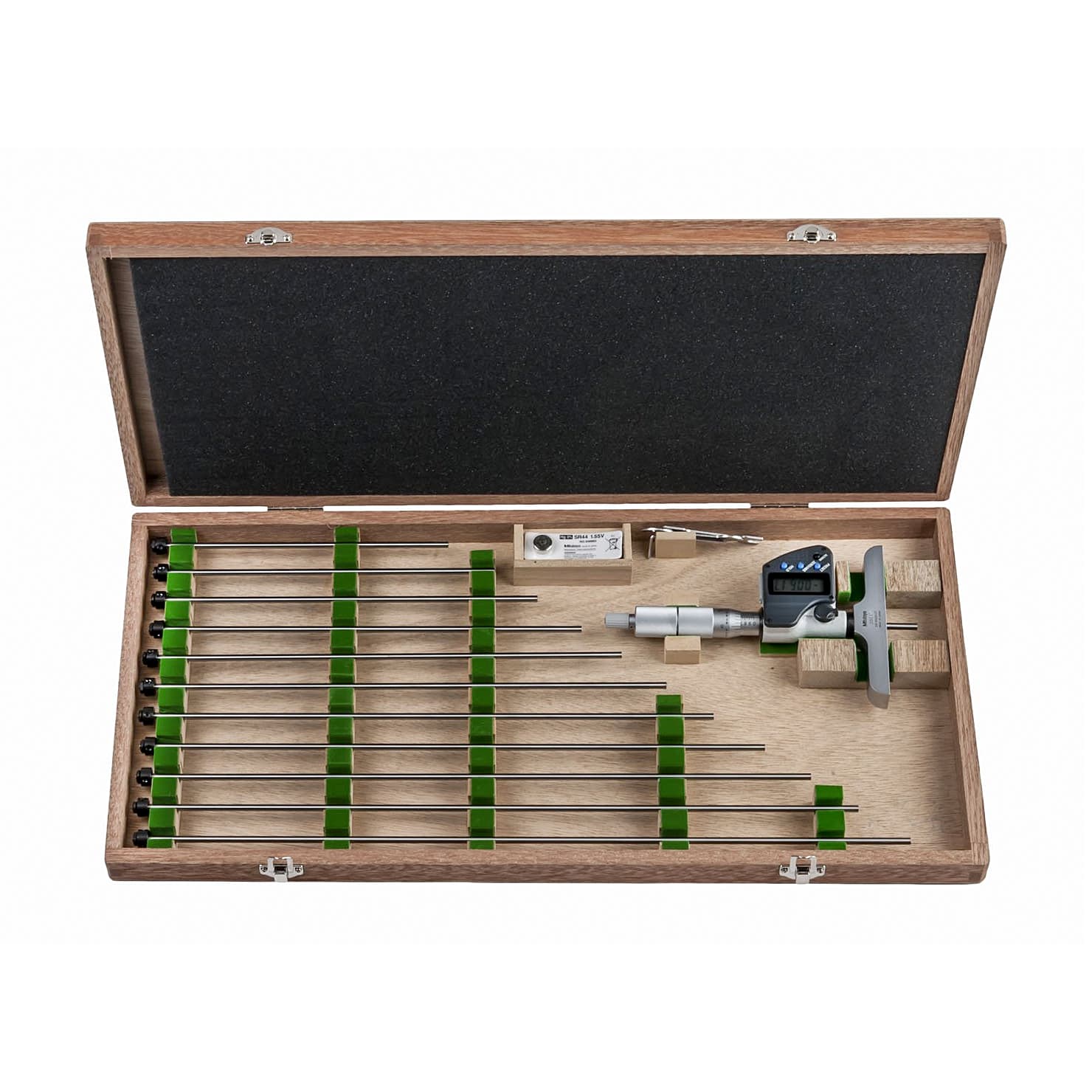

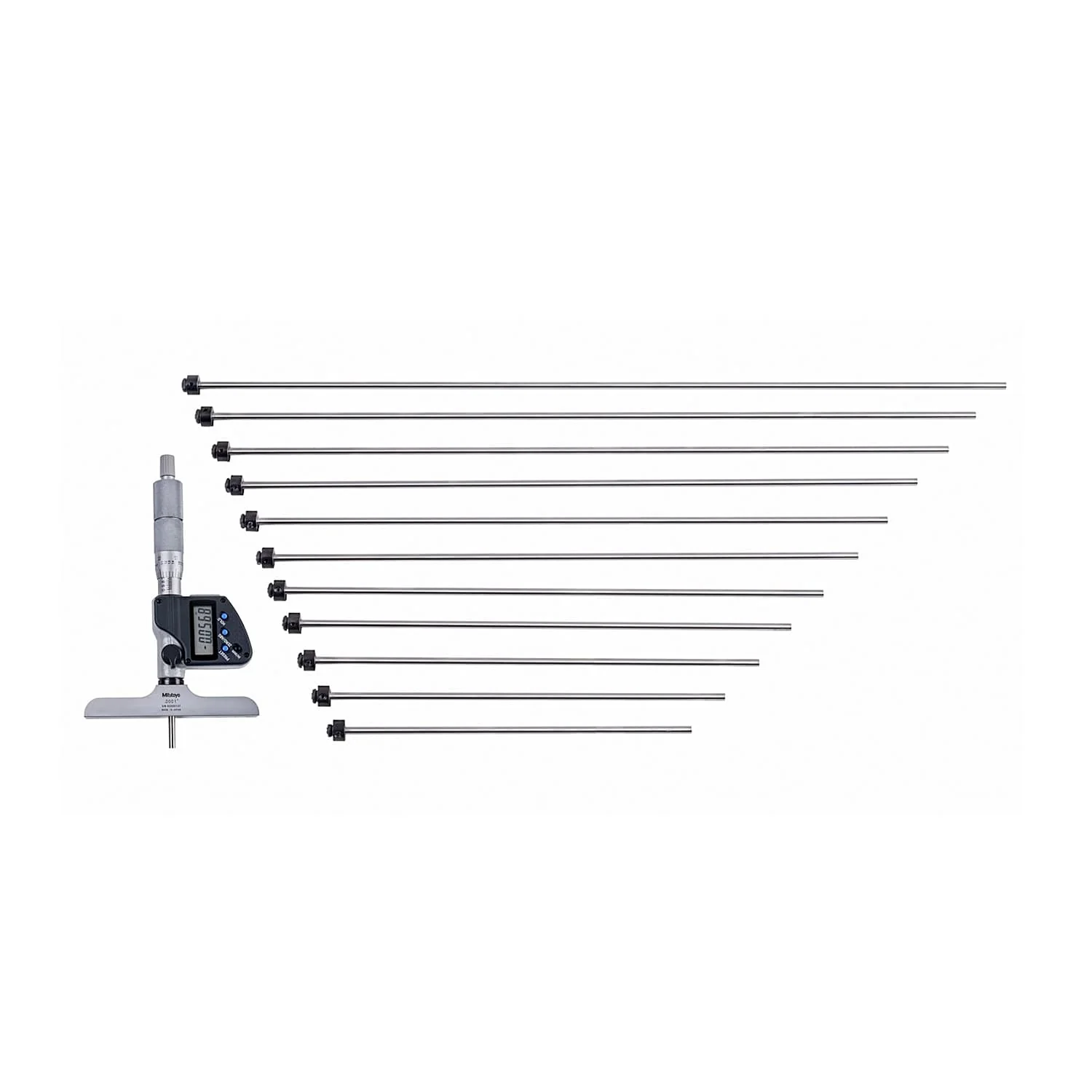

Mitutoyo 12 inch / 304.8 mm Digital Depth Micrometer with 12 Pcs Interchangeable Rods (4 inch Base Width), 329-351-30
Roll over the image to zoom in
Key Features
- Product Type: Depth Micrometer
- Weight: 790 g
- Range (Inches): 0 - 12 inch
- Range (mm): 0 - 304.8 mm
- Base (W x T): 4 x 0.63 inch
- Number of Rods: 12 Pcs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹45,790 (Incl. of all taxes)
₹38,805 + ₹6,985 GST (18%)
MRP was MRP ₹51,740
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 150 mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Ø4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
- The ratchet stop provides constant measuring force.
- Measuring rod lock.
Package Content:
- 1x Depth Micrometer
- 2x Spanner (301336, 04GAA274)
- 1x Hex-spanner (202863)
- 1 SR44 battery
- 12x Interchangeable Rods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 12 inch |
|---|---|
| Range (mm) | 0 - 304.8 mm |
| Base (W x T) | 4 x 0.63 inch |
| Number of Rods | 12 Pcs |
| Flatness Base | 2 μm |
| Flatness Rod | 0.3 μm |
| Graduation | 0.01 mm |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Parallelism base/rod | (4+L/50) μm L = max. measuring length (mm) |
| Spindle Pitch | 0.5 mm |
| Zero Point Errors of Rods | ±6μm |
| Base | Hardened Tool Steel |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble and Sleeve Satin Chrome Finish, Ø 18 mm |
