Mitutoyo 150 mm / 6 inch Dial Caliper with Locking screw & Thumb Roller (0.2 inch Per One Revolution), 505-740J
Roll over the image to zoom in
Key Features
- Product Type: Dial Calipers
- Weight: 175 g
- Range (mm): 0 - 150 mm
- Range (Inches): 0 - 6 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,151 (Incl. of all taxes)
₹6,908 + ₹1,243 GST (18%)
MRP was MRP ₹9,210
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Ultra-smooth sliding and high shock protection.
- Easy to read dial with large character height.
- New designed dial movement for ultrasmooth sliding and high-shock protection.
- Improved finish on sliding surfaces for longevity.
- New face for improved readability.
- Lock screw for dial bezel and for holding the sliding jaw position.
- Can measure OD, ID, depth and steps.
- Models available with carbide-tipped OD and ID jaws.

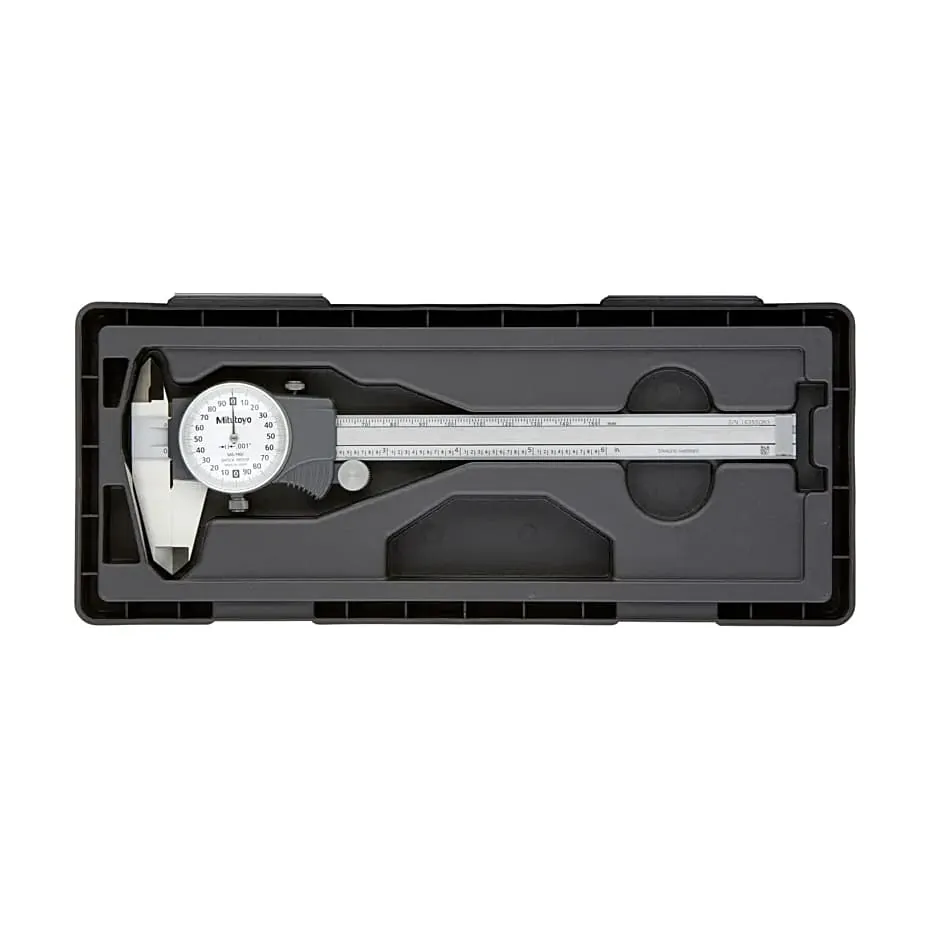

- Supplied in fitted plastic case
Measurement Applications:
- Outside measurement
- Inside measurement
- Step measurement
- Depth measurement
|
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 150 mm |
|---|---|
| Range (Inches) | 0 - 6 inch |
| Graduation | 0.001 inch |
| Accuracy | ±0.001 inch |
| Max. Permissible Error S MPE | ±0.002 inch |
| Pitch Per Revolution | 0.2 inch |
| Depth Bar | Flat |
| Locking screw & Thumb Roller | Yes |
| Length (mm) | 231 mm |

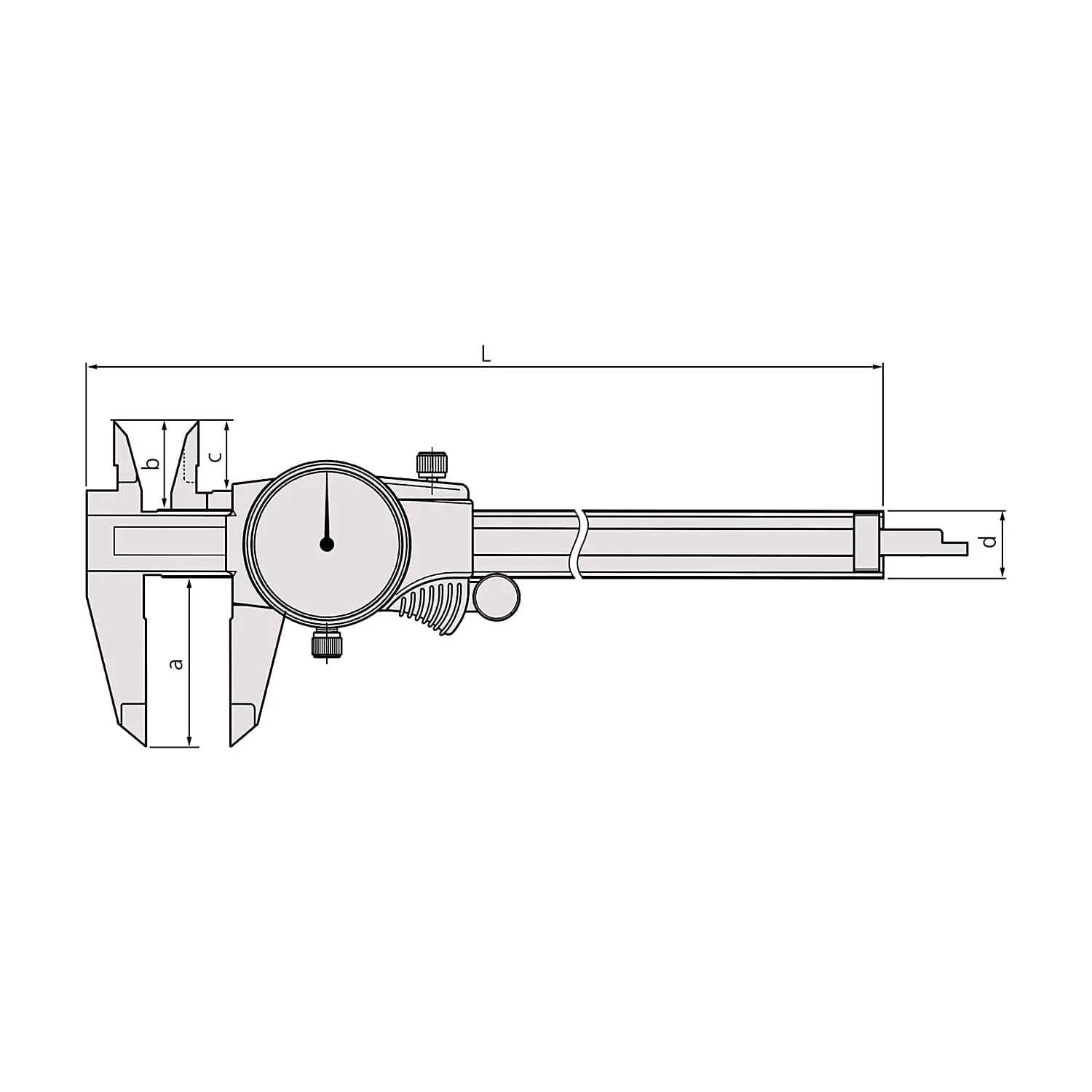

| Sizes (a x b x c x d) | 40 x 21 x 16.5 x 16 mm |
