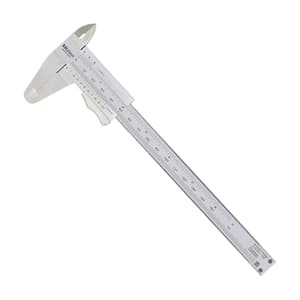

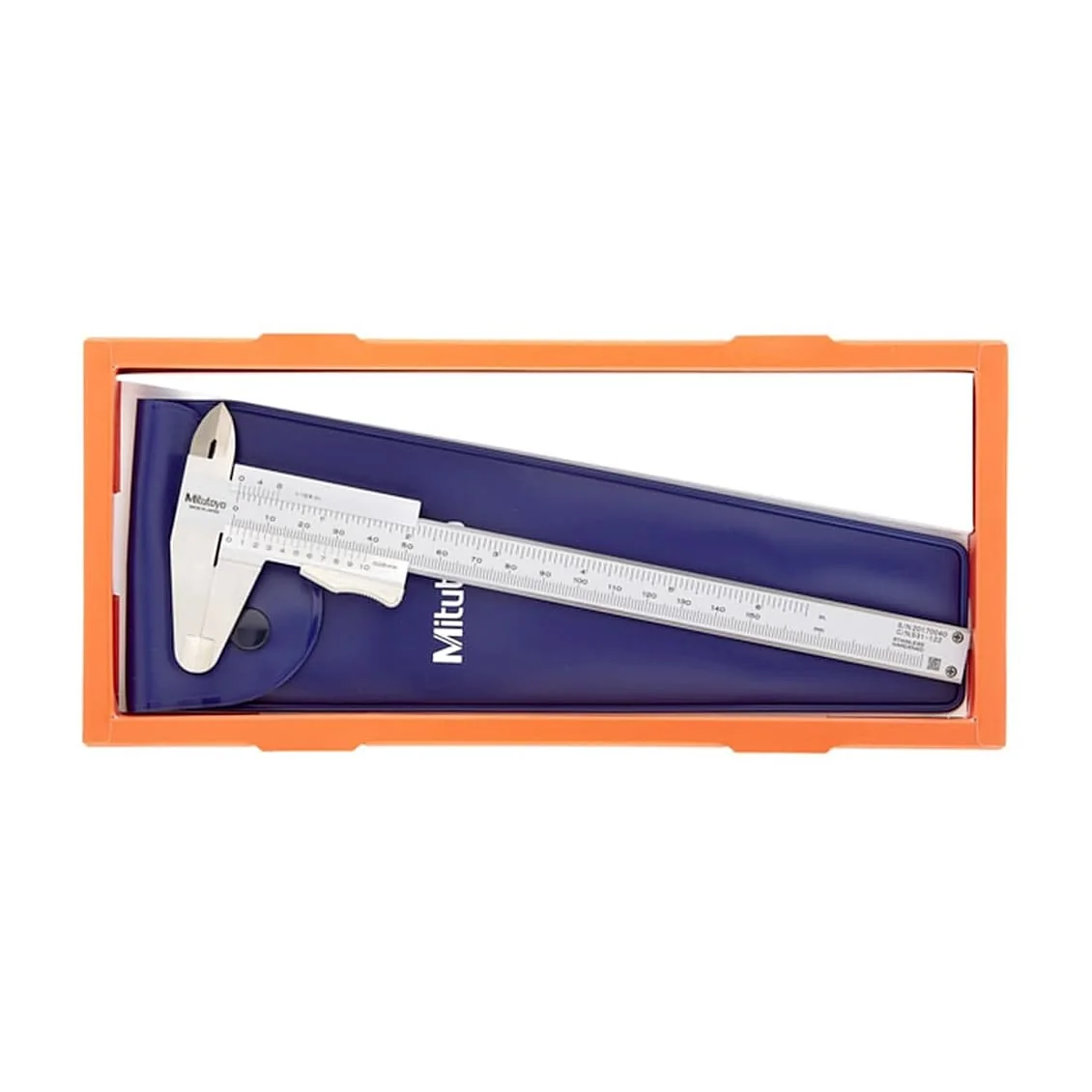

Mitutoyo 150 mm / 6 inch Vernier Double Scale Caliper with Thump Grip, 531-122
Roll over the image to zoom in
Key Features
- Product Type: Vernier Caliper
- Range (mm): 0 - 150 mm
- Range (Inches): 0 - 6 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,098 (Incl. of all taxes)
₹3,473 + ₹625 GST (18%)
MRP was MRP ₹4,630
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Thump Grip Vernier Caliper with inch/mm conversion label.
- The slider moves only when the spring-loaded thumb grip is depressed.
- Allows step measurement.
- Hardened stainless steel construction with satin chrome finish, for protection of caliper.
- Four-way measurement capability for outside dimension, inside dimension, depth and step measurements
- Vernier sliding scale moves only when spring loaded thumb clamp is depressed, for ease of measurement
- Raised sliding surfaces for preventing defacement and wear of scale graduations
- Meets Federal Accuracy Specifications GGG-C-111B
Dimensions Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 150 mm |
|---|---|
| Range (Inches) | 0 - 6 inch |
| Max. Permissible Error (mm) | ±0.05 mm (EMPE - Outside Measurement / SMPE - Inside Measurement) |
| Graduation (mm) | 0.05 mm (1/128 inch) |
| Jaw Thickness | 3 mm |
| Depth Bar | Blade |
