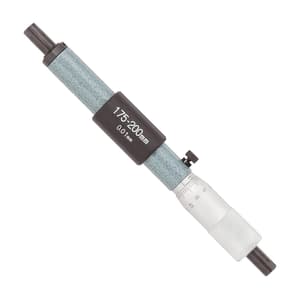

Mitutoyo 175 - 200 mm Tubular Inside Micrometer With Spindle Lock, 133-148
Roll over the image to zoom in
Key Features
- Product Type: Inside Micrometer
- Weight: 180 g
- Range (mm): 175 - 200 mm
- Graduation: 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,230 (Incl. of all taxes)
₹5,280 + ₹950 GST (18%)
MRP was MRP ₹7,040
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This is a standard single-rod type inside micrometer (individual unit)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Standard single rod.
- Carbide-tipped measuring faces.
- With locking clamp
- Zero point can be readjusted by rotating the micrometer head sleeve. A key wrench is supplied.
- Clear, crisp graduations on the satin chrome finished micrometer head.

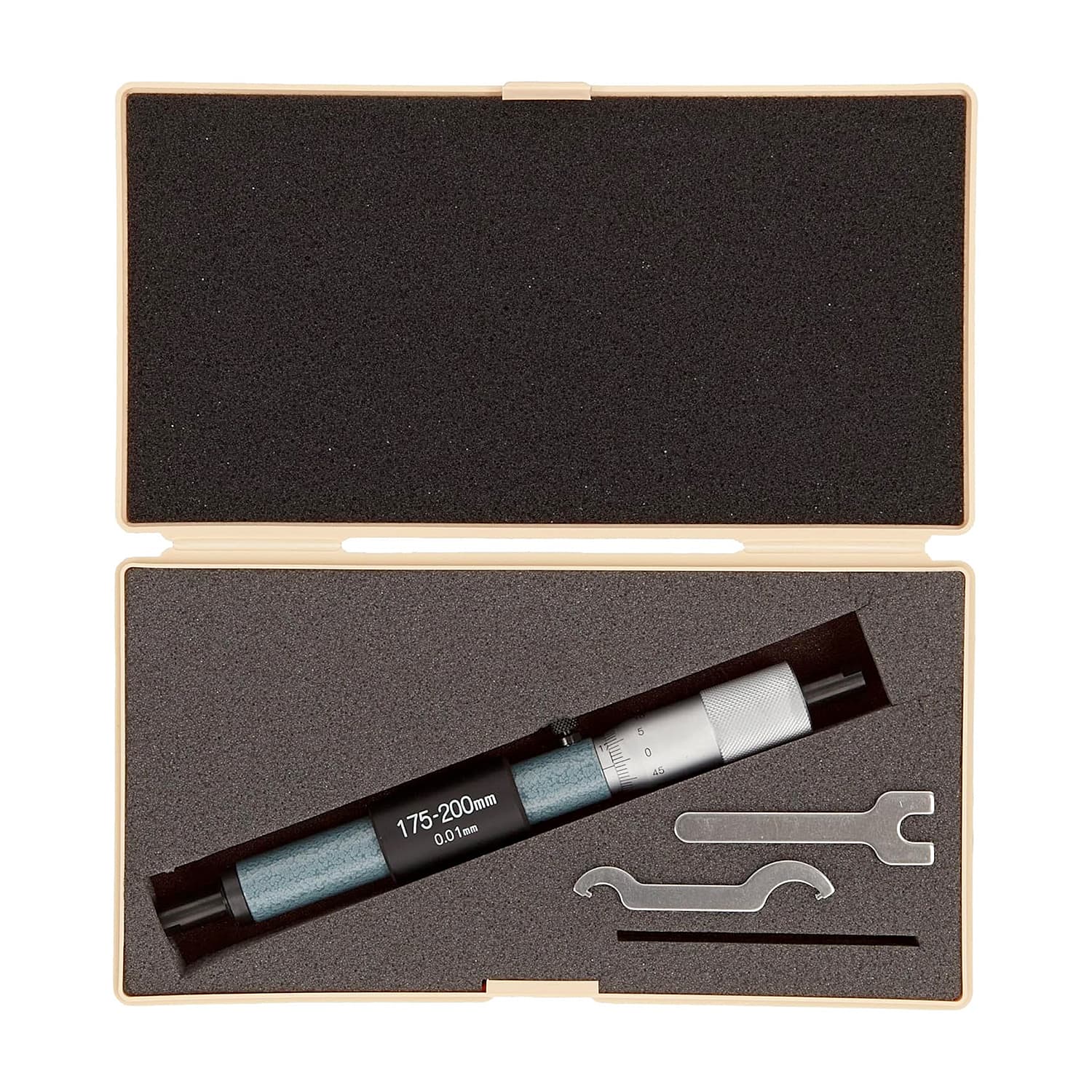

- Supplied in fitted plastic case
Package Content:
- Tubular Inside Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 175 - 200 mm |
|---|---|
| Graduation | 0.01 mm |
| Max. Permissible Error J MPE | ±5μm |
| Measuring Method | 2-Point |
| Spindle Pitch | 0.5 mm |
| Measuring Face | Carbide Tipped |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
| Sizes (a x b) | 18 x 15 mm |
| Length (mm) | 175 mm |
