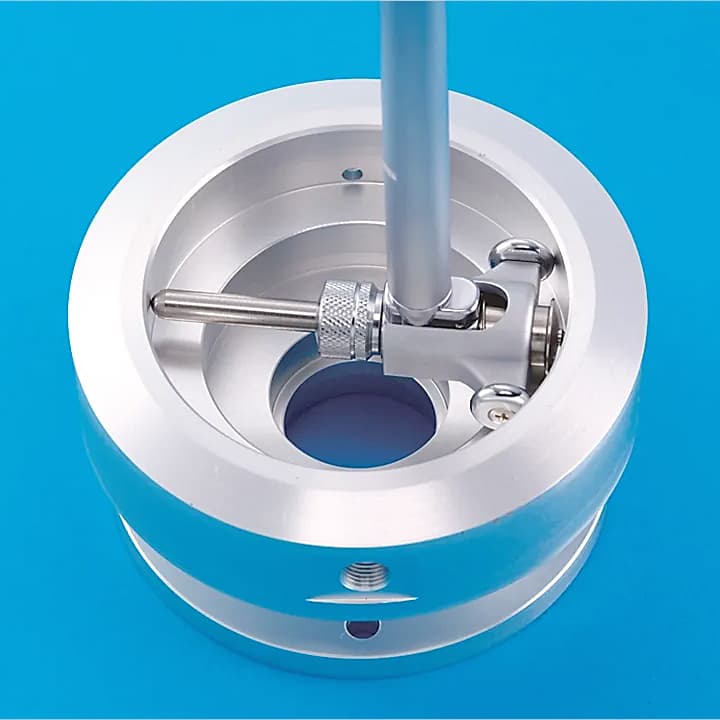

Mitutoyo 18 - 35 mm 2-Point Inside Measuring Instrument Standard Bore Gauge With Dial Indicator (Graduation 0.001 mm), 511-721-20
Roll over the image to zoom in
Key Features
- Product Type: Bore Gauge
- Weight: 330 g
- Type of Product: With Dial Indicator
- Range (mm): 18 - 35 mm
- Number Of Anvils: 9 Pcs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,957 (Incl. of all taxes)
₹16,913 + ₹3,044 GST (18%)
MRP was MRP ₹22,550
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

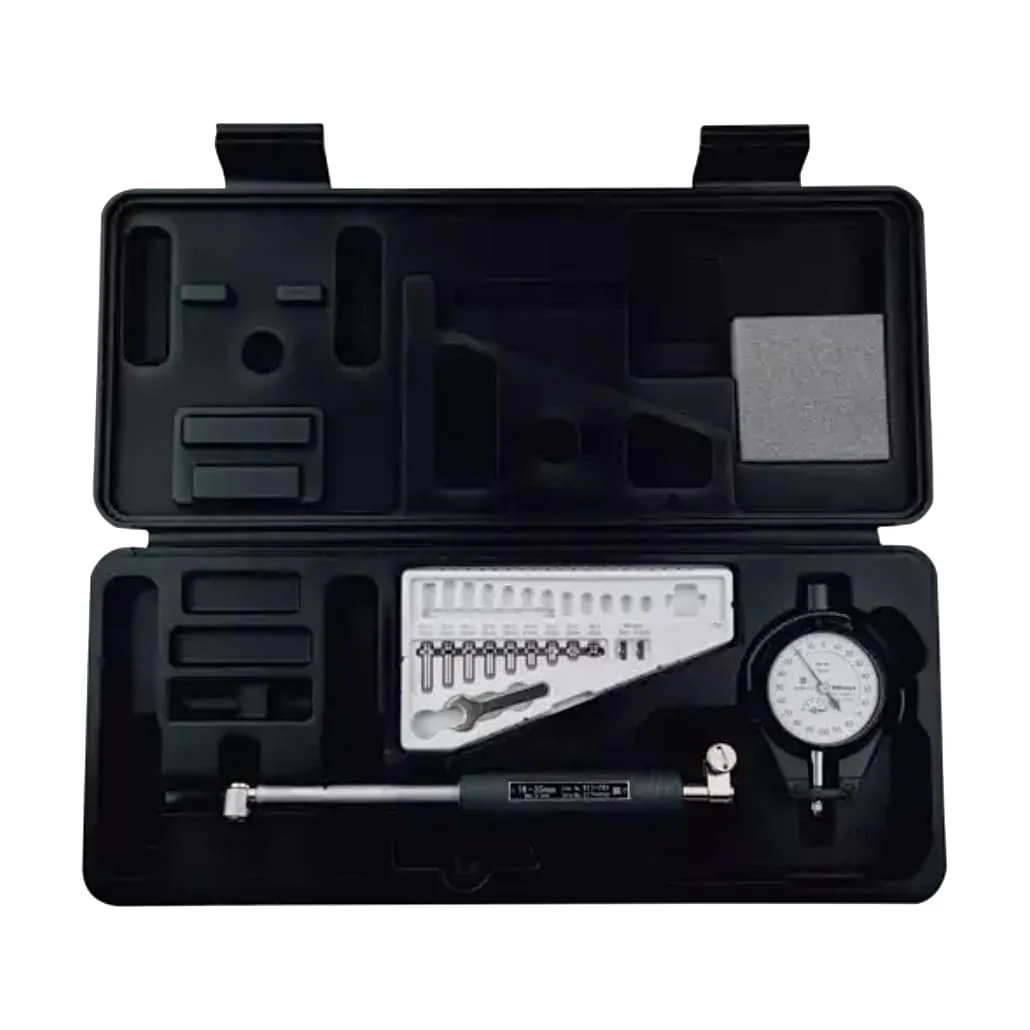

Package Content:
- 1x Bore gauge (511-701)
- 1x Dial indicator (2046AB-10)
- 1x Plastic cover for indicator (21DZA000)
- 9x Anvils
- 2x Interchangeable washer,
- 1x Spanner (1202148)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | With Dial Indicator |
|---|---|
| Range (mm) | 18 - 35 mm |
| Number Of Anvils | 9 Pcs |
| Number of Spacers | 2 Pcs |
| Effective Stroke Of Plunger | 1.2 mm |
| Type | Standard |
| Accuracy | 2 μm |
| Graduation | 0.001 mm |
| Measuring Depth | 100 mm |
| Repeatability | 0.5 μm |
