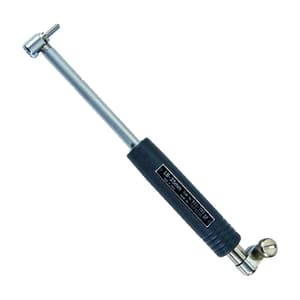

Mitutoyo 18 - 35 mm Standard Bore Gauge Without Dial Indicator, 511-701

The Mitutoyo standard-type bore gages feature interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with or without a Mitutoyo Dial Indicator. The Mitutoyo standard type bore gage is available in various ranges (metric and inch) to measure inside bore diameters with an accuracy to 2µ/.00008″.

The bore gauge comes with interchangeable anvils to measure various bore diameters with the same gauge. A pendulum guide structure improves sliding the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.

• Optional extension rods are available to measuring deep hole with accuracy
• Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
• Models with dial indicators are fully protected by a rugged cover
• Gage stem diameter is 8mm / .375″
• Indication stability: 1µm/.00004"
• Graduation: 0.01mm, 0.001mm, .0005" or .0001".
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability

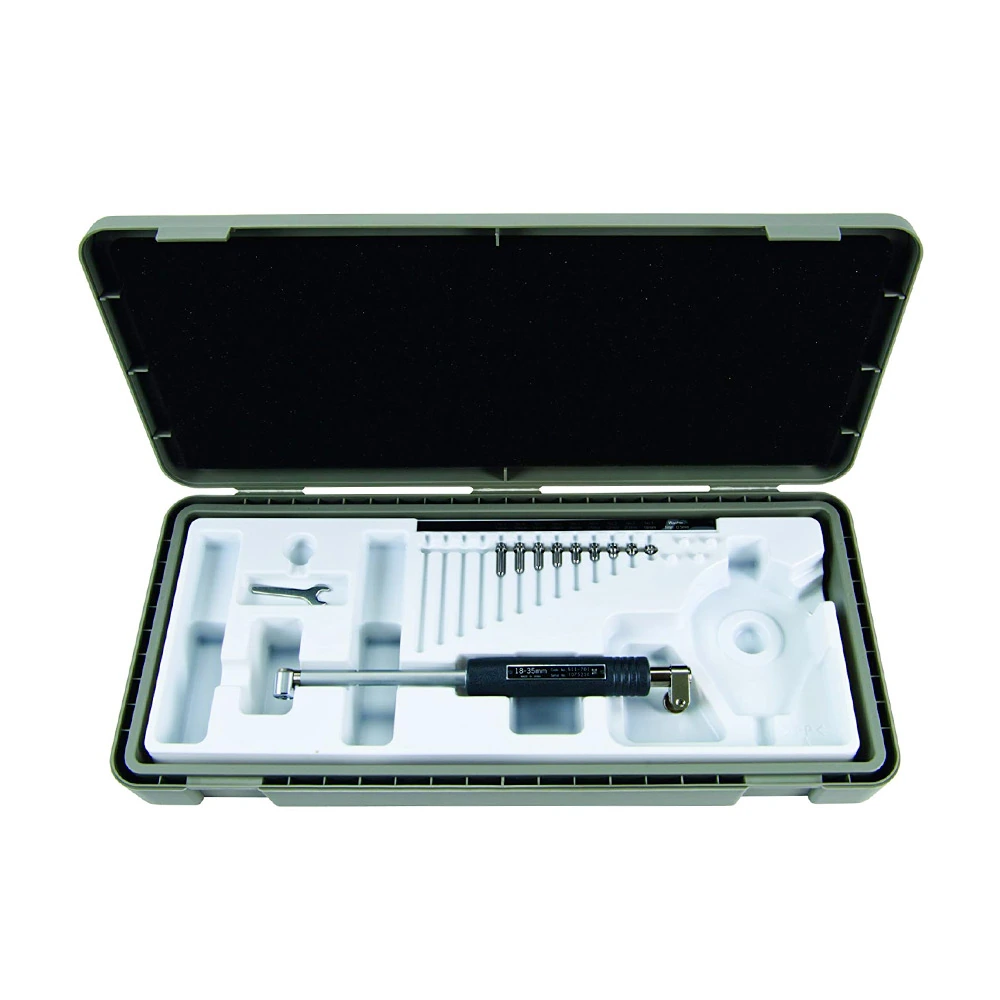

• Supplied in a fitted plastic case
