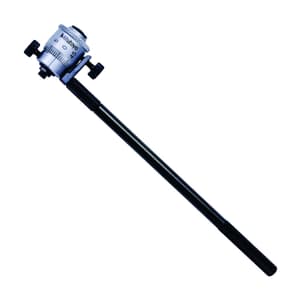

Mitutoyo 25 - 50 mm Carbide-tipped Inside Micrometer with Interchangeable Rods, 141-103

Shop all Mitutoyo

SKU: ME.MI.IN.00279

Model: 141-103

Roll over the image to zoom in


Key Features

  • Product Type: Inside Micrometer
  • Weight: 60 g
  • Range (mm): 25 - 50 mm
  • Travel of micrometer head: 7 mm
See all product information

ToolBuy Benefits

₹8,559 (Incl. of all taxes)

₹7,253 + ₹1,306 GST (18%)

MRP was MRP ₹9,670

Save 25%



3 Business Days

1

90173010

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

A Mitutoyo inside micrometer covering a range of measurement by using an interchangeable measuring rod with a spacing collar.


Features:

  • Wide range of ID measurements with interchangeable rods
  • Each interchangeable rod is marked with its measuring range.
  • The sizes of interchangeable rods can be adjusted with spacing collars.
  • Both micrometer head and furnished rods are satin-chrome finished throughout

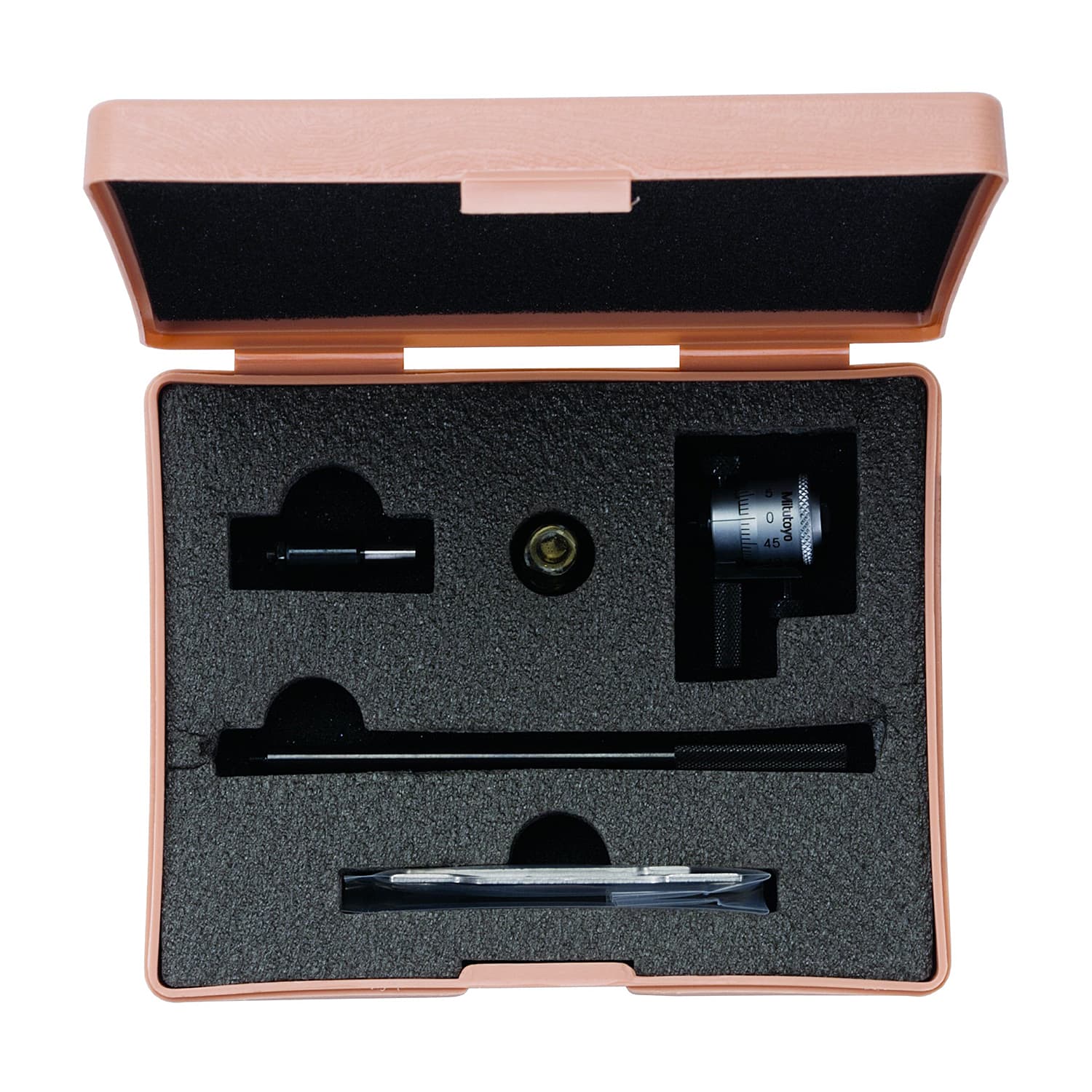

  • Supplied in fitted plastic case.


Package Content:

  • 1x Micrometer Head (141-001)
  • 1x Extension Collar
  • 2x Extension Rods (38 & 50 mm)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Mitutoyo 25 - 50 mm Carbide-tipped Inside Micrometer with Interchangeable Rods, 141-103
Range (mm)25 - 50 mm
Travel of micrometer head7 mm
Extension Collar6 mm
Graduation0.01 mm
Measuring Method2-point
Measuring SpindleSpindle Pitch 0.5 mm with Spindle Lock
ScaleThimble & Sleeve Satin Chrome Finish
Measuring FaceCarbide-tipped
