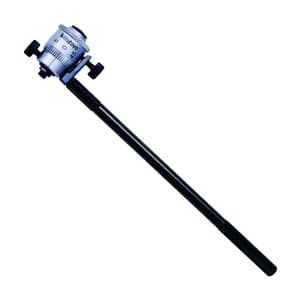

Mitutoyo 25 - 50 mm Inside Micrometer with Interchangeable Rods, 141-101
Roll over the image to zoom in
Key Features
- Product Type: Inside Micrometer
- Weight: 60 g
- Range (mm): 25 - 50 mm
- Travel of micrometer head: 7 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,045 (Incl. of all taxes)
₹6,818 + ₹1,227 GST (18%)
MRP was MRP ₹9,090
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo inside micrometer covering a range of measurement by using an interchangeable measuring rod with a spacing collar.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Wide range of ID measurements with interchangeable rods
- Each interchangeable rod is marked with its measuring range.
- The sizes of interchangeable rods can be adjusted with spacing collars.
- Both micrometer head and furnished rods are satin-chrome finished throughout

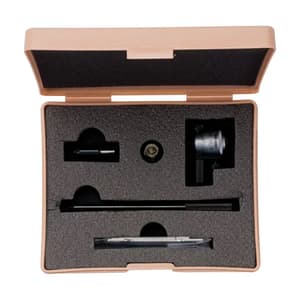

- Supplied in fitted plastic case.
Package Content:
- 1x Micrometer Head (141-001)
- 1x 6 mm Extension Collar
- 2x Extension Rods (38 & 50 mm)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Travel of micrometer head | 7 mm |
| Extension Collar | 6 mm |
| Graduation | 0.01 mm |
| Measuring Method | 2-point |
| Measuring Spindle | Spindle Pitch 0.5 mm with Spindle Lock |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| Measuring Face | Hardened Steel |
