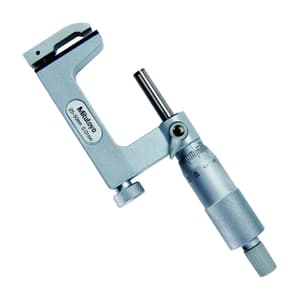

Mitutoyo 25 - 50 mm Interchangeable Anvil Type Uni-mike Micrometer with Ratchet Stop, 117-102
Roll over the image to zoom in
Key Features
- Product Type: Uni-mike Micrometer
- Weight: 320 g
- Range (mm): 25 - 50 mm
- Graduation: 0.01 mm
- Accuracy: ±4μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,222 (Incl. of all taxes)
₹11,205 + ₹2,017 GST (18%)
MRP was MRP ₹14,940
Save 25%
2 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Measures tubing thickness, shoulder-edge distance, rivet head height, etc., with interchangeable anvils (Flat Anvil, Rod Anvil, V-anvil).

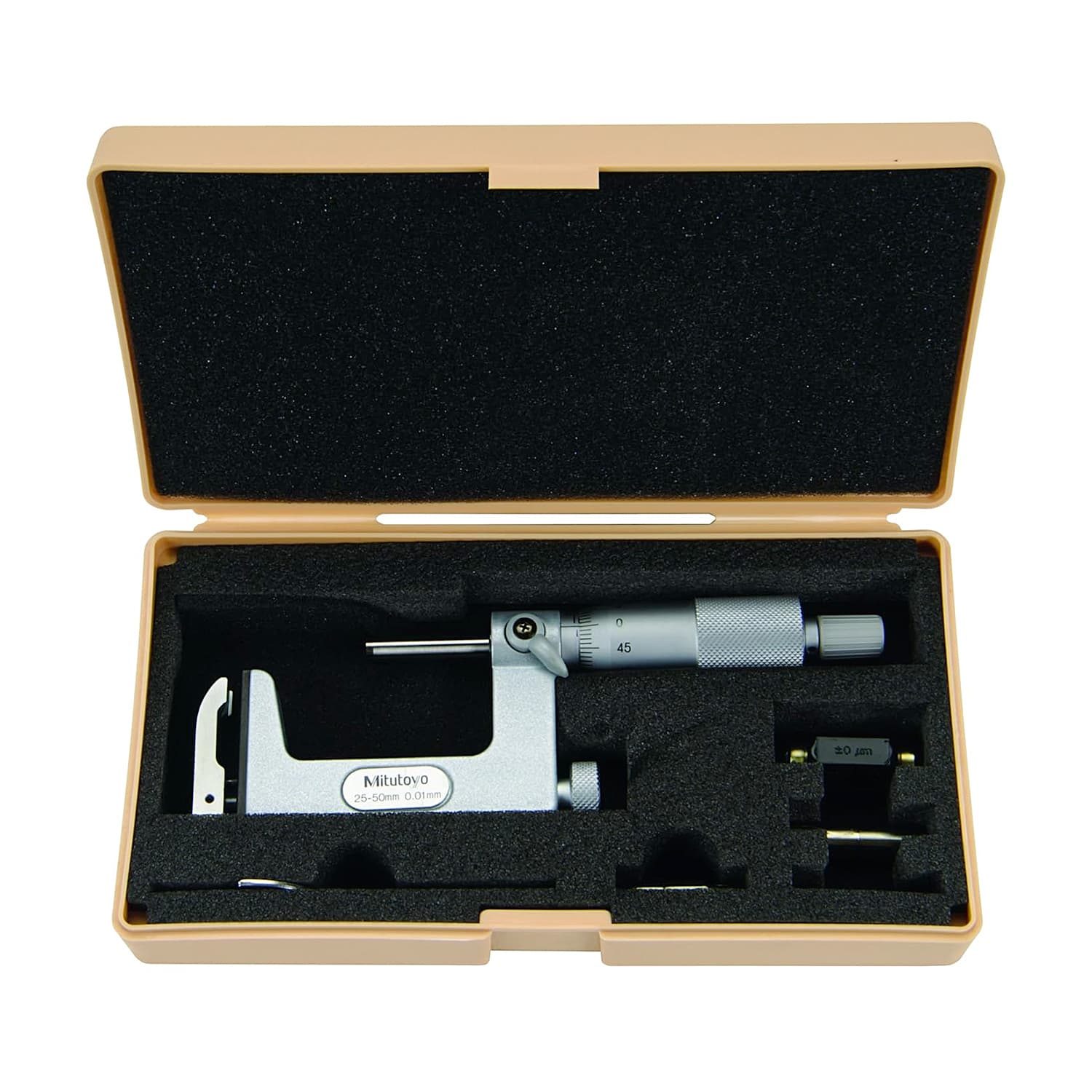

- Supplied in fitted plastic case.
Package Content:
- 1x Uni-Mike Micrometer
- 1x Spanner
- 1x Setting Standard
- 1x Flat Anvil (201216)
- 1x Rod Anvil (201217)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Graduation | 0.01 mm |
| Accuracy | ±4μm |
| Flatness | 0.6 μm (Spindle) & 2 μm (Anvil) |
| Measuring Force | 5 - 10N |
| Measuring Spindle | ø6.35 mm With spindle lock, (Spindle Pitch 0.5 mm) |
| Scale | Thimble and sleeve Satin Chrome Finish ø18 mm |
| Measuring Face | Carbide-tipped Micro-lap Finish Spindle and Hardened Steel Anvil |
