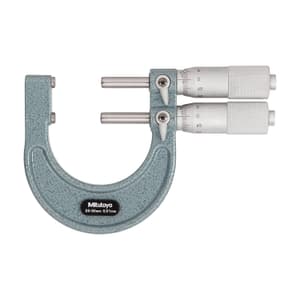

Mitutoyo 25 - 50 mm Limit Micrometer, 113-103
Roll over the image to zoom in
Key Features
- Product Type: Limit Micrometer
- Weight: 380 g
- Range (mm): 25 - 50 mm
- Graduation: 0.01 mm
- Accuracy: ±3μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,718 (Incl. of all taxes)
₹15,863 + ₹2,855 GST (18%)
MRP was MRP ₹21,150
Save 25%
2 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
We are making every effort to restock this item at the earliest.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- This instrument includes a dual set of spindles and anvils designed for accurate Go/No-Go (GO/NG) tolerance inspections.
- It features metric vernier scales that enable highly precise measurement of outside diameters (OD).
- The knurled friction thimble allows fast and smooth adjustments during use.
- A satin-chrome finish on both the thimble and sleeve offers protection against rust while minimizing glare.
- The spindles and anvils are equipped with carbide-tipped faces to ensure long-lasting wear resistance.

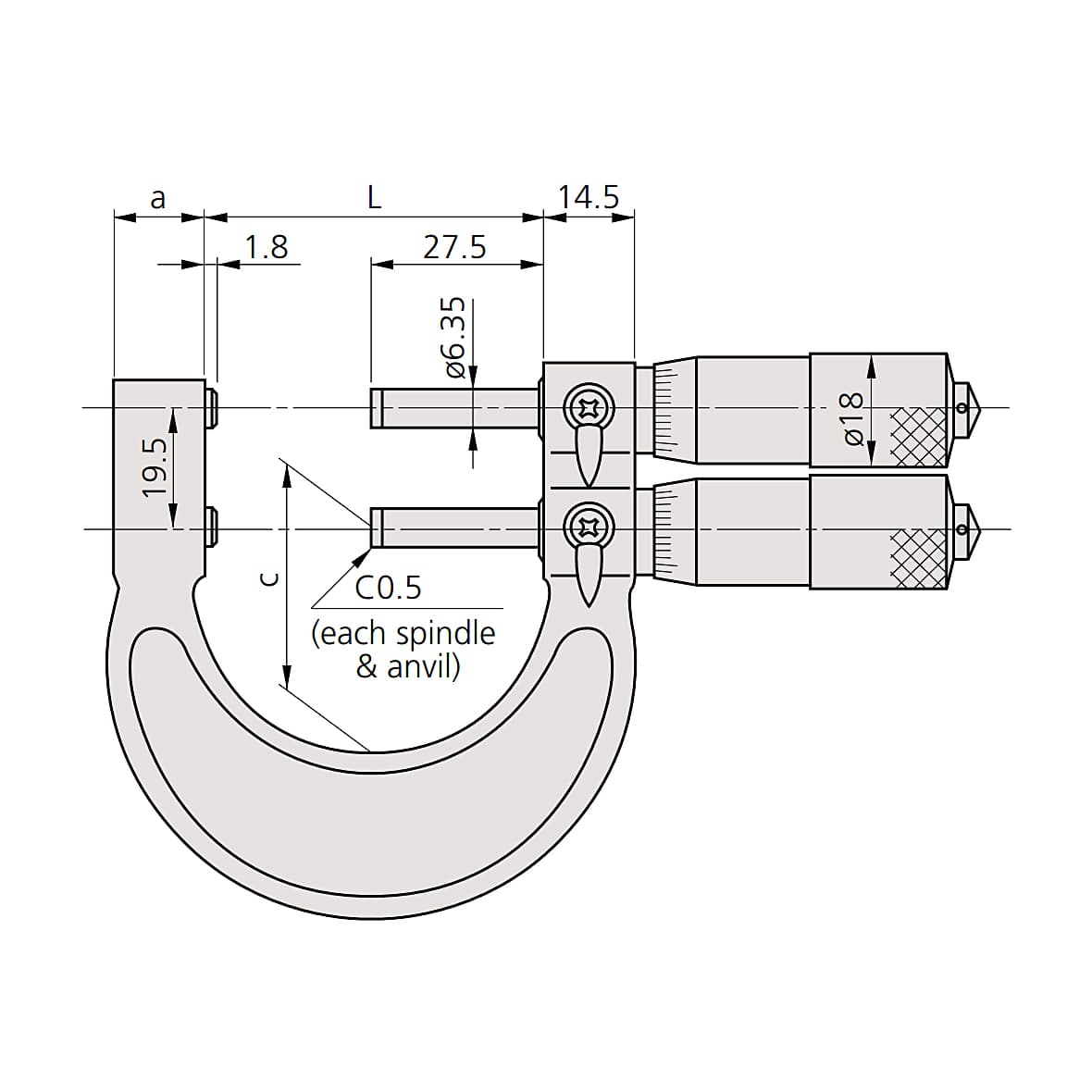

Dimension Measurement:
 |
|

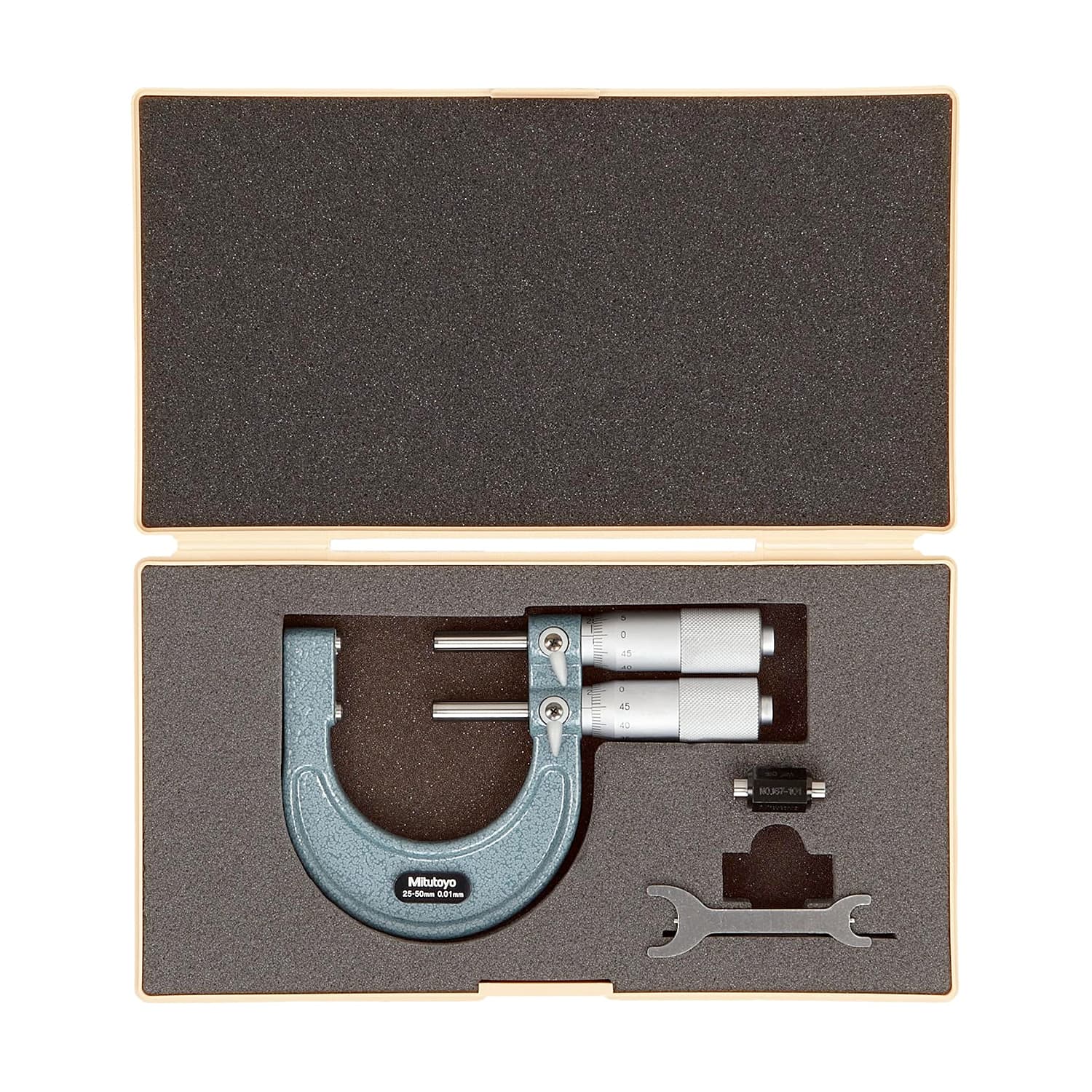

Package Content:
- 1x Limit Micrometer
- 1x Spanner
- 1x Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Graduation | 0.01 mm |
| Accuracy | ±3μm |
| Flatness | 0.6μm |
| Measuring Force | 5 - 10N |
| Measuring Spindle | ø6.35 mm With spindle lock, (Spindle Pitch 0.5 mm) |
| Scale | Thimble and sleeve Satin Chrome Finish ø18 mm |
| Measuring Face | Carbide-tipped Micro-lap Finish With Chamfer |
