Mitutoyo 25 - 50 mm Outside Micrometer (Economy Design), 103-138
Roll over the image to zoom in
Key Features
- Product Type: Outside Micrometer
- Weight: 215 g
- Range (mm): 25 - 50 mm
- Graduation: 0.01 mm
- Flatness: 0.6 μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,672 (Incl. of all taxes)
₹3,112 + ₹560 GST (18%)
MRP was MRP ₹3,990
Save 22%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.
- Hammertone-green, baked-enamel finished frame.
- Ratchet Stop for exact repetitive readings.

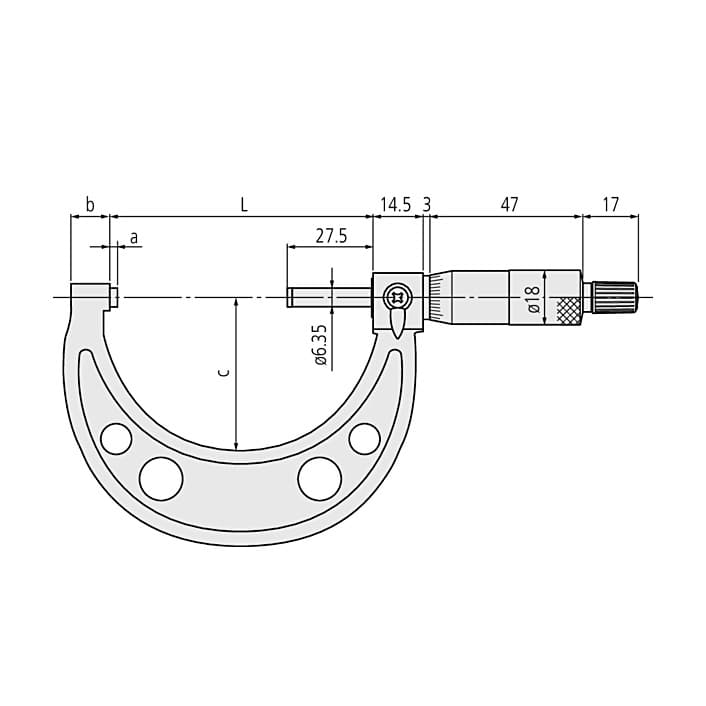

- Dimensions: L: 55.3 mm / a: 2.8 mm / b: 10 mm / c: 38 mm / d: 6.35 mm
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Outside Micrometers |
|---|---|
| Range (mm) | 25 - 50 mm |
| Graduation | 0.01 mm |
| Maximum Permissible Error J MPE | ±2 μm |
| Flatness | 0.6 μm |
| Parallelism | 2 μm |
| Digital / Analog | Analog |
| Inch-Metric | Metric |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring Force | 5-10 N (from 100 mm upward : 5-15 N) |
| Measuring Spindle | With spindle lock, ø6,35 mm (=300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm |
| Delivered | Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range) |
