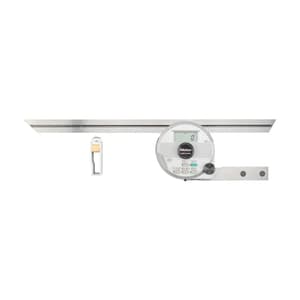

Mitutoyo 300 mm Digital Universal Protractor, 187-502
Roll over the image to zoom in
Key Features
- Product Type: Bevel Protractor
- Weight: 662 g
- Blade Length: 300 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹69,650 (Incl. of all taxes)
₹59,025 + ₹10,625 GST (18%)
MRP was MRP ₹78,700
Save 25%
7 Business Days
1
90172020
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- It has an easy-to-read digital display.
- It automatically turns off after 10 minutes, and gives you fixed reference points for easy adjustment.
- You can slide and clamp the measuring blade over the entire length.
- You can make fine adjustments to precisely adjust arbitrary angle dimensions.
- It comes with a mounting facility on height gauges and tracers of series 192 via holder.
Functions:
- Angle sexagesimal/decimal
- DATA (output with cable) / HOLD (display value)
- Data output
- ON/OFF
- PRESET
- ZERO SET

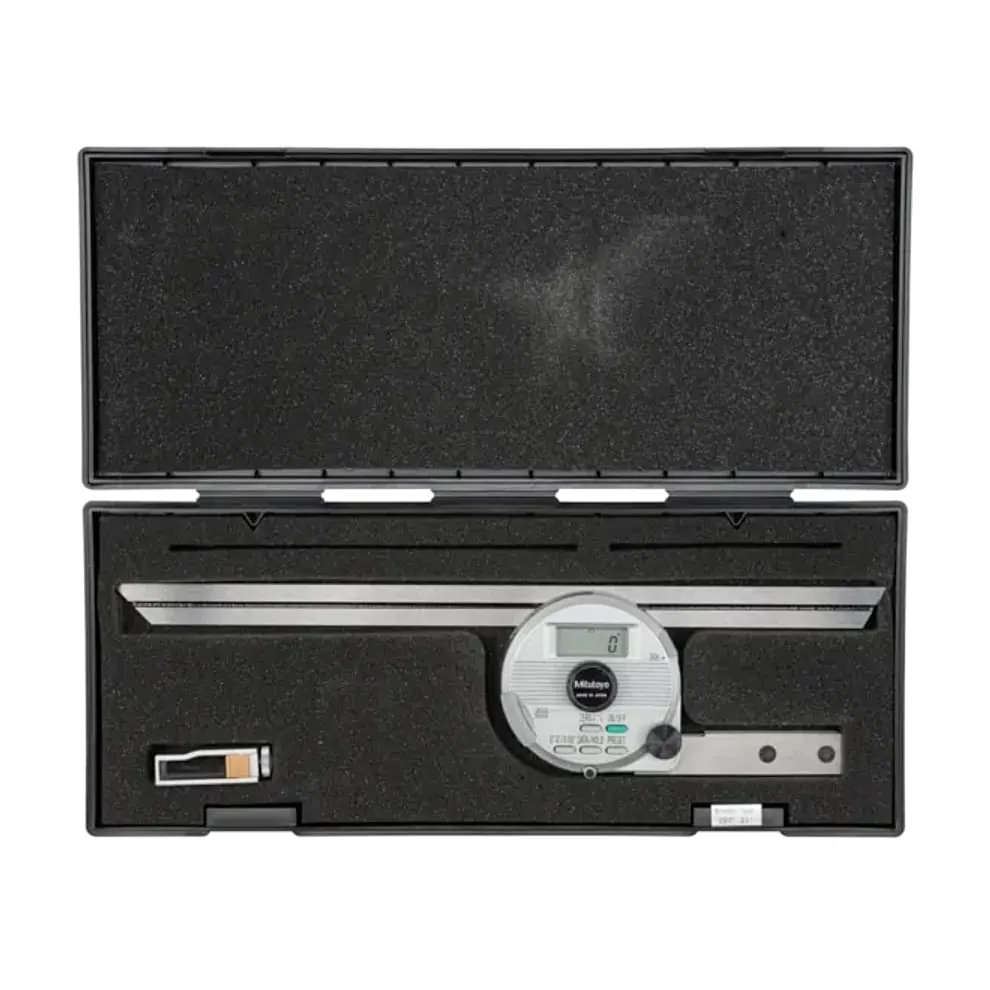

Package Content:
- 1x Digital Universal Protractor
- 1x CR-2032 battery
- 1x 300 mm steel rule
- 1x Holder for height gauge
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Blade Length | 300 mm |
|---|---|
| Battery Life | Approx. 2000 hours |
| Digital Step | 1' (0.01°) |
| Display | LCD with Character Height 6.5 mm |
| Max. permissible error | 2' (0.03°) |
| Repeatability | 1' (0.01°) |
| Power supply | 1x Battery CR2032 |
