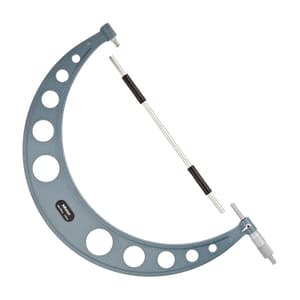

Mitutoyo 350 - 375 mm Outside Micrometer with Ratchet Stop, 103-151
Roll over the image to zoom in
Key Features
- Product Type: Outside Micrometer
- Range (mm): 350 - 375 mm
- Graduation: 0.01 mm
- Flatness: 1 μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,824 (Incl. of all taxes)
₹15,105 + ₹2,719 GST (18%)
MRP was MRP ₹20,140
Save 25%
2 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo basic, cost-effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Lightweight workshop design with baked-enamel-finished frame.
- Equipped with Ratchet Stop for constant measuring force.
- Baked-enamel-finished frame.
- A Mitutoyo basic, cost-effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

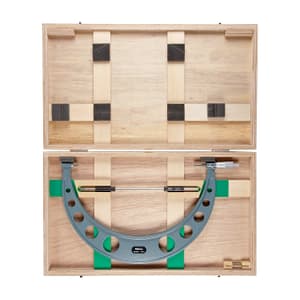

Package Content:
- 1x Outside Micrometer
- 1x Reference Bar
- 1x Spanner (200154)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Outside Micrometers |
|---|---|
| Range (mm) | 350 - 375 mm |
| Graduation | 0.01 mm |
| Maximum Permissible Error | ±6 μm |
| Flatness | 1 μm |
| Parallelism | 5 μm |
| Measuring Force | 10 - 15 N |
| Dimensions (mm) | 350 mm (L)/ 28 mm (a)/ 212 mm (b)/ 18 mm (C) |
