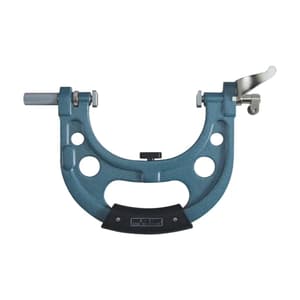

Mitutoyo 4 - 5 inch Dial Snap Gauge without Indicator, 201-155
Roll over the image to zoom in
Key Features
- Product Type: Snap Gauge
- Weight: 950 g
- Range (Inches): 4.5 inch
- Anvil Retracting Stroke: 2 mm
- Parallelism: 0.0002 inch
- Measuring Force: 12 - 18N
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,621 (Incl. of all taxes)
₹20,865 + ₹3,756 GST (18%)
MRP was MRP ₹27,820
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo dial snap gauge designed for quick GO/NG judgement of diameters of cylinders and shafts. Anvils are chamfered for easy workpiece insertion. The dial indicator is optional, enabling the user to choose from the wide range available to best suit the application.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Designed for quick go/no-go judgment of diameters of cylinders and shafts in machining processes.
- Dial or Digital indicators are optional.
- Both front edges of the anvil are chamfered for easy insertion
Package Content:
- 1x Dial Snap Gauge
- 1x Thermally insulating grip,
- 1x Workpiece stop
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (Inches) | 4.5 inch |
|---|---|
| Anvil Retracting Stroke | 2 mm |
| Flatness | 1μm |
| Parallelism | 0.0002 inch |
| Measuring Force | 12 - 18N |
| Measuring Face | Carbide-tipped, Micro-lap finish (13.5 x 12 mm) |
| Repeatability | 2 μm |
| Remark | For indicator with 9.52 mm stem |
