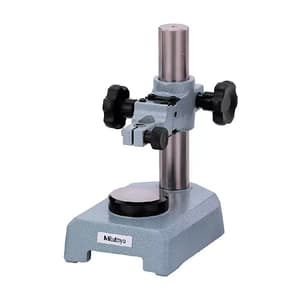

Mitutoyo 58 mm Dia. (Flat Anvil) Dial Gauge Stand, 7002-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator Stand
- Weight: 4 kg
- Type of Product: For Dial Indicators
- Effective table dimensions (Dia.): Ø58 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹35,923 (Incl. of all taxes)
₹30,443 + ₹5,480 GST (18%)
MRP was MRP ₹40,590
Save 25%
7 Business Days
1
90319000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension.
Package Content:
- 1x Dial Gauge Stand

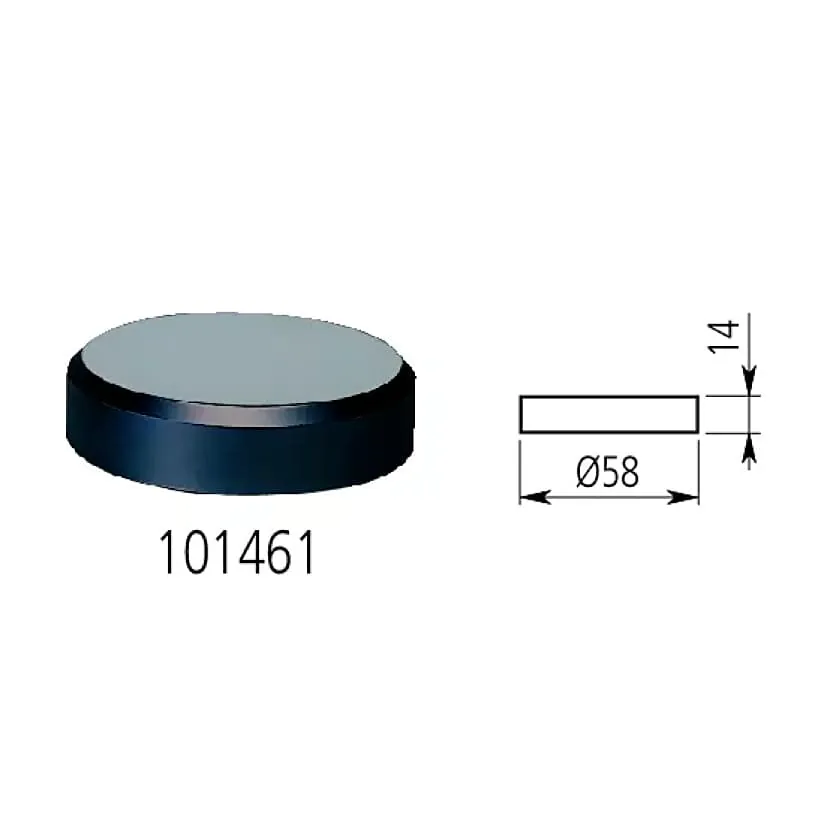

- 1x Flat anvil (101461)
- 1x Stem bush (21JAA316)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

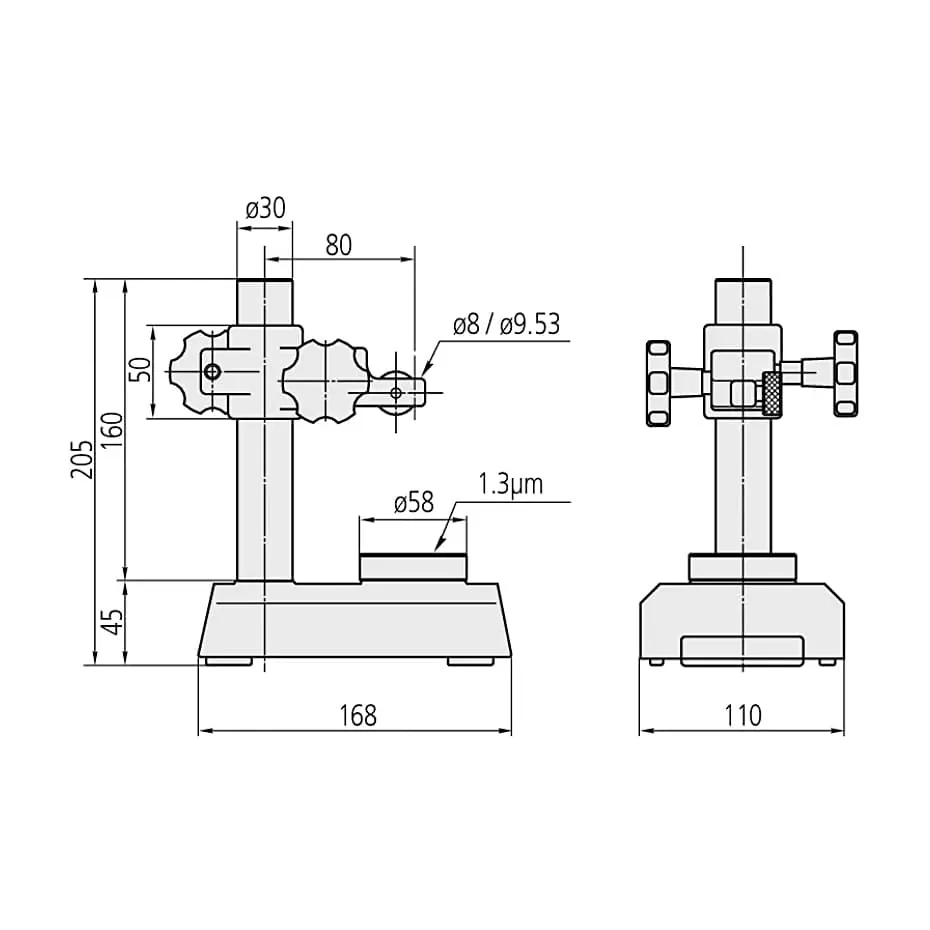

Specifications
| Type of Product | For Dial Indicators |
|---|---|
| Effective table dimensions (Dia.) | Ø58 mm |
| Base size (mm) | 168 x 110 mm |
| Column Dia. | Ø30 mm |
| Fine Adjustment | 1 mm |
| Max. measurement height | 95 mm |
| Perpendicularity table-stem hole | 100 mm / 0.4 inch |
| Stem hole Dia. | Ø3/8" / 9.53 mm , 8 mm with bush (standard accessory) |
| Table Flatness | 1.3μm |
