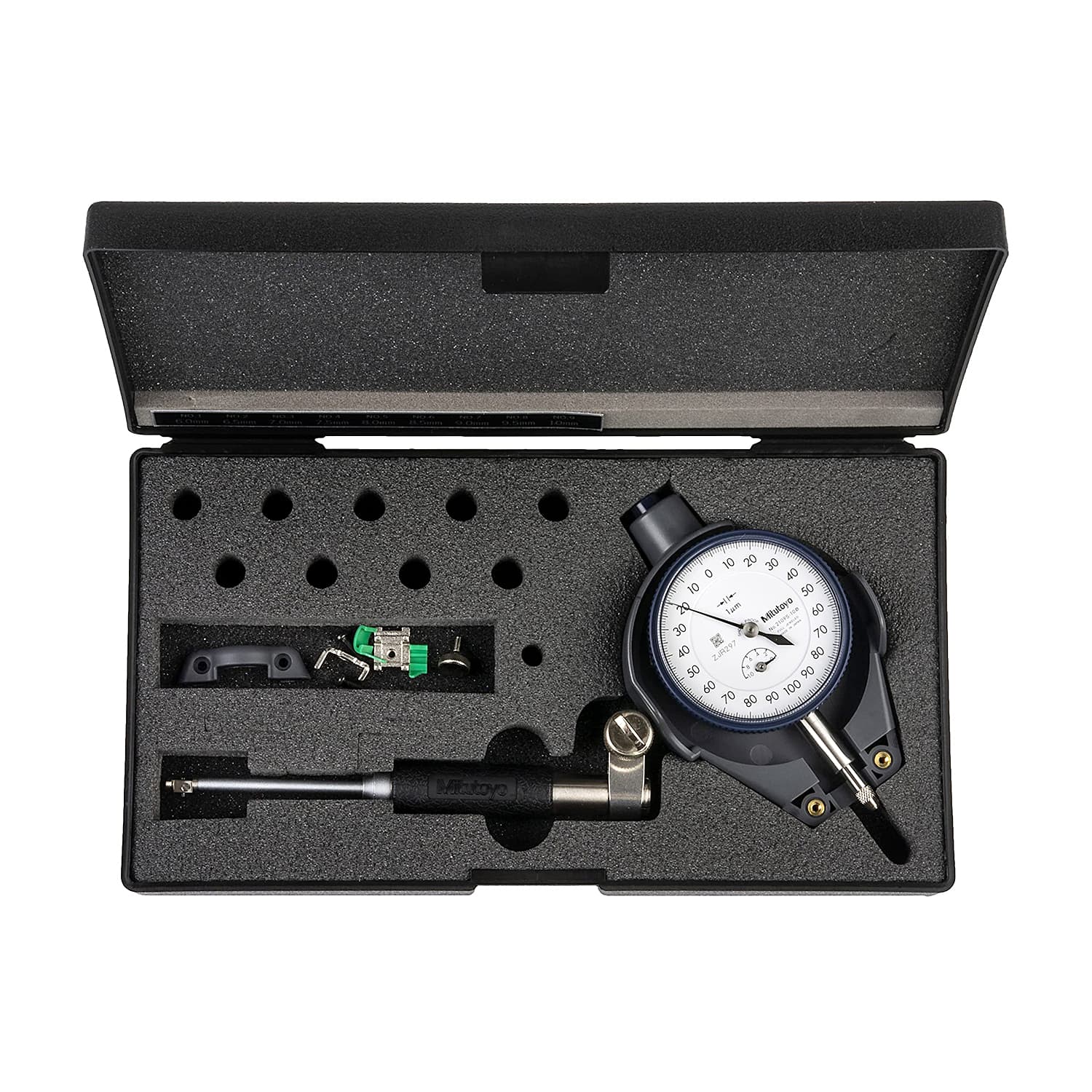

Mitutoyo 6 - 10 mm 2-Point Inside Measuring Instrument Bore Gauge For Small Holes With Dial Indicator (Graduation 0.01 mm), 511-211-20

Shop all Mitutoyo

SKU: ME.DI.BO.00197

Model: 511-211-20

Roll over the image to zoom in


Key Features

  • Product Type: Bore Gauge
  • Weight: 255 g
  • Type of Product: With Dial Indicator
  • Range (mm): 6.10 mm
  • Number of Anvils: 9 Pcs
See all product information

ToolBuy Benefits

₹13,550 (Incl. of all taxes)

₹11,483 + ₹2,067 GST (18%)

MRP was MRP ₹15,310

Save 25%



7 Business Days

1

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

These are bore gauges that automatically self-centre via a centring bridge


Features:

  • A long plunger stroke gives you amazing accuracy.
  • Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
  • A large grip reduces heat transfer from the operator by 50%.
  • Interchangeable anvils are made of alloy steel.
  • The dial indicator is fully protected by a rugged cover.


Package Content:

  • 1x Bore Gauge (511-209)
  • 1x Dial Indicator (2046AB)
  • 1x Plastic Cover for Indicator (21DZA000)
  • 9x Anvils

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Mitutoyo 6 - 10 mm 2-Point Inside Measuring Instrument Bore Gauge For Small Holes With Dial Indicator (Graduation 0.01 mm), 511-211-20
Type of ProductWith Dial Indicator
Range (mm)6.10 mm
Number of Anvils9 Pcs
Number of Spacers1 Pcs
Stem Diameter8 mm
Graduation0.01 mm
Measuring Depth50 mm
Measuring Force<2
Repeatability2 μm
Stroke of Contact Point0.5
