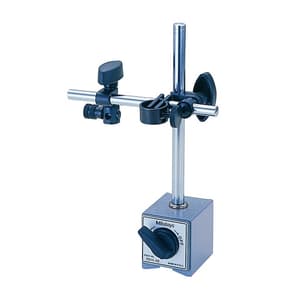

Mitutoyo 60 Kgf Magnetic Stand With Fine Adjustment, 7011S-10
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Stand
- Weight: 1.49 kg
- Working Radius: 160 mm
- Total Height: 232 mm
- Thread Arm / Base: M8 x 1.25
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,532 (Incl. of all taxes)
₹4,688 + ₹844 GST (18%)
MRP was MRP ₹6,250
Save 25%
1 Business Days
1
90319000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
The Mitutoyo magnetic stand pertains to all dial indicators and dial test indicators and are available in many different sizes, styles and types. The Mitutoyo magnetic stand securely holds dial indicators and dial test indicators to ensure measurements are as accurate as possible and repeatable.
Different sizes and styles of magnetic stands, including flexible mini and universal stands, are available for different indicators and applications. The On/Off switch offers instant mounting and dismounting without any adverse effect to the indicators or workpiece.
Features:
- Available with fine adjustments, mechanical locking systems, and without magnet On/Off function
- Some stands include dovetail groove
- On/Off switch for easy, safe dismounting
- V-block base type
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

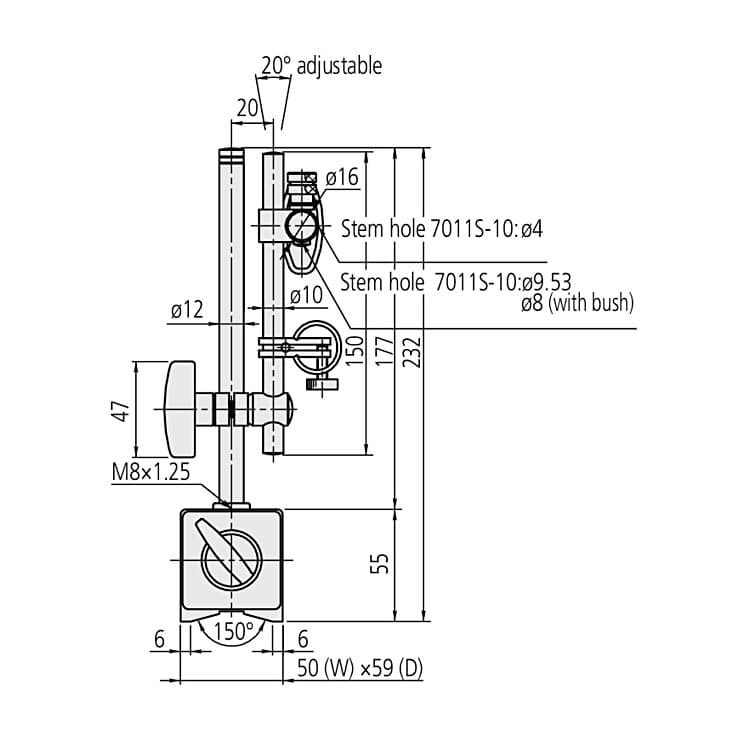

Specifications
| Type of Product | For Dial Indicators |
|---|---|
| Magnetic Force (kgf) | 60 kgf |
| Magnetic Force (Vertical) | 600 N |
| Working Radius | 160 mm |
| Clamping Device | Magnetic |
| Total Height | 232 mm |
| Thread Arm / Base | M8 x 1.25 |
| Base Size (L x W x H) | 59 x 50 x 55 mm |
| Fine Adjustment | With Fine Adjustment Knop |
| Stem Hole Ø | 3/8" / 9.53 mm, 4 mm, 8 mm (With Stem Bush) |
