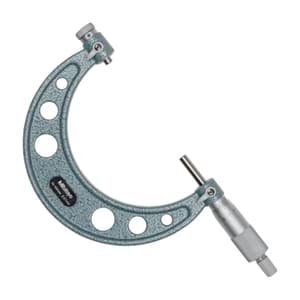

Mitutoyo 75 - 100 mm Interchangeable Anvil Screw Thread Micrometer (Spindle Tip Type), 126-128
Roll over the image to zoom in
Key Features
- Product Type: Screw Thread Micrometer
- Weight: 450 g
- Range (mm): 75 - 100 mm
- Graduation: 0.01mm
- Accuracy: ±5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,514 (Incl. of all taxes)
₹19,080 + ₹3,434 GST (18%)
MRP was MRP ₹25,440
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- 60 degree or 55 degree V-anvil and conical spindle (interchangeable) are optional, which are made of high-grade steel, hardened and precision ground.
- With ratchet stop for constant force.

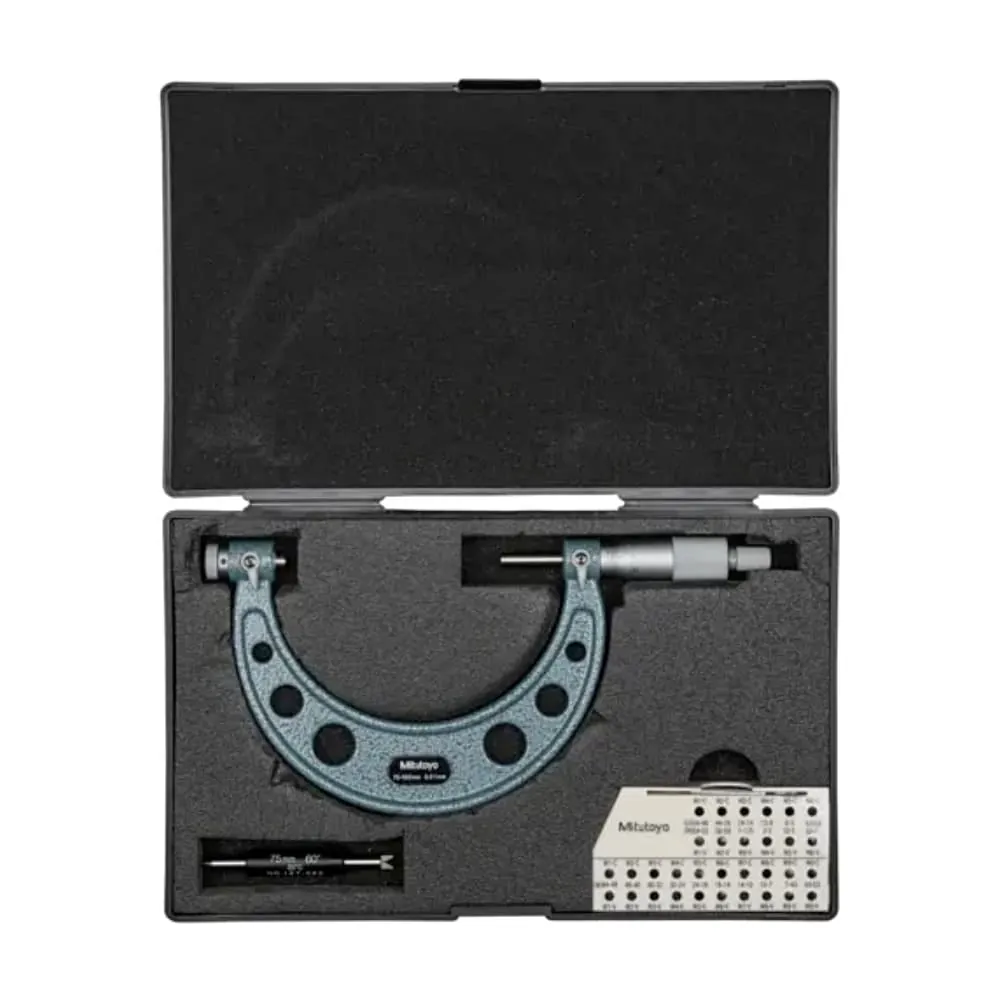

- Supplied in fitted plastic case.
Packing Content:
- 1x Screw Thread Micrometer
- 1x Spanner

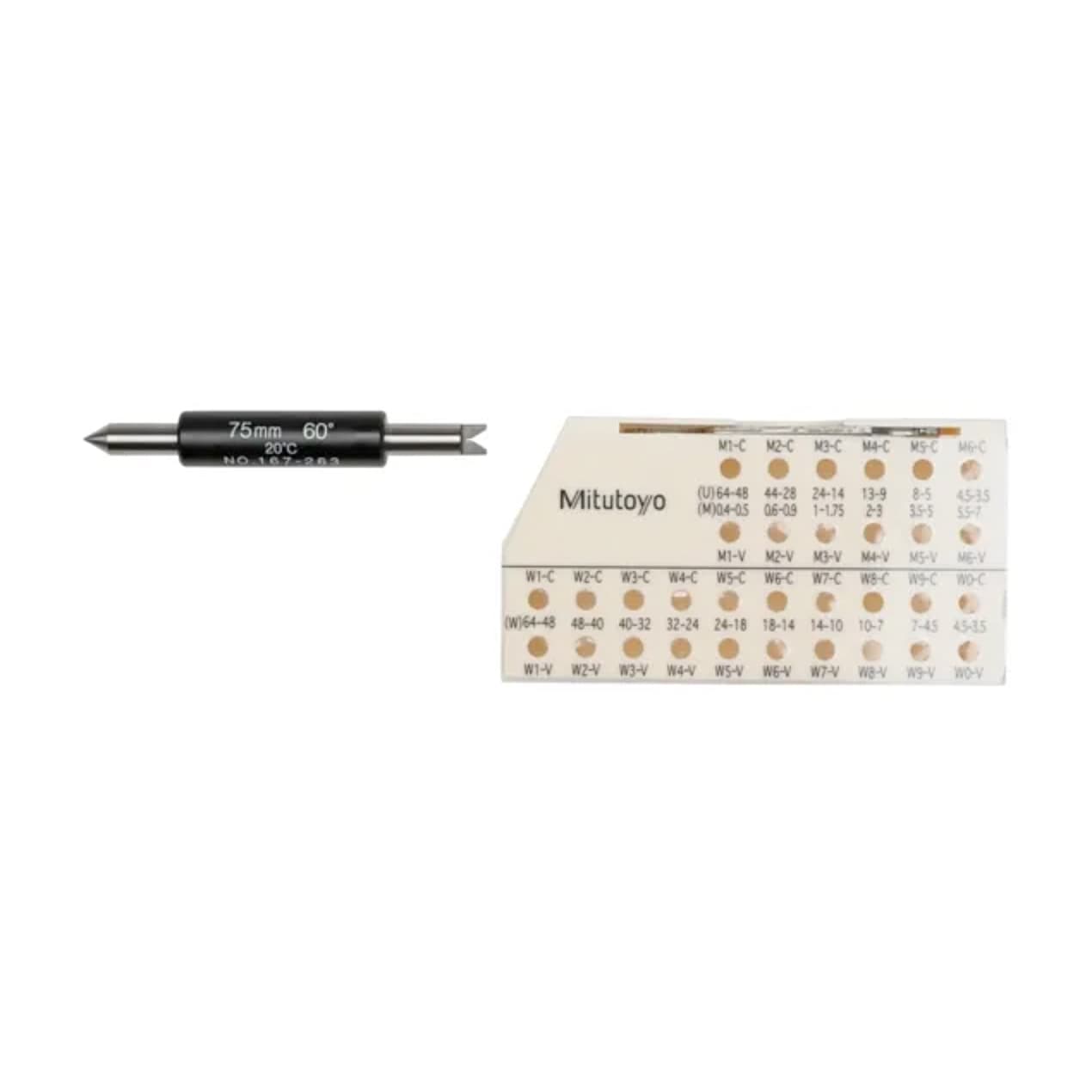

- 1x Setting Standard 60°
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 75 - 100 mm |
|---|---|
| Graduation | 0.01mm |
| Accuracy | ±5μm |
| Force Measurement | 5 - 10N |
| Spindle Feed Error | 3 |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
| Face Measurement | Interchangeable Anvil/Spindle Inserts (optional) |
| Scale | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| "a" Size (mm) | 65 mm |
| Length (mm) | 115.6 mm |
