Mitutoyo 75 - 100 mm QuantuMike Digital Micrometer With Bidirectional Output, 293-143-40

This is an IP65 micrometer offering movement four times as fast as a standard micrometer.

Features:

• Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
• Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
• Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
• Equipped with a calibration schedule warning function.
• GO/±NG judgement is performed by setting the upper and lower tolerance limits.
• Approach speed warning function for reliable measurements.
• Extraordinary battery life of 2 years (4000 h).
• Outstanding accuracy refer to EN ISO 3611 JMPE ±1 µm (0-25, 25-50 mm model).

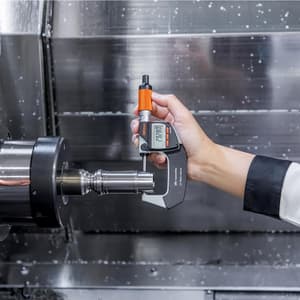

• Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
• A function lock protects the display against unauthorized use.
• Visibility is improved by enlarging the display unit.

Function:

• ABS / INC (INC ZERO)
• Auto Power OFF after 20 min. non use
• Calculation function (with formula)
• Calibration warning function
• Customizing keys
• Function lock
• GO/±NG judgement
• HOLD
• Low voltage alarm
• ON/OFF
• PRESET

Package Content:

• 1x Digital Micrometer
• 1x Spanner,
• CR2032 battery,
• Certificate of inspection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
