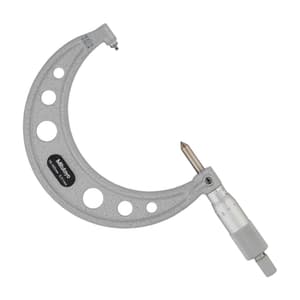

Mitutoyo 75 - 100 mm Screw Thread Micrometer (13 - 9 TPI), 125-118
Roll over the image to zoom in
Key Features
- Product Type: Screw Thread Micrometer
- Weight: 330 g
- Range (mm): 75 - 100 mm
- Thread to be measured (Metric): 2 - 3 mm
- Thread to be measured (Unified): 13 - 9 TPI
- Graduation: 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,222 (Incl. of all taxes)
₹11,205 + ₹2,017 GST (18%)
MRP was MRP ₹14,940
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Screw Thread Micrometer has a fixed anvil, offering the following benefits:
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Fixed anvil type.
- It directly indicates screw pitch diameter, meaning no need for calculation.
- Provided with a 60-degree V-anvil and conical spindle for easily measuring pitch diameters of metric or unified screw threads.
- With ratchet stop for constant force
- Supplied in a fitted plastic case.
- With a standard bar for zero point adjustment except
Packing Content:
- 1x Screw Thread Micrometer
- 1x Spanner
- 1x Setting Standard 60°
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 75 - 100 mm |
|---|---|
| Thread to be measured (Metric) | 2 - 3 mm |
| Thread to be measured (Unified) | 13 - 9 TPI |
| Graduation | 0.01 mm |
| Measuring Spindle | Ø6.35 mm (With Spindle Lock), 0.5 mm (Spindle Pitch) |
| Spindle Feed Error | 3 |
| Accuracy | ±(2+R/75)μm, R=max. range (mm) |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
| "a" Size (mm) | 63.5 mm |
| Length (mm) | 112 mm |
| Measuring Face | Hardened Steel, Fixed Anvil/spindle |
