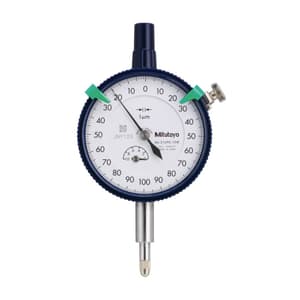

Mitutoyo Dial Indicator, Lug Back 1mm, 0,001mm, Jeweled Bearing, Shockpr, 2109A-10
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,310 (Incl. of all taxes)
₹4,500 + ₹810 GST (18%)
MRP was MRP ₹6,000
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
Standard Type, 1 mm Range, 0,001 mm Graduation:
This is a standard, metric dial indicator. It offers you the following benefits:
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
This is a standard, metric dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

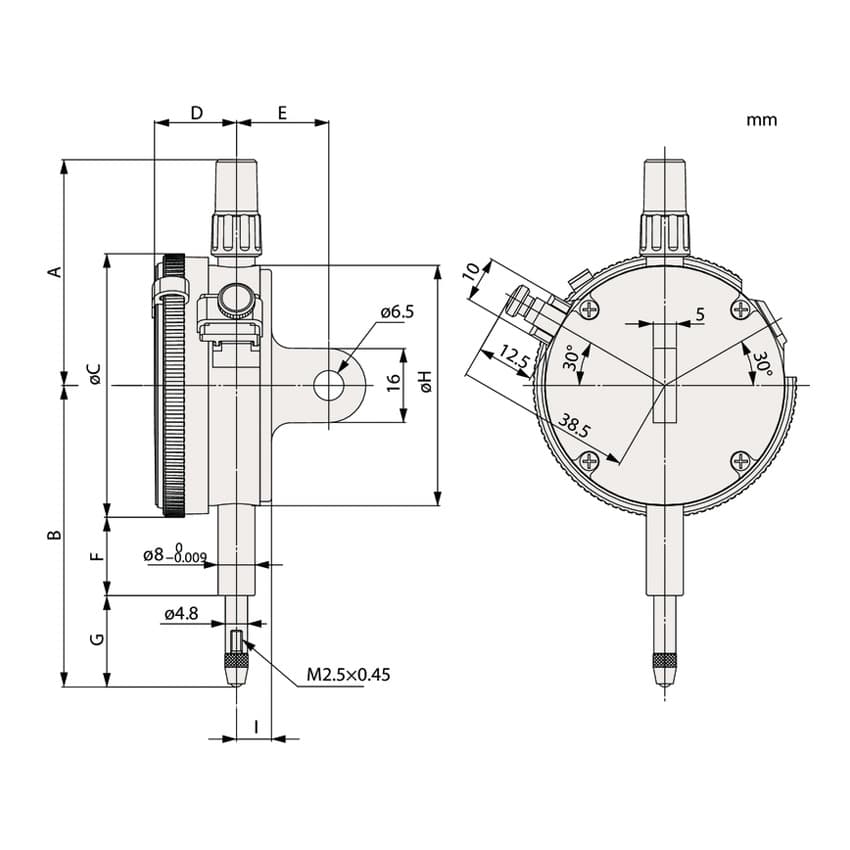

| A: | 48.8 mm |
| B: | 60.5 mm |
| C: | 57 mm |
| D: | 17.7 mm |
| E: | 20 mm |
| F: | 16.9 mm |
| G: | 15.1 mm |
| I: | 7.6 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 1 mm |
|---|---|
| Type of Product | Dial Indicator |
| Range per rev | 0.2 mm |
| Graduation | 0.001 mm |
| Scale | 0-100-0 |
| MPE any 1/10 revolution | 2.5 μm |
| MPE any 1/2 revolution | 4 μm |
| MPE any 1 revolution | 4.5 μm |
| MPE measuring range | 5 μm |
| H MPE (Hysteresis) | 2 μm |
| R MPE (Repeatability) | 1 μm |
| Mass | 148 g |
| Balanced dial | Yes |
| Shockproof | Yes |
| Jeweled bearing | Yes |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Stem | 8 mm |
| Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Delivered | with certificate of inspection, limit indicators |
