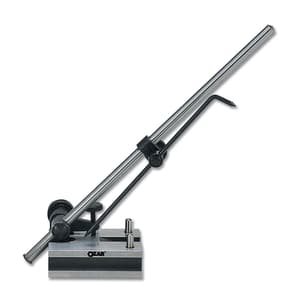

Ozar 100 x 90 x 30 mm Steel Base Surface Marking Gauge, ATS-0122
Roll over the image to zoom in
Key Features
- Product Type: Universal Surface Gauges
- Length (mm): 100 mm
- Width (mm): 90 mm
- Height (mm): 30 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,664 (Incl. of all taxes)
₹3,105 + ₹559 GST (18%)
MRP was MRP ₹4,140
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Ozar CatalogueNot available
Download Ozar CatalogueNot available
Highlights
- Basic tool for machinist and toolmakers for accurately scribing lines, transferring measurements and probing during inspection work
- Polished and hardened steel base with double ended scriber
- Bottom V-grooved for cylindrical work
- Front recessed for depressing spindle below base level
- Has fine adjustment for precise angular movement
- Base has 2 retractable pins to set against edge of a surface plate
- 1/4” (6.35 mm) hole drilled on adjustment knob for positioning a dial indicator
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 100 mm |
|---|---|
| Width (mm) | 90 mm |
| Height (mm) | 30 mm |
| Length of Spindle (mm) | 300 & 450 mm |
| Length of Spindle (inch) | 12 & 18 inch |
| Diameter of Spindle | 9.5 mm |
