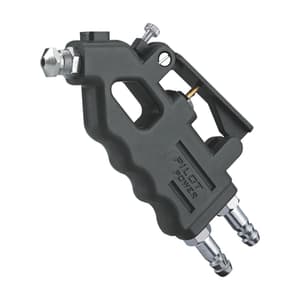

Pilot Power Foundry Gun, FG-03
Roll over the image to zoom in
Key Features
- Product Type: Air Gun
- Weight: 260 g
- Application: Foundry Gun
- Required Pressure: 3-4 kgs/sq.cm
- Material Output: 150 cc/min
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹806 (Incl. of all taxes)
₹683 + ₹123 GST (18%)
MRP was MRP ₹875
Save 22%
2 Business Days
1
84242000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
State of the art technology & rapid upgradation enables us to cater to all other surface preparation segments such as: Air, Water & Foam Cleaning, Oil & Foundry Spraying, Sandblasting & Underbody Coating systems. With our legacy and expertise, these tools have become an indispensable part of many industries.
- Triple action gun – air blow, spray, agitate.
- Adjustable & fine spray.

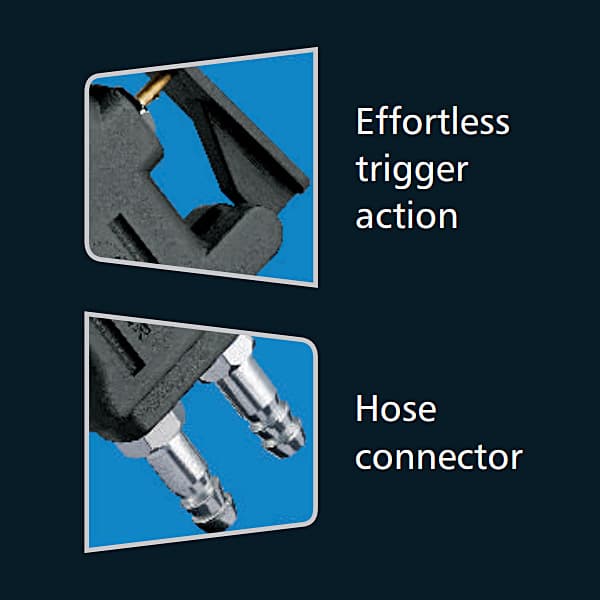

- Easily operated using finger & thumb action.
- Durable & long lasting metal construction.
Areas of Application:
 |
Foundry |
 |
Moulding |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | Foundry Gun |
|---|---|
| Feed | Suction |
| Gun Distance From Work Piece | 228.6 mm / 9 inch |
| Fluid Nozzle Orifice Dia. | 4 mm |
| Required Pressure | 3-4 kgs/sq.cm |
| Material Output | 150 cc/min |
| Max. Pattern Width | 100 mm |
| Min. Air-compressor | 1 HP |
| Air Consumption of Rated Pressure | 85 lit/min (3 c.f.m) |
