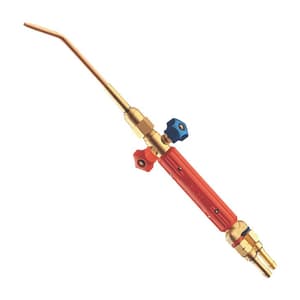

Pilot Swage Type Standard Gas Torch, GTS 00S
Roll over the image to zoom in
Key Features
- Product Type: Gas Cutting Torch
- Type: Standard
- Seal: Nylon Sealed Gas Valves
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,877 (Incl. of all taxes)
₹1,591 + ₹286 GST (18%)
MRP was MRP ₹2,040
Save 22%
2 Business Days
1
84681000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
Pilot Gas Torches are light in weight, convenient in handling and effective in all type of jobs involving metals offering the assurance of engineering professionalism.
All-new features are encased in a familiar package. With its ergonomic design, Pilot’s new next-gen welding torches deliver high performance coupled with easy handling and safety protection, ensuring results that surpass the ordinary!
- Sturdy high quality brass body.
- Nylon sealed gas valves preventing leak prolonging life service.
- Lightweight & convenient to handle.

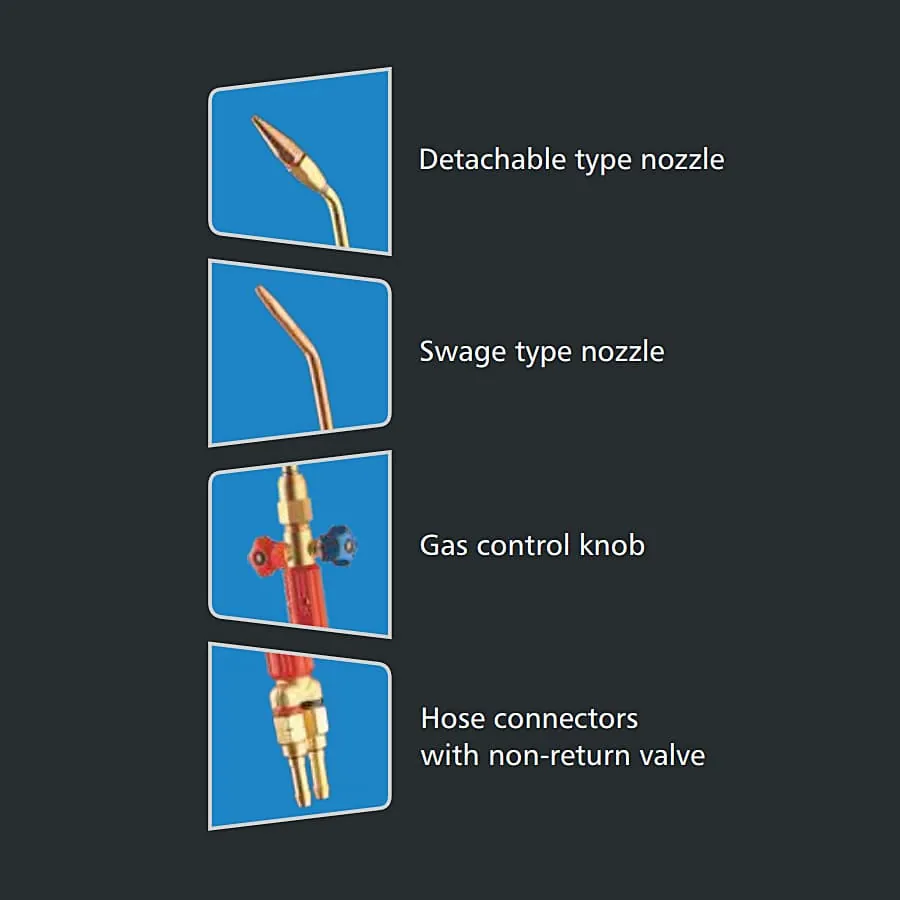

- Swage Type Nozzles Detachable nozzles available in sizes of 0, 1, 2 & 3.
Areas of Application:
 |
Garages |
 |
Service Stations |
 |
Wrought Iron Furniture |
Nozzle Selection Chart:
| Welding thickness MS | mm | 0.6 | 0.91 | 1.2 | 2.1 | 2.6 | 3.2 | 3.9 | 4.8 | 6.4 | 8 |
| Tip number | 0 | 1 | 2 | 3 | 5 | 7 | 10 | 13 | 18 | 25 | |
| Oxygen pressure | kg/sq. cm | 0.14 | 0.14 | 0.14 | 0.14 | 0.14 | 0.28 | 0.28 | 0.28 | 0.42 | 0.42 |
| Acetylene pressure | kg/sq. cm | 0.14 | 0.14 | 0.14 | 0.14 | 0.14 | 0.28 | 0.28 | 0.28 | 0.42 | 0.42 |
| Consumption of each gas | cu m/hr | 0.03 | 0.03 | 0.06 | 0.09 | 0.14 | 0.02 | 0.03 | 0.04 | 0.05 | 0.07 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type | Standard |
|---|---|
| Seal | Nylon Sealed Gas Valves |
