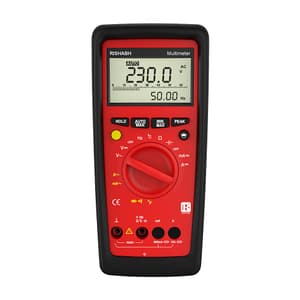

Rishabh 4 Digit / 6600 Count Digital Multimeter, 612

RISHABH 612 is a rugged, dual display, 6600 count, portable, universal application mutimeter with higher current measuring range of up to 660A( with Clamp). The other key features include Data Hold and Peak Hold.

Features:

• Diode measurement and continuity testing
• Hold measurement .
• Relative measurement.
• Duty cycle (%) measurement
• Temperature measurement with K type Thermocouple
• Peak value measurement.

Applications:

• Dual Display
• Peak Hold
• Min/Max Function
• Temperature Measurement
• Indication of Negative values on the analog scale
• Analog Scale
• Protection from Dust & Water
• Applicable International Safety Standards
• Auto Power OFF
• Hold
• Relative Measurement (REL)
• Automatic Blocking System
• Auto & Manual Ranging Modes
• Diode & Continuity Testing
• Backlit
• Continuous ON Mode

Reference conditions for Accuracy:

• Reference Temperature: 23°C ± 2K
• Relative Humidity: 45%...55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50 or 60Hz ±2%
• Battery Voltage:  3V ± 0.1V

Applicable regulations and standards:

• EMC Immunity:  IEC 61326-1:2012, Table A.1
• Immunity: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
• Safety: IEC 61010-1-2010
• IP for Water & Dust: IEC 60529
• Pollution degree: 2
• Installation Category: 600V CAT lV / 1000V CAT lll
• High Voltage Test: 6.7 kV (IEC 61010-1-2010)
• Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality

Power Supply:

• Battery: 2 X 1.5V Cells
• Battery Type: Alkaline manganese Dioxide cells.
• Battery Life: 600 hrs for VDC & ADC / 300 hrs for VAD & AAC

Package Content:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case
