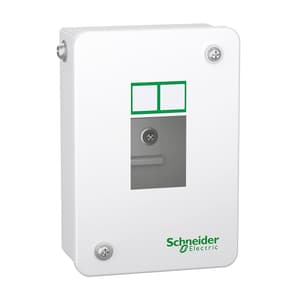

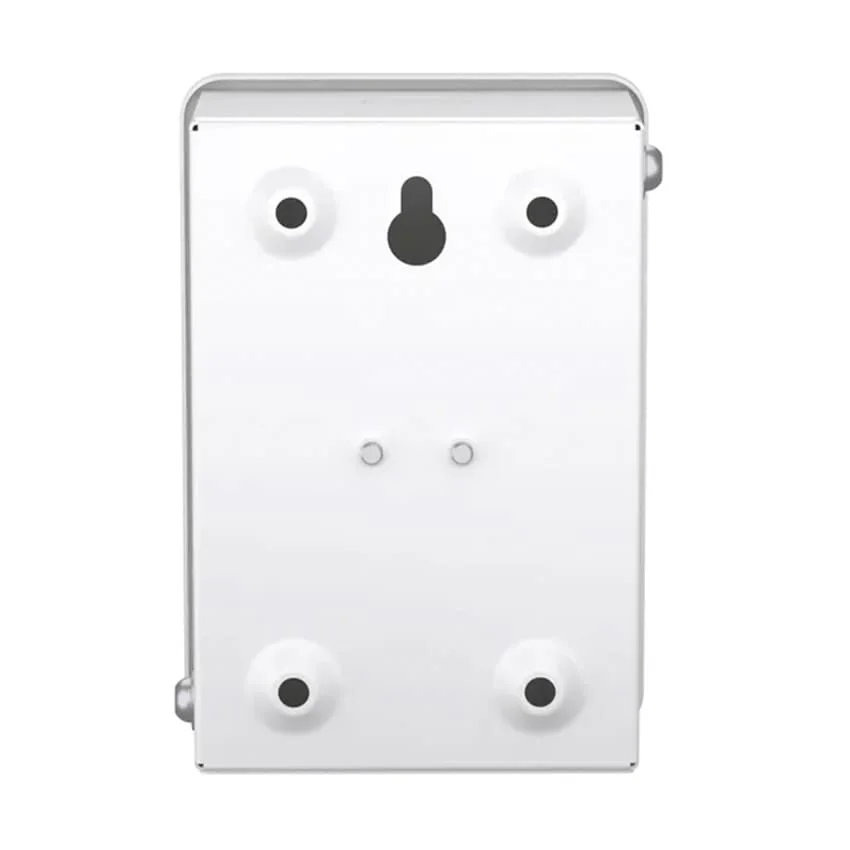

Schneider Electric 2 Way Single Door Metal Enclosures (IP30), A9HMES02
Roll over the image to zoom in
Key Features
- Product Type: Modular Enclosures
- Total Module: 1 / 2 Module
- Colour: White (RAL 9003)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹640 (Incl. of all taxes)
₹542 + ₹98 GST (18%)
MRP was MRP ₹1,356
Save 60%
7 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Acti9 distribution board comes with single metal door for door opening. This distribution board gives total flexibility to mount any type of modular devices as per load requirement. It allows the mounting of modular devices on 1 row of 2 modules of 18mm (2 modules total). The dimensions are (W) 108mm x (H) 156mm x (D) 65mm.
The color of the distribution board is white (RAL 9003). The degree of protection is IP30, IK08 with the single metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.
Complementary
| Product compatibility | Modular device |
| Enclosure mounting |
|
| Number of horizontal rows | 1 |
| Number of 18 mm modules per row | 2 |
| Total number of 18 mm modules | 2 |
| Enclosure/cubicle description | Single door enclosure |
| Enclosure material |
|
| Height | 156 mm external: |
| Width | 108 mm external: |
| Depth | 65 mm external: |
Environment
| IP degree of protection | IP30 |
| IK degree of protection | IK08 |
| Standards |
|
| Product certifications |
|
Packing Units
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 16 cm |
| Package 1 Length | 11.2 cm |
| Package 1 Weight | 0.95 kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 1 / 2 Module |
|---|---|
| Range | Acti9 |
| Product Name | Metal Enclosures |
| Device Application | Distribution |
| Product Or Component Type | Consumer Unit |
| Colour | White (RAL 9003) |
