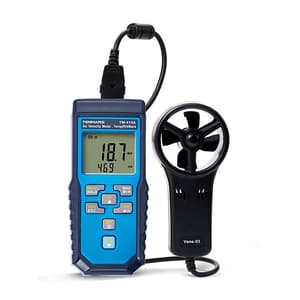

Tenmars 0.4 ~ 30 m/s Air Velocity Meter, TM-413A
Roll over the image to zoom in
Key Features
- Product Type: Anemometer
- Weight: 296 g
- Air Velocity Measurement (m/s): 0.4 ~ 30 m/s
- Air Flow Calculation: 0 ~ 9999 (CMM & CFM)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,656 (Incl. of all taxes)
₹12,420 + ₹2,236 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Tenmars CatalogueNot available
Download Tenmars CatalogueNot available
Highlights
TM-413A measures air speed, temperature and humidity. It is ideal for spot measurements at air outlets on account of its 30mm vane. In addition to air speed and temperature, it also measures air moisture and absolute pressure. In this way, air conditions can be reliably checked.
Features:
- Air flow calculates the function.
- Max/Min/Avg and data hold.
- Auto power off with disabled function.
- Memory recall function.
- Backlight function.
- Absolute Pressure Sensor
- Humidity Sensor
Functions:
- Velocity
- Flow
- 99 Record
- Temperature
- Humidity
Technical Data:
| Velocity | |||
| Unit | Range | Resolution | Accuracy |
| m/s | 0.4 ~ 30 | 0.1 | ≤10m/s ±(3.0+0.5) >10m/s ±(3.5%+1) |
| Km/hr(Kph) | 1.5 ~ 106 | 0.1 | ≤36Km/hr ±(3.0%+1.8) >36Km/hr ±(3.5%+3.6) |
| mph | 0.9 ~ 66 | 0.1 | ≤22mph ±(3.0%+1.1) >22mph ±(3.5%+2.2) |
| Knots(kts) | 0.8 ~ 58 | 0.1 | ≤19Knots ±(3.0%+1) >19Knots ±(3.5?+1.9) |
| ft/min(fpm) | 79 ~ 5866 | 1 | ≤2000ft/min ±(3.0%+100) >2000ft/min ±(3.5%+200) |
| Beaufort | 1 ~ 8 | 1 | -- |
| Air Flow Calculation | |||
| Unit | Range | Resolution | Accuracy |
| CMM | 0 ~ 9999 | 1 | -- |
| CFM | 0 ~ 9999 | 1 | -- |
| Temperature | |||
| Unit | Range | Resolution | Accuracy |
| °C | -20 ~ 60 | 0.1 | ±1°C |
| °F | -4 ~ 140 | 0.1 | ±1.8°F |
| Humidity | |||
| Unit | Range | Resolution | Accuracy @25°C |
| %RH | 20 ~ 80 | 0.1 | ±3.5%RH |
| %RH | <20, >80 | 0.1 | ±5%RH |
| Absolute Pressure | |||
| Unit | Range | Resolution | Accuracy |
| hPa | 350 ~ 1100 | 0.1 | ±2hPa |
| mmHg | 263 ~ 825 | 0.1 | ±1.5mm Hg |
| inHg | 10.3 ~ 32 | 0.1 | ±0.1 |
Package Content:
- 1x Air Velocity Meter
- 1x 9V battery
- 1x Probe
- 1x Bag
- User’s manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Air Velocity Measurement (m/s) | 0.4 ~ 30 m/s |
|---|---|
| Air Flow Calculation | 0 ~ 9999 (CMM & CFM) |
| Temperature Measurement | -20 ~ 60°C (-4 ~ 140°F) |
| Humidity | 20 ~ 80%RH |
| Memory Capacity | 99 Records |
| High Sensitivity | 0.4m/s |
| Battery | 9 Volt battery |
| Battery Lift | Approx. Continuous Used 100 Hours |
| Shutoff Rate Power | 3μA |
| Operate Maximum Power | 25mA |
| Cable Length | 95 cm |

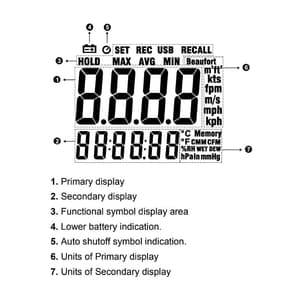

| Display Type | Monochrome LCD with Backlight |
| Display Size (W x L) | 42 x 33 mm |
| Instrument Dimensions (LxWxH) | 140 x 65 x 38 mm |
| Probe Dimensions (LxWxH) | 135 x 67 x 31 mm |
