Testo 10V - 690V AC/DC Voltage Tester, Testo 750-3

Shop all Testo

SKU: ME.EL.EL.00067

Model: 0590 7503

Roll over the image to zoom in


Key Features

  • Product Type: Electrical Testers
  • Weight: 295 g
  • Measuring Range (AC/DC): 10 to 690V
  • Resolution: 1V
See all product information

ToolBuy Benefits

₹12,067 (Incl. of all taxes)

₹10,226 + ₹1,841 GST (18%)

MRP was MRP ₹12,030

Save 15%



3 Business Days

1

90303310

Download Product LeafletNot available
Download Testo CatalogueNot available

Highlights

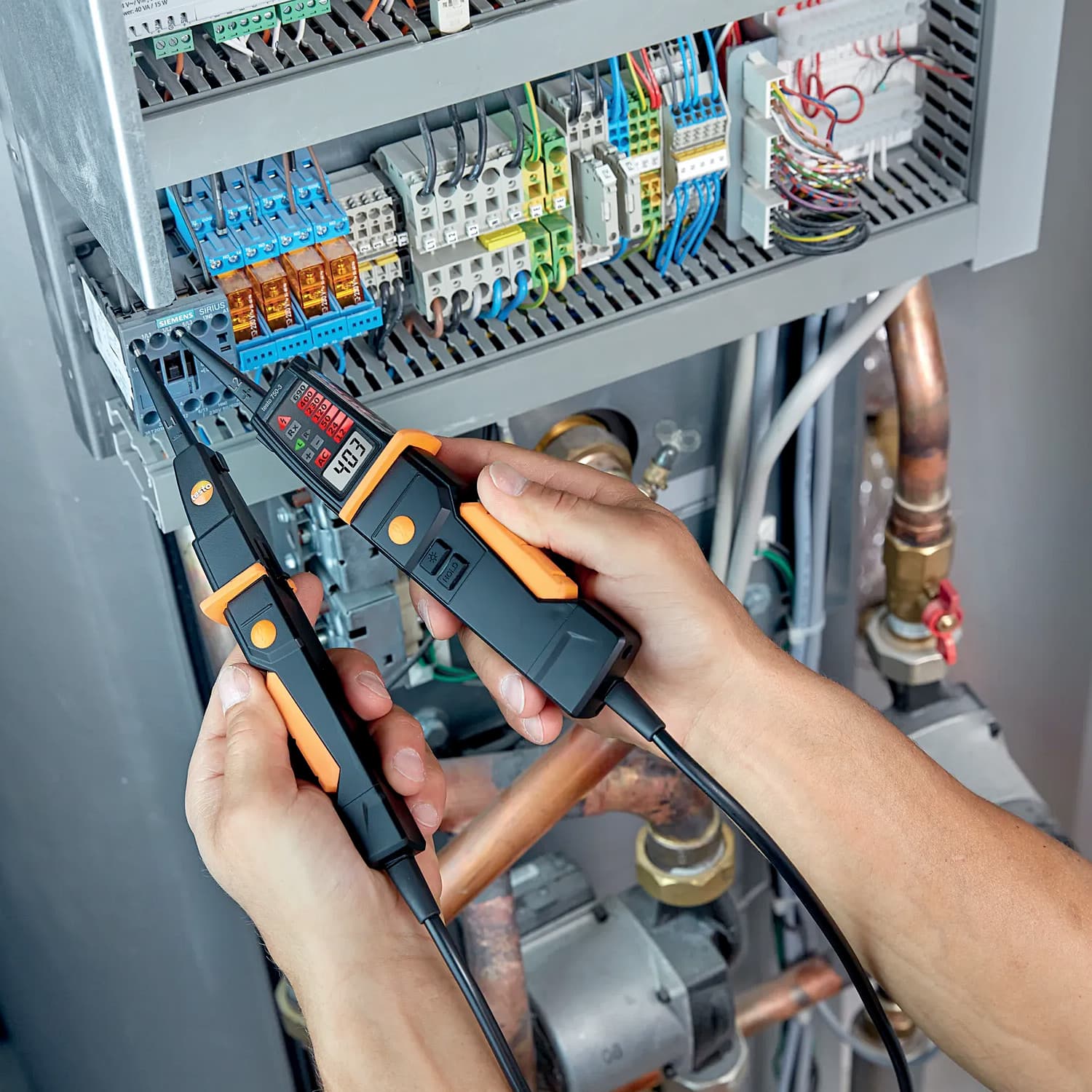

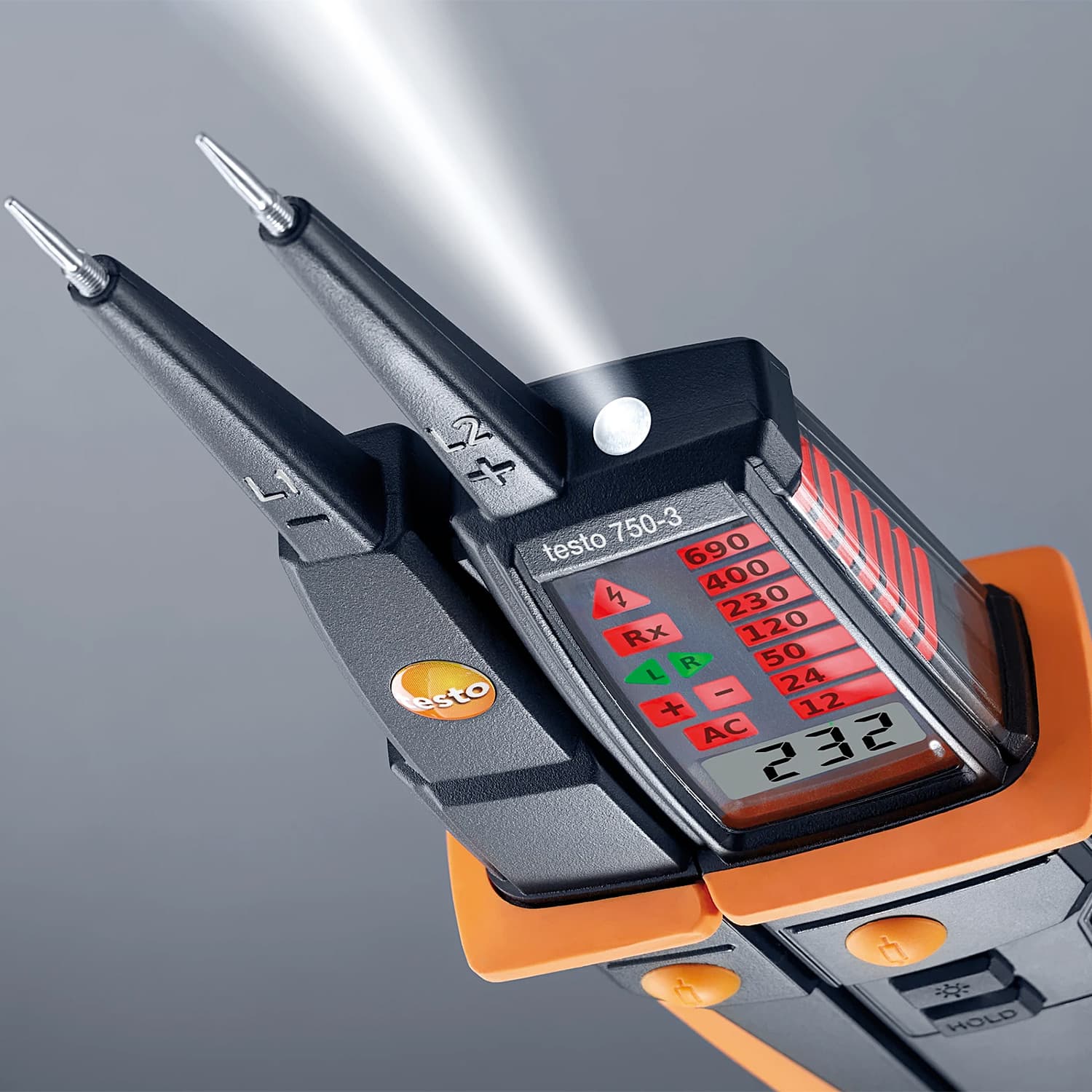

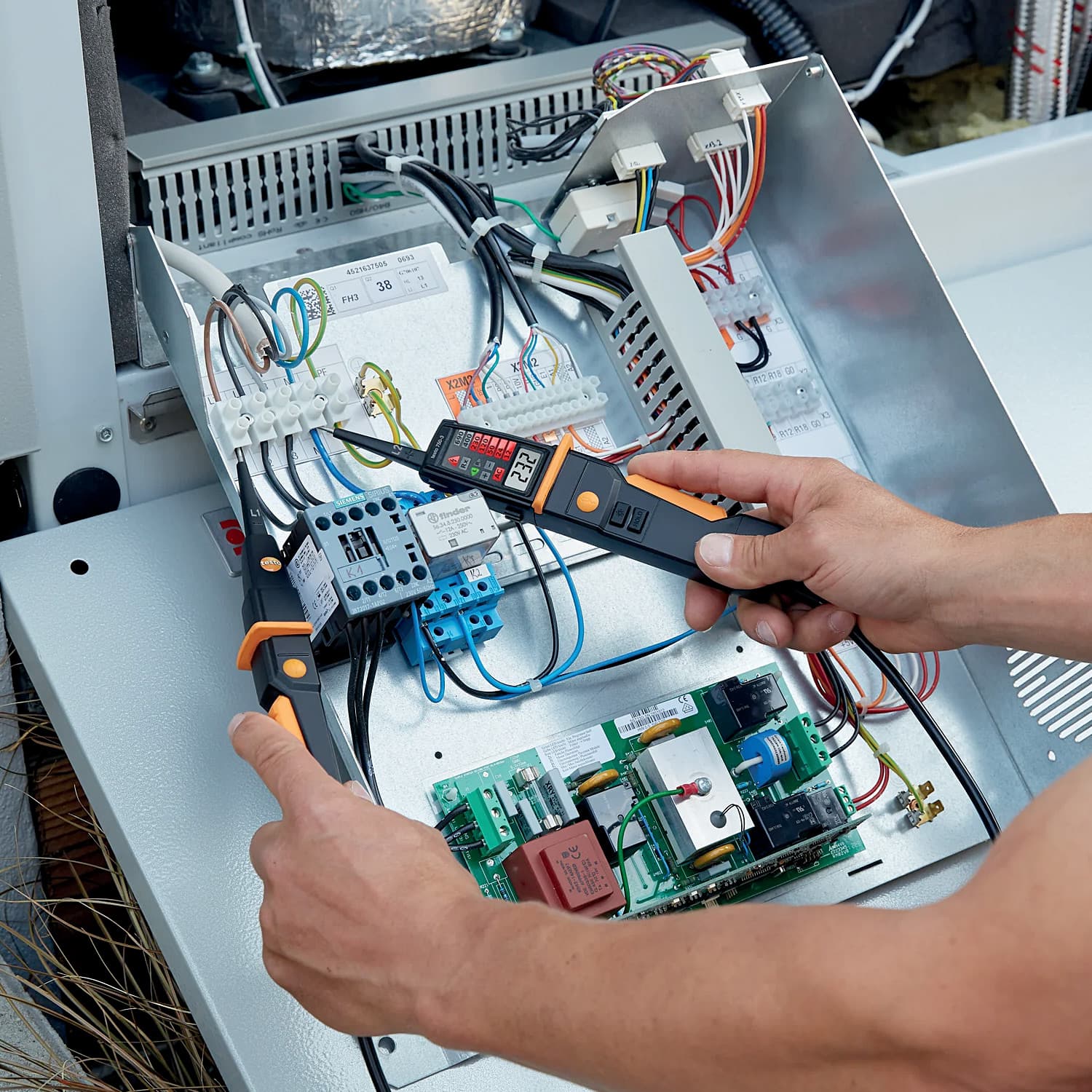

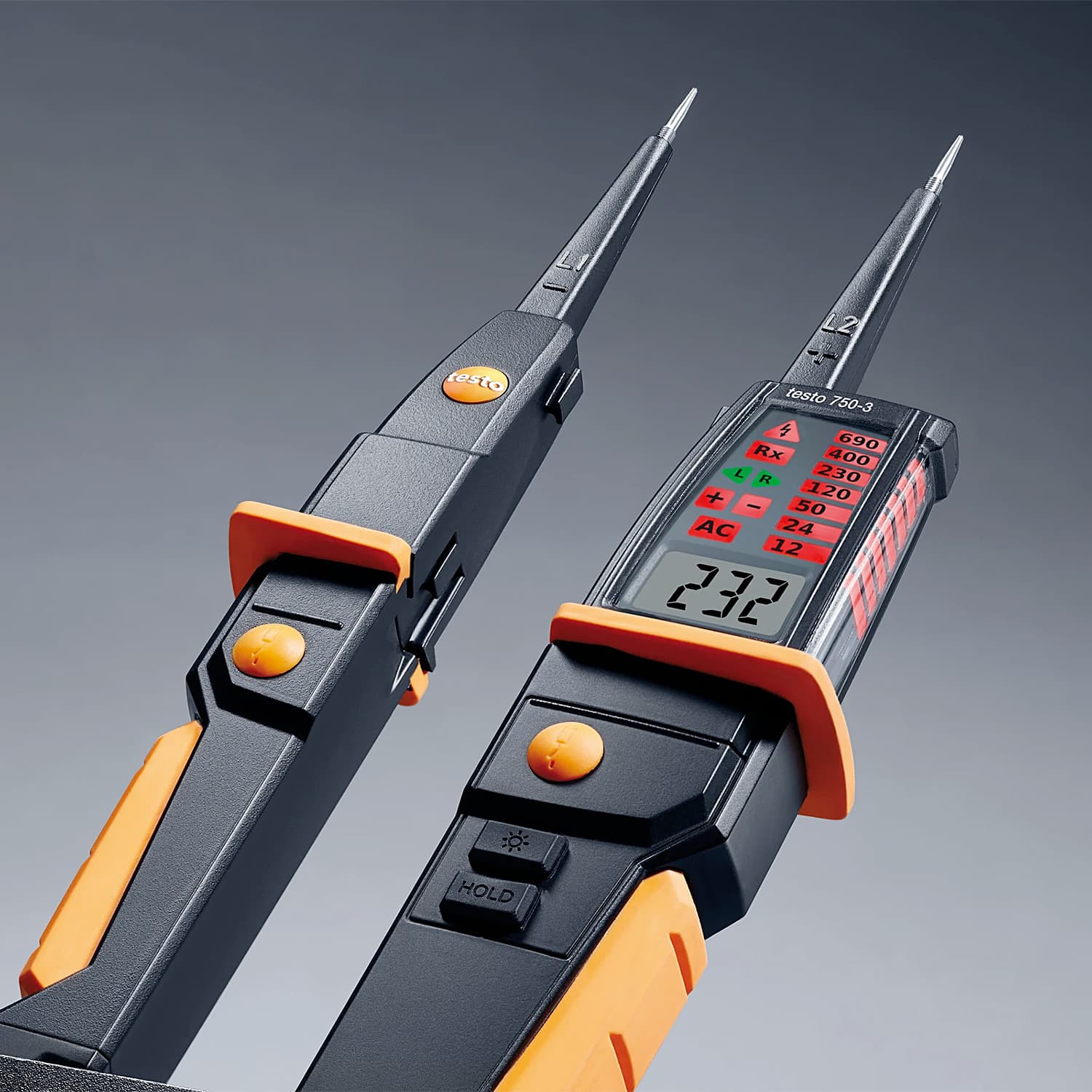

The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing. The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.


Features:

  • Continuity testing, Display ligthing, Hold & RDC/RC trigger function
  • Rotating magnetic field testing, Single pole phase testing & Measuring point illumination
  • Clear, patented all-round LED display
  • In accordance with DIN EN 61243-3:2014 and CAT III
  • LC display showing the reading
  • RC trigger function and vibrating load buttons

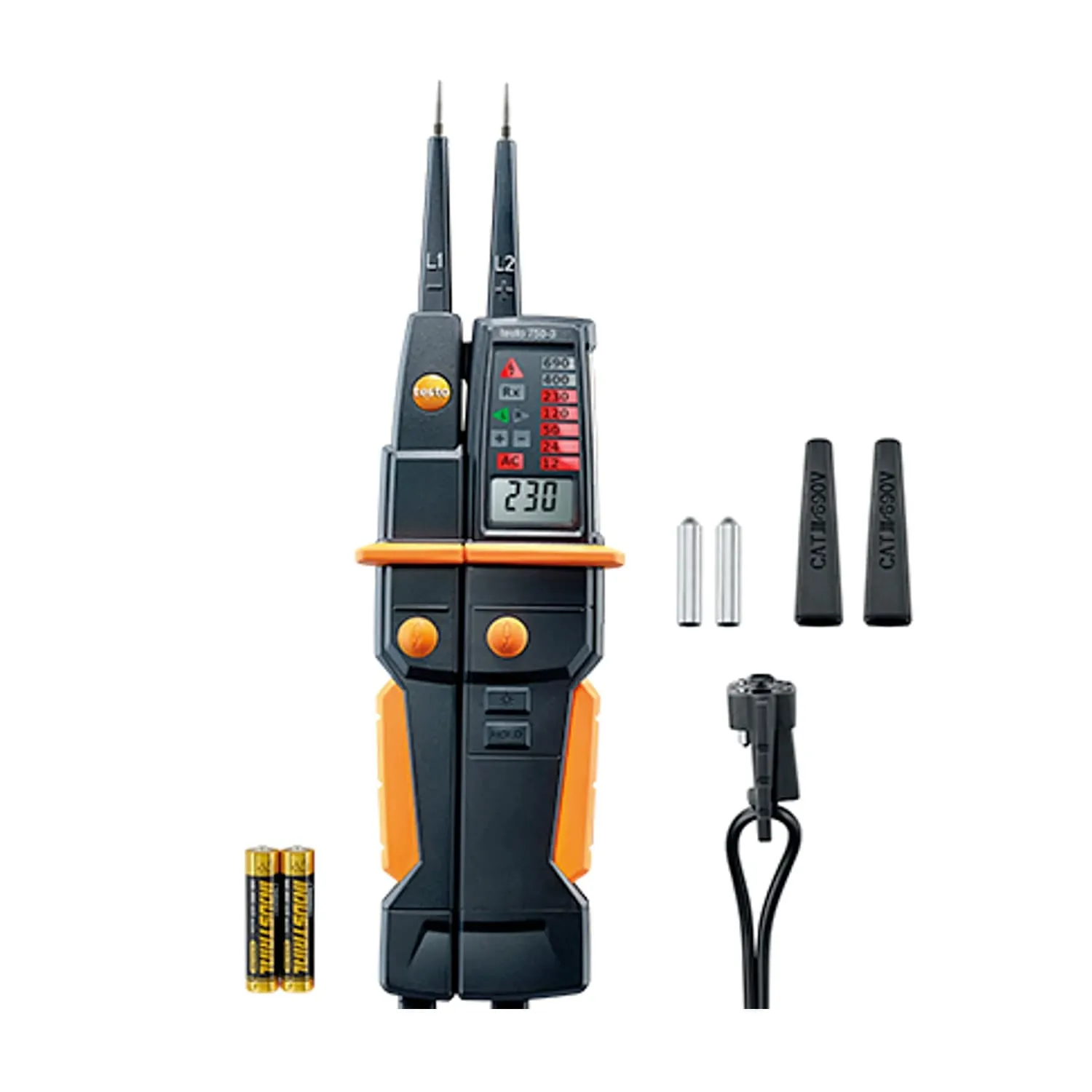

Package Content:

  • 1x Voltage Tester
  • 2x AAA Micro Batteries
  • Measuring Tip Protector
  • Measuring Tip Caps
  • Instruction Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Testo 10V - 690V AC/DC Voltage Tester, Testo 750-3
Measuring Range (AC/DC)10 to 690V
Resolution1V
Accuracy± (3 % of mv + 5 Digits)
Operating Humidity0 to 95%RH
Operating Temperature-10 to +50°C
Storage Temperature-15 to +60°C
Product ColourBlack
Protection ClassIP64
StandardsEN 61243-3; EN 61326-1; EN 61010-1
Battery Type2 AAA Micro Batteries
Display SizeOne-Line
Display TypeLCD
Overvoltage CategoryCAT IV 600V; CAT III 690V
AuthorizationsTÜV; CSA; CE
Dimensions (mm)270 x 72 x 35 mm
Part Number0590 7503
