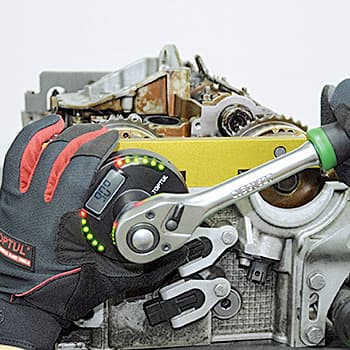

Toptul 10 - 200 Nm Digital Toque Angle Adapter (1/2 Sq. Drive), DTA-200A
Roll over the image to zoom in
Key Features
- Product Type: Digital Torque Adapter
- Torque Value: 10 - 200 nm
- Drive Size: 1/2 Inch
- length: 80 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,306 (Incl. of all taxes)
₹20,598 + ₹3,708 GST (18%)
MRP was MRP ₹25,120
Save 18%
3 Business Days
1
82041120
Download Product LeafletNot available
Download Toptul CatalogueNot available
Download Toptul CatalogueNot available
Highlights
TOPTUL The Mark of Professional Tools carries a wide variety of Digital Torque / Angle Adapter for you. You can find almost all kinds of Digital Torque / Angle Adapter at a reasonable price here.
- Torque Accuracy: CW ±3% & CCW ±4% tolerance of the set scale value
- Angle Accuracy: ±2° (rotating 90° at speed of 30°/sec)
- Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
- Unit Selection: Nm, Ft-Lb, In-Lb, Kg-cm, degree
- Rotation angle range up to 999°
- Storage Memory: 50 Readings
- 12 way lights and buzzer when torque value is reached
- Low battery indicator and auto shut off (after 2 minutes)
- Tested and certified according to DIN EN ISO 6789, BS EN 26789, ASME B107.28
Features:
| Torque Accuracy | CW ± 3% / CCW ±4 % |
| Angle Accuracy | ± 2° (rotating 90° at speed of 30°/sec) |
| Storage Memory | 50 Readings |
| Unit Selection | Nm, Ft-Lb, In-Lb, Kg-cm, degree |
| Display Resolution | 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 1 Kg-cm |
| Operating Mode | Peak Hold Mode / Track Mode |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Battery | 1.5V AAA x 2pcs |
| Battery Life | 24 Hours |
| Auto Shut Off | 2 Minutes (when not in use) |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Torque Value | 10 - 200 nm |
|---|---|
| Drive Size | 1/2 Inch |
| length | 80 mm |
| Torque Range (Ft - Lb) | 7.4 ~ 147.5 |
| Torque Range (In - Lb) | 88 ~ 1770 |
| Torque Range (Kg - cm) | 102 ~ 2041 |
