Toptul Multifunctional Voltage Tester with Digital Display, EAAA0169

Shop all Toptul

SKU: ME.EL.EL.00006

Model: EAAA0169

Roll over the image to zoom in

Visit Toptul Store

Key Features

See all product information

ToolBuy Benefits

₹4,787 (Incl. of all taxes)

₹4,057 + ₹730 GST (18%)

MRP was MRP ₹4,947

Save 18%

3 Business Days

1

82054000

Download Product LeafletNot available
Download Toptul CatalogueNot available

Highlights

  • AC and DC voltage tests up to 690V with LED and LCD display
  • Continuity tester with acoustic and optical display
  • Phase rotation indicator for 3-phase systems
  • Polarity detection positive / negative
  • High voltage indication (≥ 50V AC/DC)

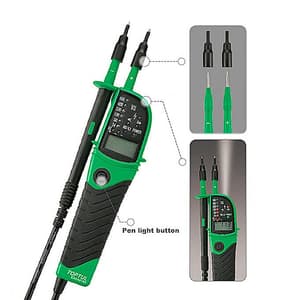

  • Built-in flashlight for testing in dark places
  • Dust and water protection to IP 64
  • Powered by 2 x AAA batteries (not included)


Features:

Specifications:
Voltage Range 12 ~ 690V AC / DC
Frequency Range 0 - 70 Hz (AC)
LED Voltage Indication 12 / 24 / 50 / 120 / 230 / 400 / 690V
LCD Resolution 7 ~ 690V
Peak Current <3.5mA (at 690V)
Continuity Test 0 ~ 550kΩ
Operating Temperature -10 ~ 55°C
Storage Temperature -20 ~ 60°C
Humidity Up to 85% non-condensing
Operating Altitude Altitude up to 2000m
Testing Standard EN 61243-3 / IEC 61243-3
EN 61010-1 / IEC 61010-1
Measurement Category CAT III 690V / CAT IV 600V
Pollution Degree 2
Power AAA batteries x 2 pcs (not included)

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.



Specifications

Technical specifications for Toptul Multifunctional Voltage Tester with Digital Display, EAAA0169
AC and DC voltage690 V
Operating Temperature-10 ~ 55°C
Frequency0 - 70 Hz (AC)
Power SupplyAAA batteries x 2 Pcs
