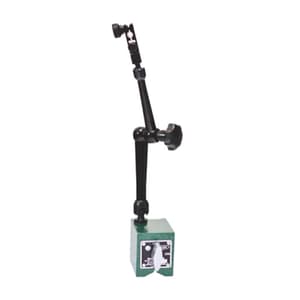

Ultra 70 kgf Universal Clamping Magnetic Base with Fine Adjustment, UL 50413
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Stand
- Magnetic Force (kgf): 70 Kgf
- Series: UL - 504
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,894 (Incl. of all taxes)
₹3,300 + ₹594 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Can be locked to any position in 360º by a Central lock.
- Used as a holding device for dial indicator.
- Heavy & rigid construction of base & column.
- Center Knob is of metal for extra life.
- Dovetail slot for lever type dial.
- Fine adjustment for accurate setting.
- Base V can be clamped to shaft of Ø20 to Ø120.
- Can Hold 8 mm (6 mm with sleeve) stem diameter of dial.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnetic Force (kgf) | 70 Kgf |
|---|---|
| Series | UL - 504 |
| Arm Length | 291 mm (11.45") |
| L1 | 110 mm (4.33") |
| L2 | 101 mm (3.97") |
| Overall Height (H + L) | 355 mm (13.97") |
| Holding Stem | Ø8 mm (0.31") |
| Dimensions (L x W x H) | 70 x 48 x 64 mm ( 2.75 x 1.89 x 2.52" ) |
| Remark | With Fine Adjustment & Dovetail Groove |
