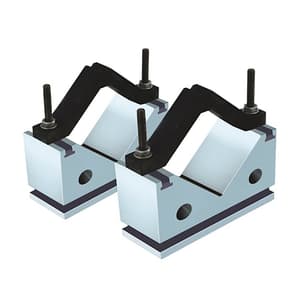

Ultra 75 x 200 x 125 mm Hardened & Ground "V" Block, UL 10303
Roll over the image to zoom in
Key Features
- Product Type: 'V' Blocks With Clamps
- Length (mm): 75 mm
- Width (mm): 200 mm
- Height (mm): 125 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹28,792 (Incl. of all taxes)
₹24,400 + ₹4,392 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Used for Grinding, Light Milling, Drilling & Inspection of Round & Square Jobs.
- Accuracy for Flatness, Squareness and Parallelism within 0.010mm up to 150W above that 0.020mm up to 200W.
- Supplied in perfect matched pair.
- Supplied with clamp which can be used from both sides to suit job dimensions.
- Holds & Clamps the heavy jobs rigidly.
- Can also be used for end face, side face and right angle Grinding
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 75 mm |
|---|---|
| Width (mm) | 200 mm |
| Height (mm) | 125 mm |
| Size (inch) | 4 inch |
| Range (mm) | Ø5 - 150 mm |
| Hardness Rockwell | 60±3 HRC |
| Series | UL - 103 |
