UNI-T -0.100 ~ 6.000MPa Wireless Digital Pressure Gauge with Temperature Clamp, UT336P KIT
Roll over the image to zoom in
Key Features
- Product Type: Pressure Gauge
- Weight: 250 g
- Range: -0.100 ~ 6.000MPa
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,124 (Incl. of all taxes)
₹6,885 + ₹1,239 GST (18%)
MRP was MRP ₹8,100
Save 15%
5 Business Days
1
–
Download UNI-T CatalogueNot available
Highlights
UT336P KIT allows users to purchase a pressure gauge, temperature clamp, and small connection accessories in one go. It is specifically designed for the installation, debugging, and maintenance of refrigeration and heat pump systems. It accurately measures system pressure and features offline data logging, supporting long-term real-time monitoring. UT336P is equipped with a 3.5mm temperature clamp interface, and when used with the UT-T19 temperature clamp, users can view key data such as high/low pressure refrigerant pipe temperature and superheat/subcooling on the app, ensuring efficient and stable system operation. It is suitable for a wide range of refrigeration and air conditioning applications. Compatible with A1 / A2L / A2 / A3 and part of B1 refrigerants. The device cannot be used with ammonia refrigerants (NH3 / R717).
Features:
- Hook design for easy fixing
- Settable High/Low pressure alarms
- High/low pressure indication
- Switch between multiple units
- Free Bluetooth APP connection
- Up to 8000 data storage with exportable data reports, supports off-line recording
- Compatible with temperature clamp UT-T19
- 10 refrigerants built in the device, 90+ available for easy switch through the app
Functions:
- High/Low Pressure Switch
- Pressure Zeroing
- Screen Backlight
- Phone APPs (iENV)
- Auto Power Off
- Firmware Upgrade

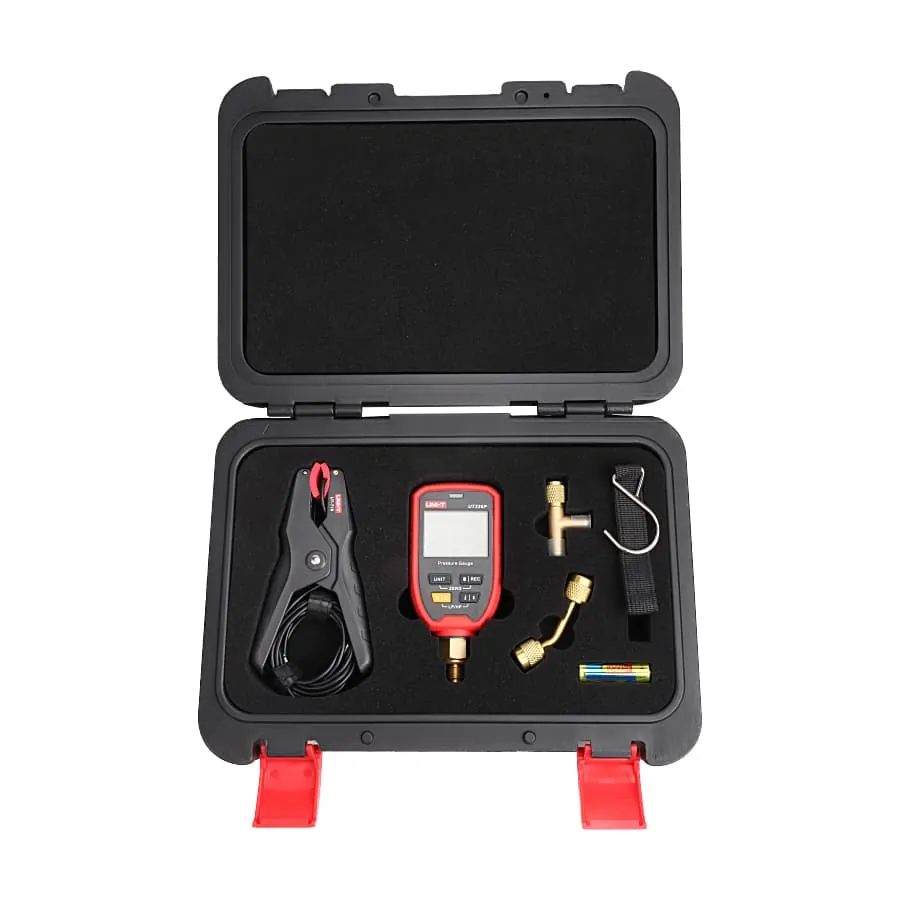

Package Content:
- Wireless Pressure Gauge
- Temperature Clamp
- Quick Start Guide
- Safety Guide
- Download Guide of Common Files
- 3x AA Batteries
- Hand Strap
- Toolbox
- Tee Connection 1/4" SAE
- Bent Adapter 1/4" SAE
Technical Data:
| Range | Resolution | |
| Pressure Measurement | -1 to 60bar | 0.01bar |
| -1.01 to 61.18kg/cm² | 0.01kg/cm² | |
| -75.0 to 4,500.3cmHg | 0.1cmHg | |
| -14.5 to 870.2psi | 0.1psi | |
| -29.52 to 1,771.8inHg | 0.1in/Hg | |
| -100 to 6000kPa | 1kPa | |
| -0.100 to 6.000MPa | 0.001MPa | |
| Temperature Measurement | -50°C ~ +150°C | 0.1°C |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range | -0.100 ~ 6.000MPa |
|---|---|
| Pressure Measurement Accuracy | ±0.5%FS |
| Temperature Measurement Range | -50°C ~ +150°C |
| Temperature Measurement Accuracy | ±0.5°C (-50 ~ 80°C), ±1°C (Others) |
| Wire Length | 2 Mtr |
| Pressure Units | Bar / kg/cm2 / cmHg / psi / inHg / kPa / MPa |
| Temperature Units | °C / °F |
| Refrigerant Types | 10 types are Preset (Set via APPs, Total 94) |
| Evaporating/Condensing Temperature | As per the Refrigerant Type |
| Data Record | 8000 |
| Data Record Interval | 1s ~ 1h (APP Setting) |
| LED Indicators | Red (HP) / Blue (LP) |
| Temperature Clamp Port | 3.5 mm Port |
| Battery Life | 100h (Alkaline Battery; Backlight OFF; LED ON; 1-min record interval) |
| IP Rating | IP54 |
| Pressure Connector | 1/4 inch SAE Connector |
| Over Range | OL (> 65bar) |
| Working Temperature & Humidity | -10 ~ +50°C, <90%RH |
| Storage Temperature & Humidity | -20 ~ +60°C, < 80%RH |
| Certifications | CE, RoHS |
| Language | EN, FR, DE, IT, ES, SV, PL, CZ |
| Power Supply | 3x Alkaline AA Battery |
| Dimensions (mm) | 145 x 68 x 39 mm |
