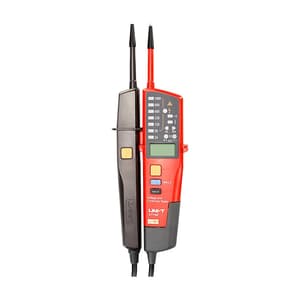

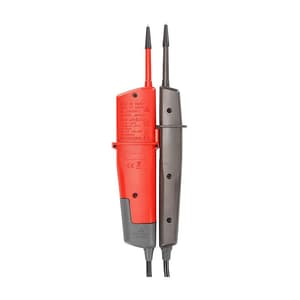

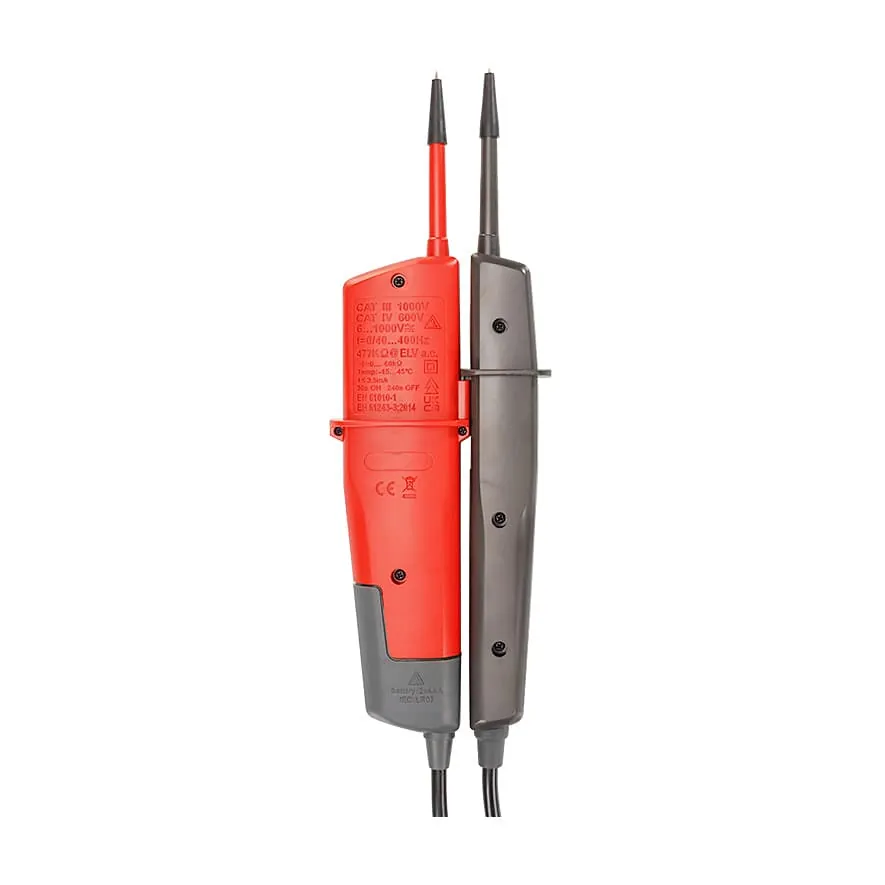

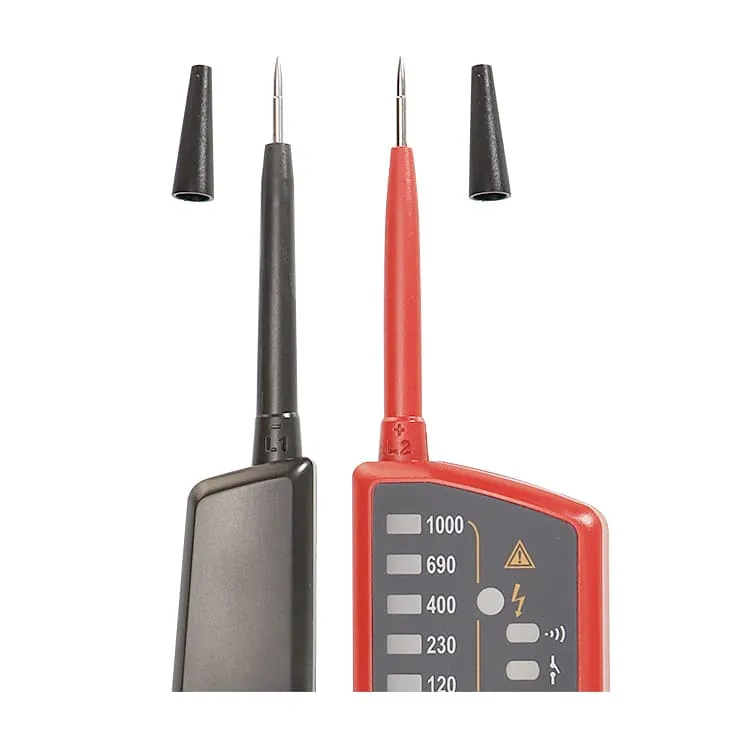

UNI-T 6 - 1000V AC/DC Voltage & Continuity Tester, UT18E
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 277 g
- Voltage Indication (AC/DC): 6 - 1000V
- Phase Rotation Test: 100Vac~400Vac (3 phase)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,313 (Incl. of all taxes)
₹3,655 + ₹658 GST (18%)
MRP was MRP ₹4,300
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
The UT18E is designed for testing AC/DC voltage (up to 1000V), three-phase voltage/phase sequence, continuity, and more. It continues the lightweight design style of UT18C, LED and LCD can clearly display the measurement results. It complies with CAT IV 600V, and the buzzer alarm function can remind users to maintain safe operation at all times, UT18E is a handy electrician tool.
Features:
- Phase sequence test
- Automatic polarity test
- Continuity test
- RCD function
- Auto power off
- Frequency measurement
- Low impedance measurement
- LED+LCD display at the same time
- Buzzer alarm
- Flashlight
- Certifications: CE, UKCA
Technical Data:
| Specifications | Range | Accuracy |
| Voltage (AC/DC) | 6V | ±(1.5%+1) |
| 12V | ±(1.5%+2) | |
| 24V | ±(1.5%+2) | |
| 50V | ±(1.5%+3) | |
| 120V | ±(1.5%+4) | |
| 230V | ±(1.5%+5) | |
| 400V | ±(1.5%+5) | |
| 690V | ±(1.5%+5) | |
| 1000V | ±(1.5%+5) |
Package Content:
- 1x Voltage and Continuity Tester
- Clamshell
- Insert card
- User manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage Indication (AC/DC) | 6 - 1000V |
|---|---|
| Phase Rotation Test | 100Vac~400Vac (3 phase) |
| Phase Rotation Test Frequency | 50Hz ~ 60Hz |
| Continuity Test | Resistance: 0 ~ 60k Ohm (Beeper & LED Light Indication) |
| RCD Test | Operating Voltage: 230V (50Hz ~ 400Hz) |
| Polarity Detection | Positive & Negative |
| Self-inspection | All LED or LCD |
| No Power Test | 100 ~ 1000V (Operating Voltage) |
| Voltage Indication | LED & LCD |
| Auto Range | Full Range |
| Over Voltage Protection | 1100V |
| Auto Standby | Standby current<10μA |
| Slient Mode & Backlight | Full Range |
| Low Battery Indication | Around 2.4V |
| LCD Display (Voltage) | 6V ~ 1000V |
| LCD Display (Frequency) | 40Hz ~ 400Hz ±(3%+5) |
| IP Rating | IP65 |
| Safety Rating | CAT III 1000V; CAT IV 600V |
| Product Color | Red & Black |
| Dimensions (mm) | 272 x 85 x 31 mm |
