Uniks 120V - 265V Multifunctional Installation Tester, Rapid Pro
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 110 g
- Data Logging: 64 sets
- RCD Test: AC , A , F
- Max Voltage input: 265V AC
- Harmonics/THD: Upto 49th Harmonics
- AC Voltage: 120V – 265V
- Frequency: 42Hz ~ 69 Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,611 (Incl. of all taxes)
₹18,314 + ₹3,297 GST (18%)
MRP was MRP ₹26,933
Save 32%
5 Business Days
1
90303100
Download Uniks CatalogueNot available
Highlights
The Metravi UNIKS Rapid PRO Multifunction Installation Tester, is compact and socket sized and performs tests and measurements related to verification of an electrical installation. It can be used as a TRMS Multimeter, a SOCKET TESTER and more, for electrical installations.
UNIKS Rapid Pro Multifunction Installation Tester is the size of a of a socket tester, but, all the required functions dedicated to verifying electrical safety, are available. Speed and precision are the main advantages.
In addition to being used as a TRMS multimeter and socket tester , it allows you to carry out electrical safety tests in accordance with the requirements of the CEI 64-8 standard and compliant with the IEC61557-3 and IEC61557-6 standards.
Features:
- Socket size, Pocket size, Innovative Meter
- Display: TFT 1.77” Full Colour
- Data Logging: 62 sets (automatic)
- Certification: CAT III 300V, IEC/EN61557-3, IEC/EN61557-6, IEC/EN61010-1, IEC/EN61010-2-030, IEC/EN61326-1
- RCD Test: AC , A , F
- Accuracy: ±(0.0% + 5%IΔn)
- Earth Loop Resistance: 0.01Ω – 9.99Ω / 10Ω – 99.9Ω / 100Ω – 999Ω
- Accuracy: ±(5.0% + 8 dgt), ±(5.0% + 8 dgt), ±(5.0% + 8 dgt)
- AC TRMS Voltage: 120V – 265V
- Accuracy: ±(1.0% + 3 dgt)
- Frequency: 42Hz – 69Hz
- Accuracy: ±(2.0% + 1 dgt)
- Voltage Harmonics: 0.8V – 256V
- Accuracy: ±(3.0% + 5 dgt)

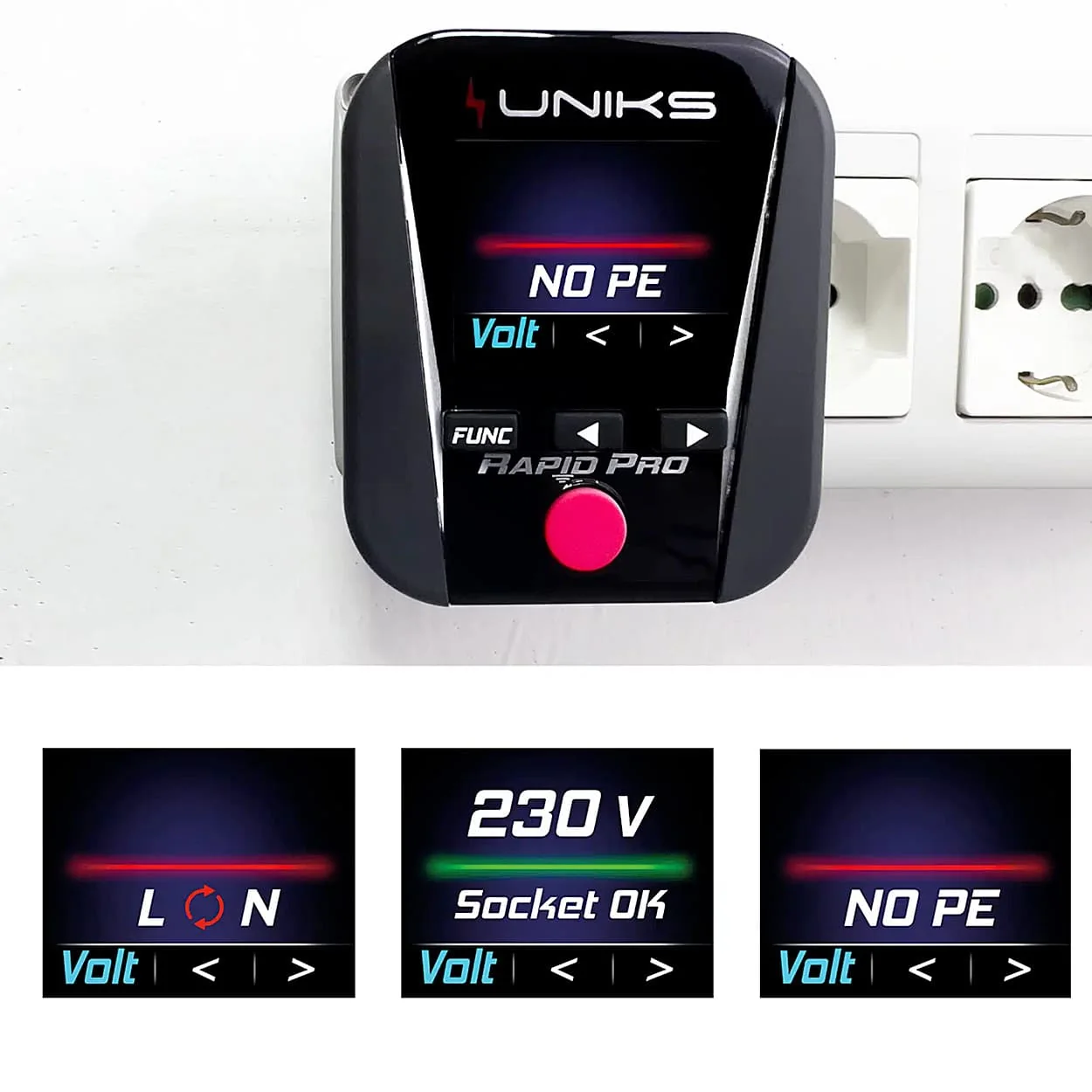

- Socket Polarity: Open Ground or Neutral,Phase/Neutral Phase/Ground reverse

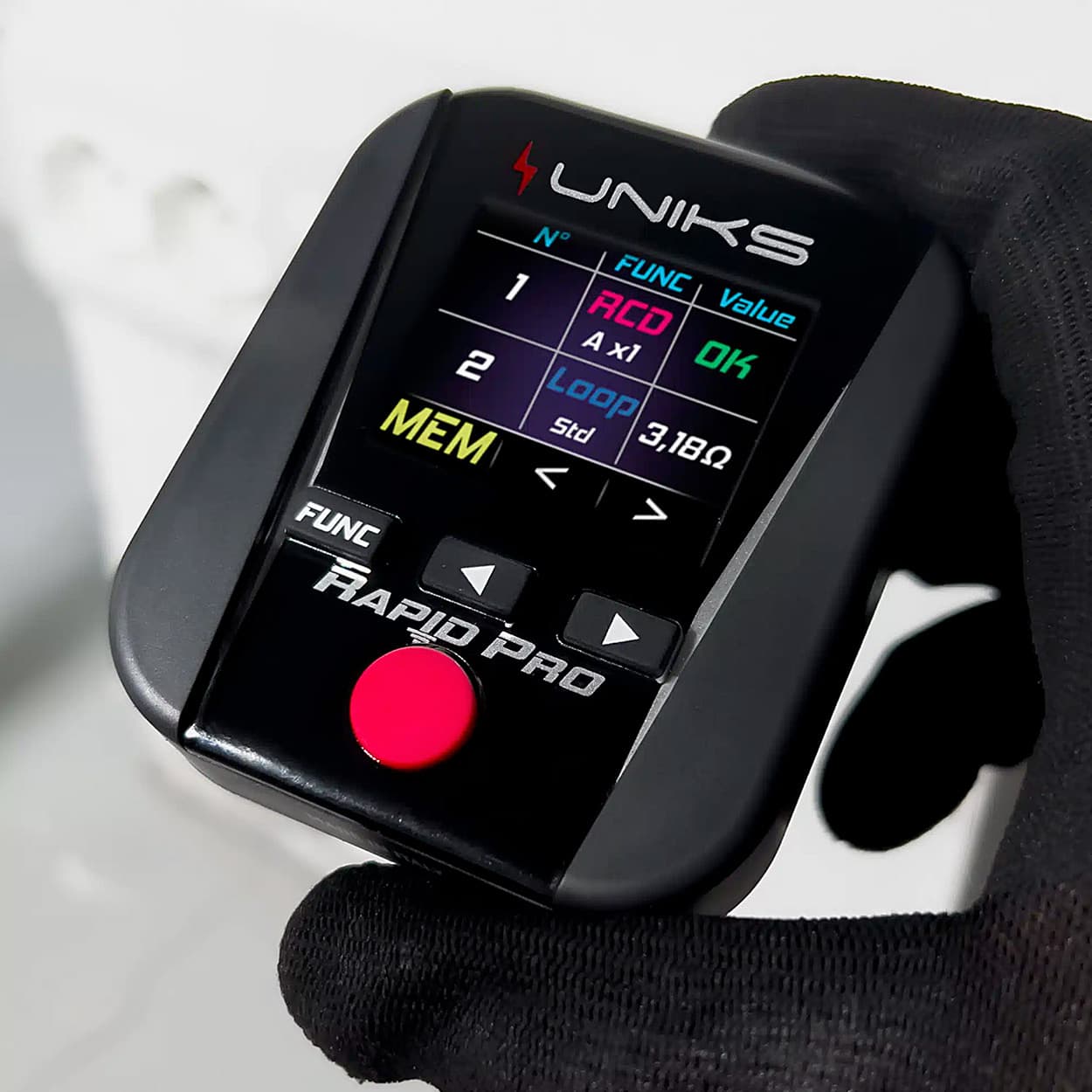

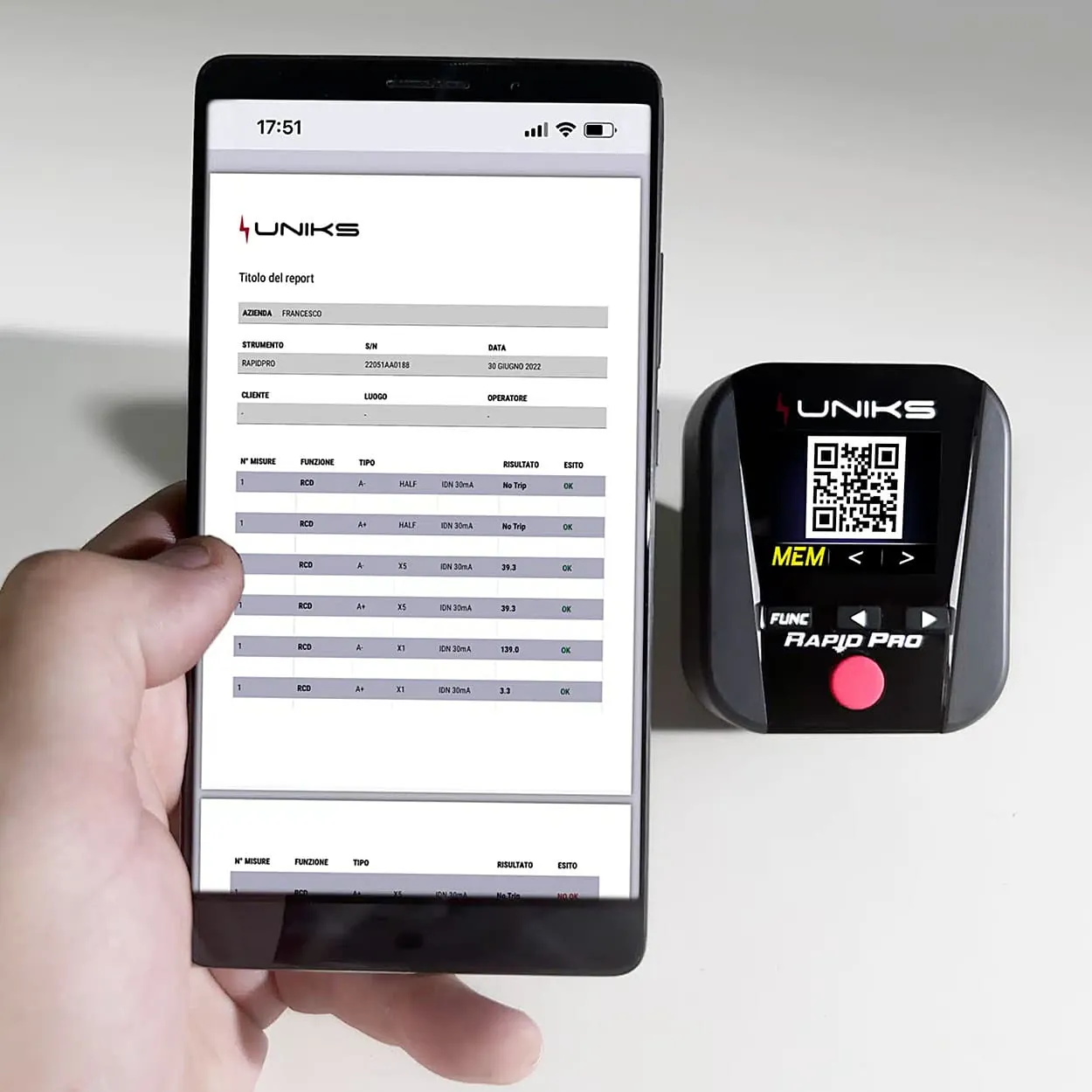

- Reporting: Built-in, transfer to Smartphone via QR Code Scan

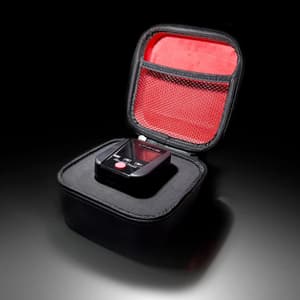

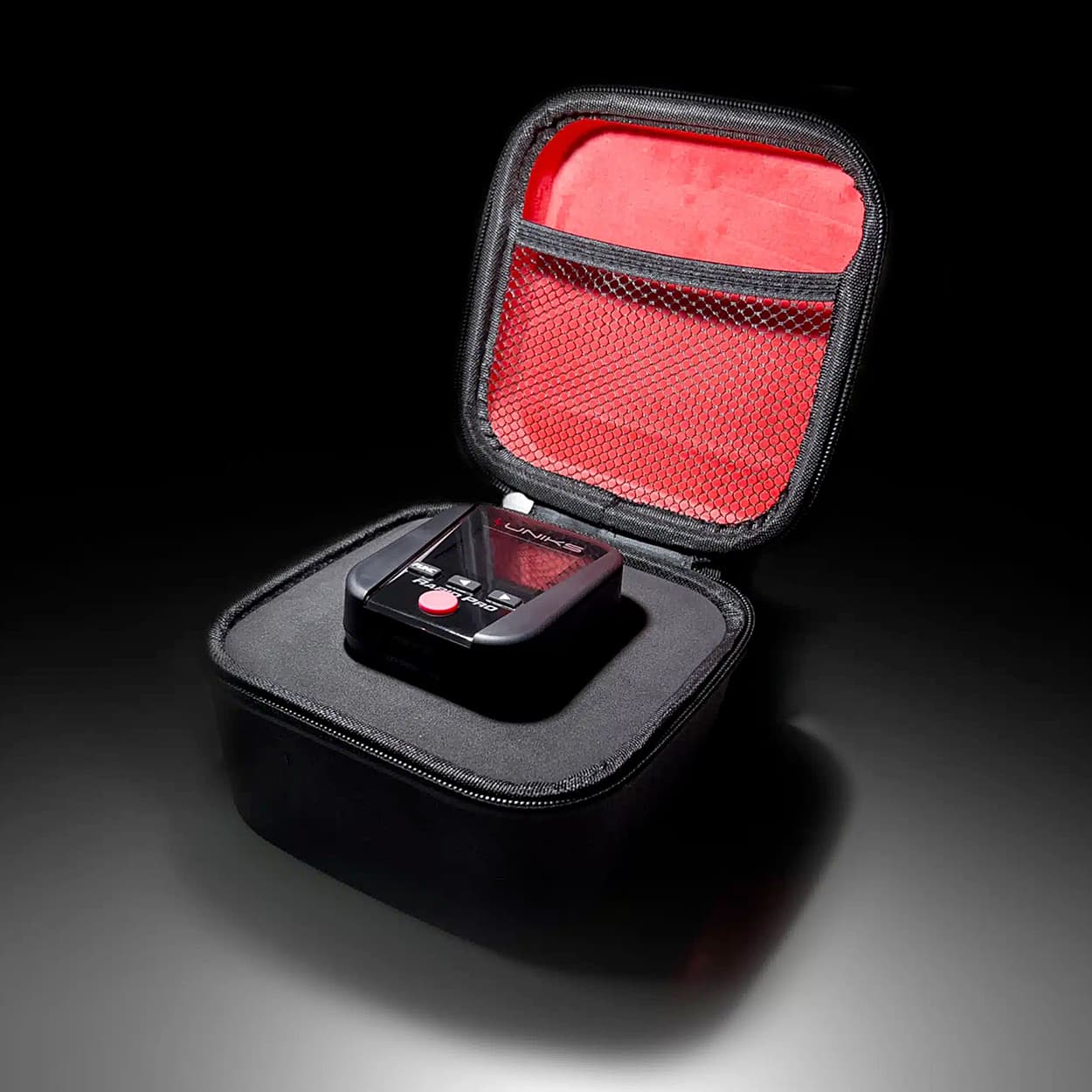

- Accessories: Three pin adaptor, User Manual, Carrying Case
It Test:
UNIKS Rapid Pro Multifunction Installation Tester is equipped with a 1.77″ TFT colour display , an internal memory for creating REPORTS and a SUPERCAP to power it even if disconnected from the network.

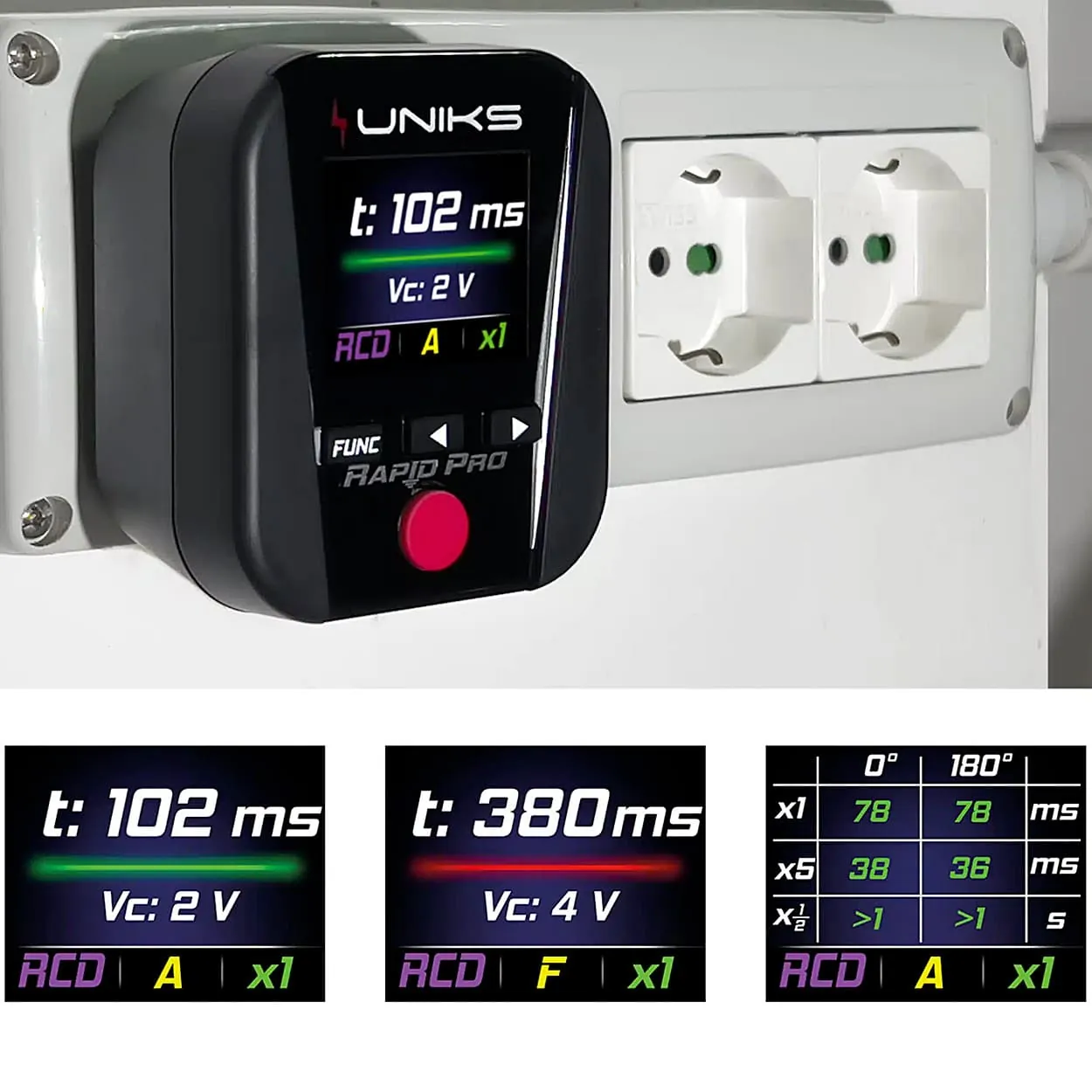

- RCD Type A, AC and F with 30mA test current
- AUTO RCD , x1, x5 x1/2 and 180°
- Vc Contact Voltage
- Global Earth Resistance in TT systems
- ZLoop L-Pe impedance in TN systems with indications of the prospective short-circuit current Isc

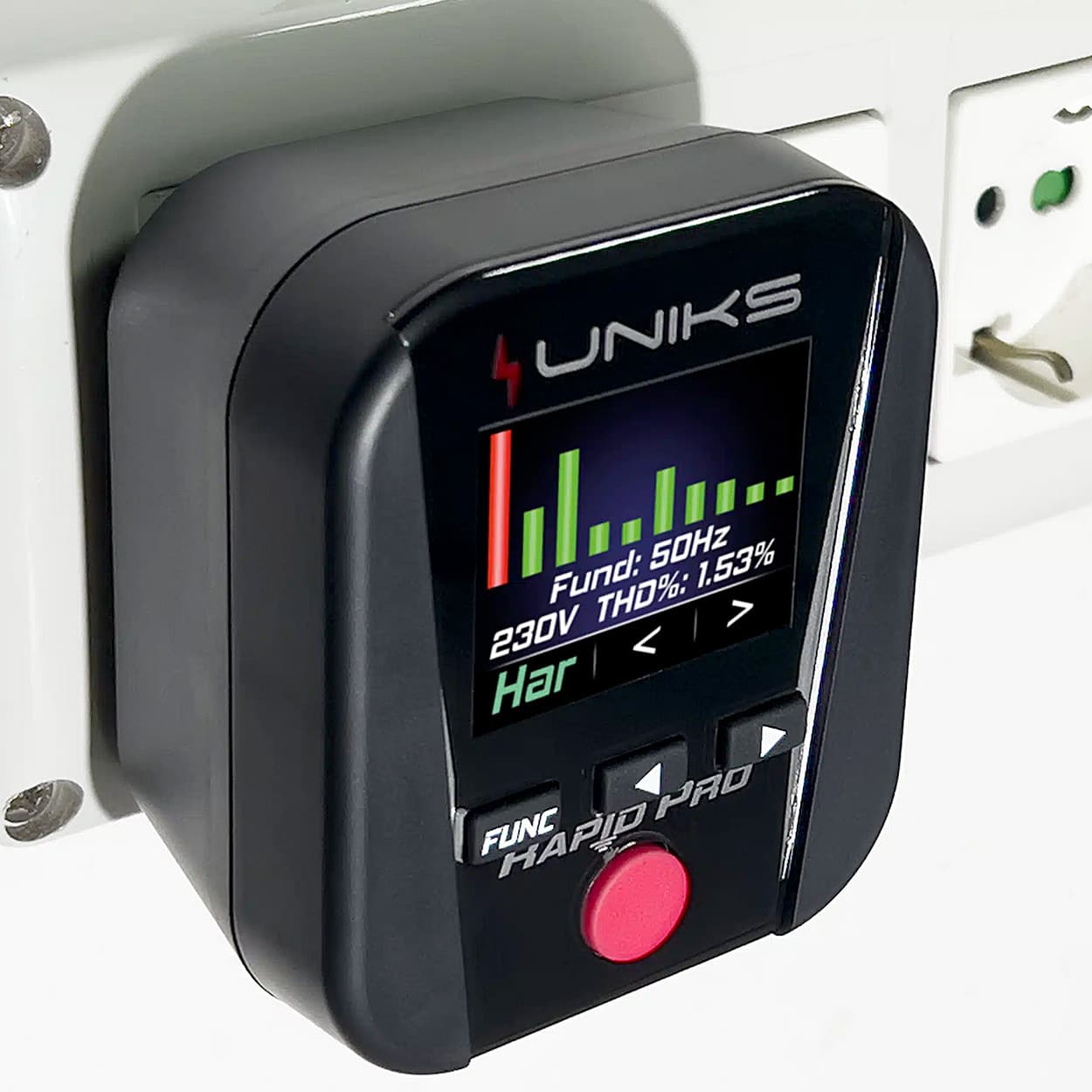

- Voltage harmonics end at the 49th
- THD% of mains voltage
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | TFT 1.77" Full Colour |
|---|---|
| Data Logging | 64 sets |
| RCD Test | AC , A , F |
| Max Voltage input | 265V AC |
| Measures Guidelines | EN61557-3 IEC, EN61557-6, IEC |
| Safety Guidelines | EN61010-1 IEC, EN61010-2-030, IEC |
| Memory Slot | 64 Sets |
| Size | 81.5 x 70 x 83 mm |
| RCD Test Current | In 30mA x1, x5 , x1/2 and AUTO |
| RCD Test Current Accuracy | ±5% |
| RCD Trip Time Accuracy | ±2ms |
| Loop Resistance/PSC | No trip 15mA |
| Harmonics/THD | Upto 49th Harmonics |
| Loop Resistance | 0.01 ~ 999 Ohms |
| Loop Resistance Accuracy | ±5% |
| AC Voltage | 120V – 265V |
| AC Voltage Resolution | 1V |
| Frequency | 42Hz ~ 69 Hz |
| Frequency Resolution | 0.1 Hz |
| Voltage Harmonics | 0.8V – 256V |
| Voltage Harmonics Accuracy | ±3% |
