Apex 12 x M10 Steel T-Slot Nuts (Pack of 10 Pcs), 923-2
Roll over the image to zoom in
Key Features
- Product Type: Square Nut
- Diameter (mm): M10
- Pack Quantity: 10 Pcs
- X Slot (mm): 12 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹522 (Incl. of all taxes)
₹442 + ₹80 GST (18%)
MRP was MRP ₹680
Save 35%
5 Business Days
10
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
As per IS 2015-1977 (In accordance with DIN 508 Standard)
Application:
- Useful of the machines having 'T' Slots, jig fixtures, hydraulic elements, assorted setting elements, and adopters.
- For use along with studs for work holding fixtures etc.
Construction:
- Class 8.8 (8G) R=80/90 kg/mm2.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Diameter (mm) | M10 |
|---|---|
| Pack Quantity | 10 Pcs |
| X Slot (mm) | 12 mm |

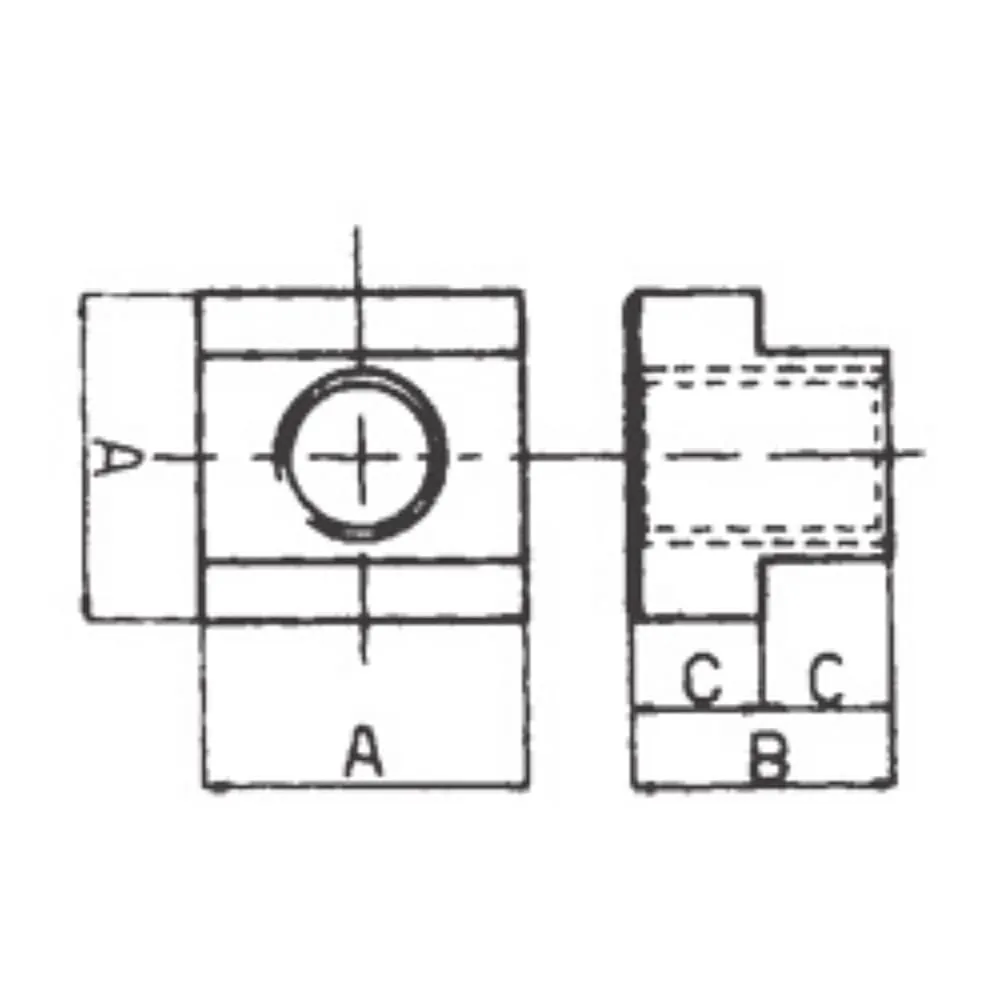

| A (mm) | 18 mm |
| B (mm) | 14 mm |
| C (mm) | 7 mm |
| Grade | 8.8 |
| Finish | Burnished |
| Material | Hardened & Tempered Steel |
