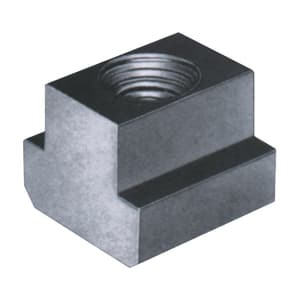

Apex 28 x M20 Steel T-Slot Nuts (Pack of 5 Pcs), 923-7A
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,565 (Incl. of all taxes)
₹1,326 + ₹239 GST (18%)
MRP was MRP ₹2,040
Save 35%
5 Business Days
5
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
As per IS 2015-1977 (In accordance with DIN 508 Standard)
Application:
- Useful of the machines having 'T' Slots, jig fixtures, hydraulic elements, assorted setting elements, and adopters.
- For use along with studs for work holding fixtures etc.
Construction:
- Class 8.8 (8G) R=80/90 kg/mm2.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications

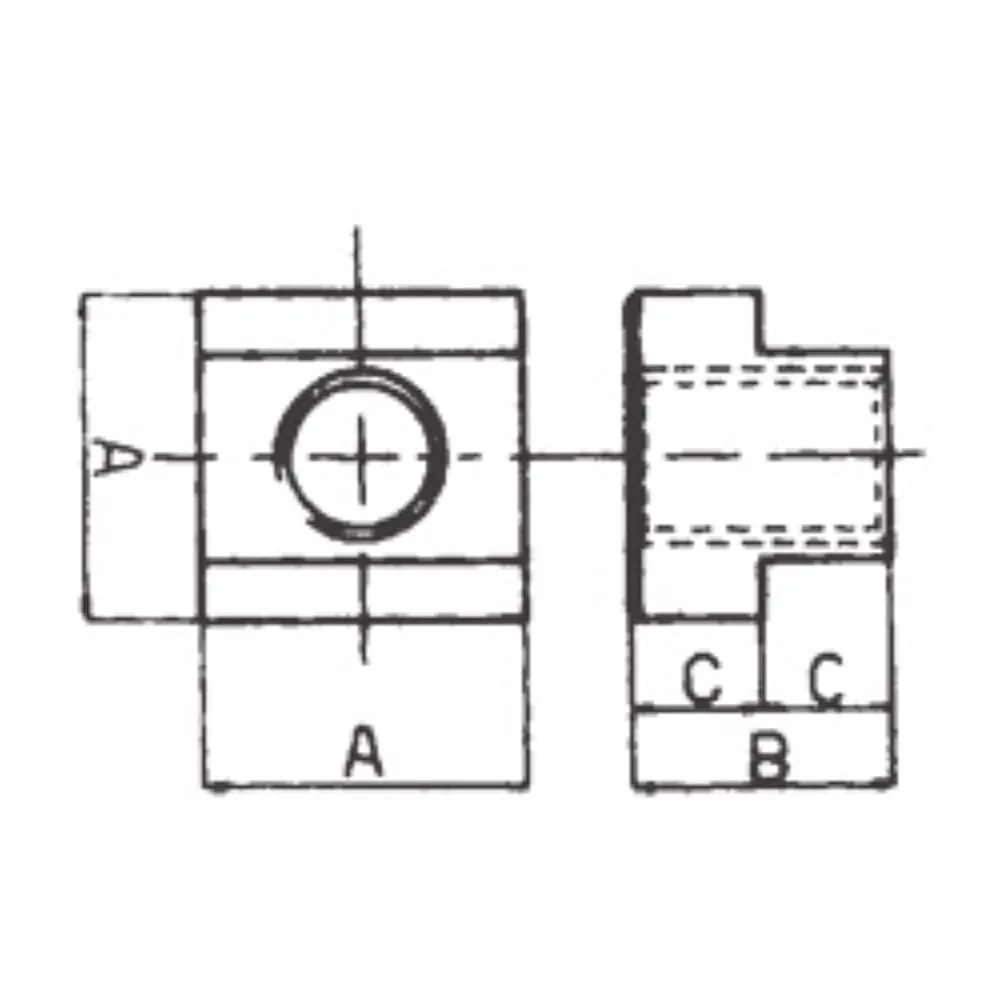

| Diameter (mm) | M20 |
|---|---|
| Pack Quantity | 5 Pcs |
| X Slot (mm) | 28 mm |
| A (mm) | 44 mm |
| B (mm) | 36 mm |
| C (mm) | 18 mm |
| Finish | Burnished |
| Material | Hardened & Tempered Steel |
